30  April 2015  IMO_374_EN_v1 Roto Patio Fold Subject to change.

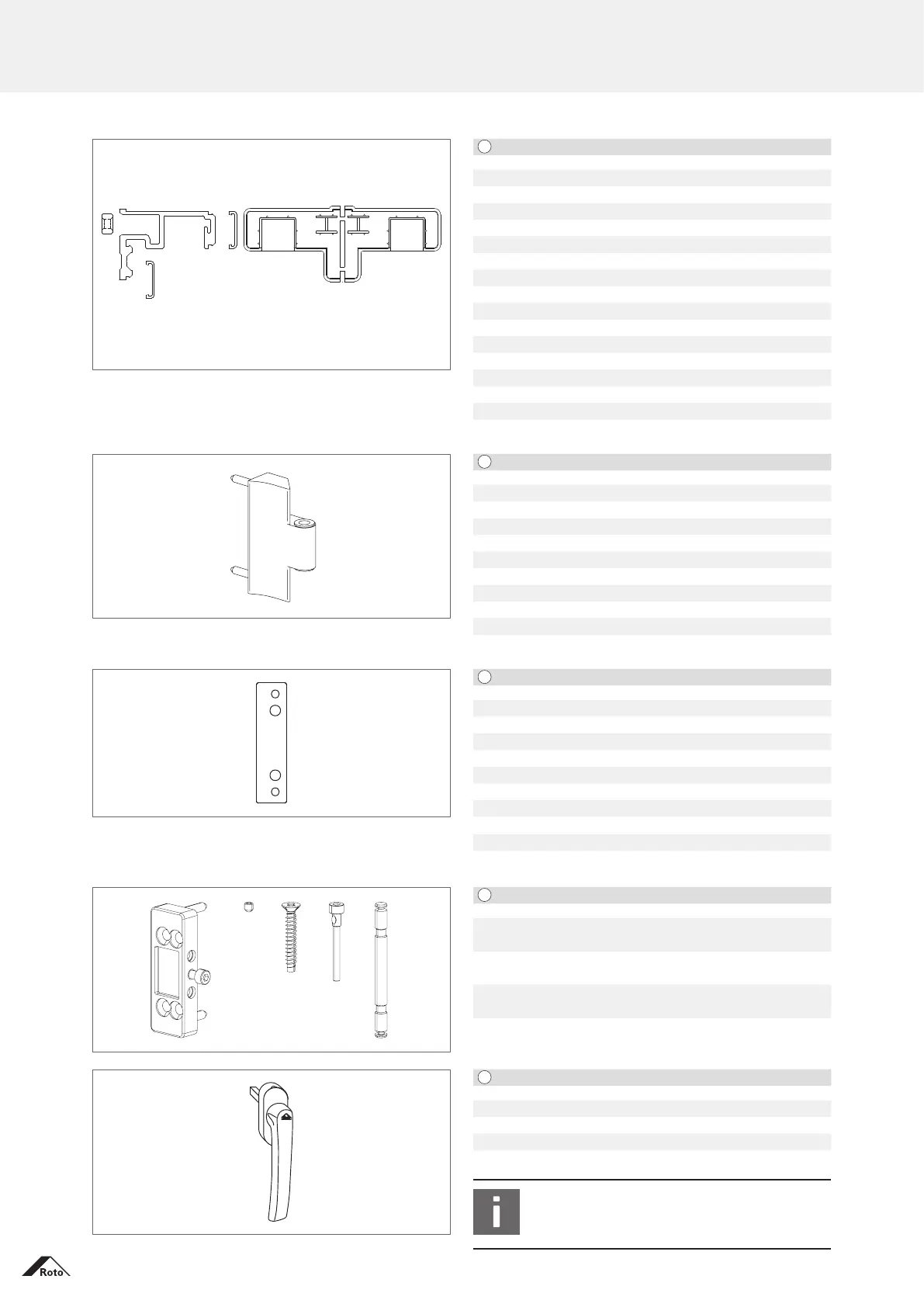

Hardware overview
Parts list
8x
5
Guide track incl. accessories
Length Colour PQ Material no.
3000mm White R07.2 1 312797
Medium bronze R05.3 1 312802
EV1 Silver R01.1 1 312807
Black brown R04.4 1 490442
4000mm White R07.2 1 312798
Medium bronze R05.3 1 312803
EV1 Silver R01.1 1 312808
Black brown R04.4 1 490441
5000mm White R07.2 1 312799
Medium bronze R05.3 1 312804
EV1 Silver R01.1 1 312809
Black brown R04.4 1 765178
6000mm White R07.2 1 312800
Medium bronze R05.3 1 312805
EV1 Silver R01.1 1 312810
Black brown R04.4 1 490440
6
Frame hinge-bearing
Version Colour PQ Material no.
7mm | pin 25mm White R07.2 3 734522
Medium bronze R05.3 3 734523
Silver R01.1 3 734524
Black brown R04.4 3 739899
Unpainted unc. 3 739906
10mm | pin 25mm White R07.2 3 734525
Medium bronze R05.3 3 734526
Silver R01.1 3 734527
Black brown R04.4 3 739900
Unpainted unc. 3 734528
7
Packers frame hinge-bearing
thickness Colour PQ Material no.
1mm White R07.2 3 312831
Medium bronze R05.3 3 312832
Silver R01.1 3 312833
Black brown R04.4 3 490461
Unpainted unc. 3 337802
2mm White R07.2 3 312834
Medium bronze R05.3 3 312835
Silver R01.1 3 312836
Black brown R04.4 3 490460
Unpainted unc. 3 337803
6x 3x
12x
3x3x
8
Hinge-fixing insert
Description PQ Material no.
A Screwing axis 40/50mm, 50mm screws:
pin 25mm 3 734492
Screwing axis 40/50mm, 50mm screws:
pin 40mm 3 765866
B Screwing axis 44/54mm, 50mm screws:
pin 40mm 3 733493
11
Roto Line flat handle, 10mm lugs, 35mm pin length
Version Colour PQ Material no.
White R07.2 1 336110
Medium bronze R05.3 1 336111
Silver R01.1 1 336112
Black brown R04.4 1 490462
NOTE!
Depending on the design, further handles from
the Roto range are possible.
