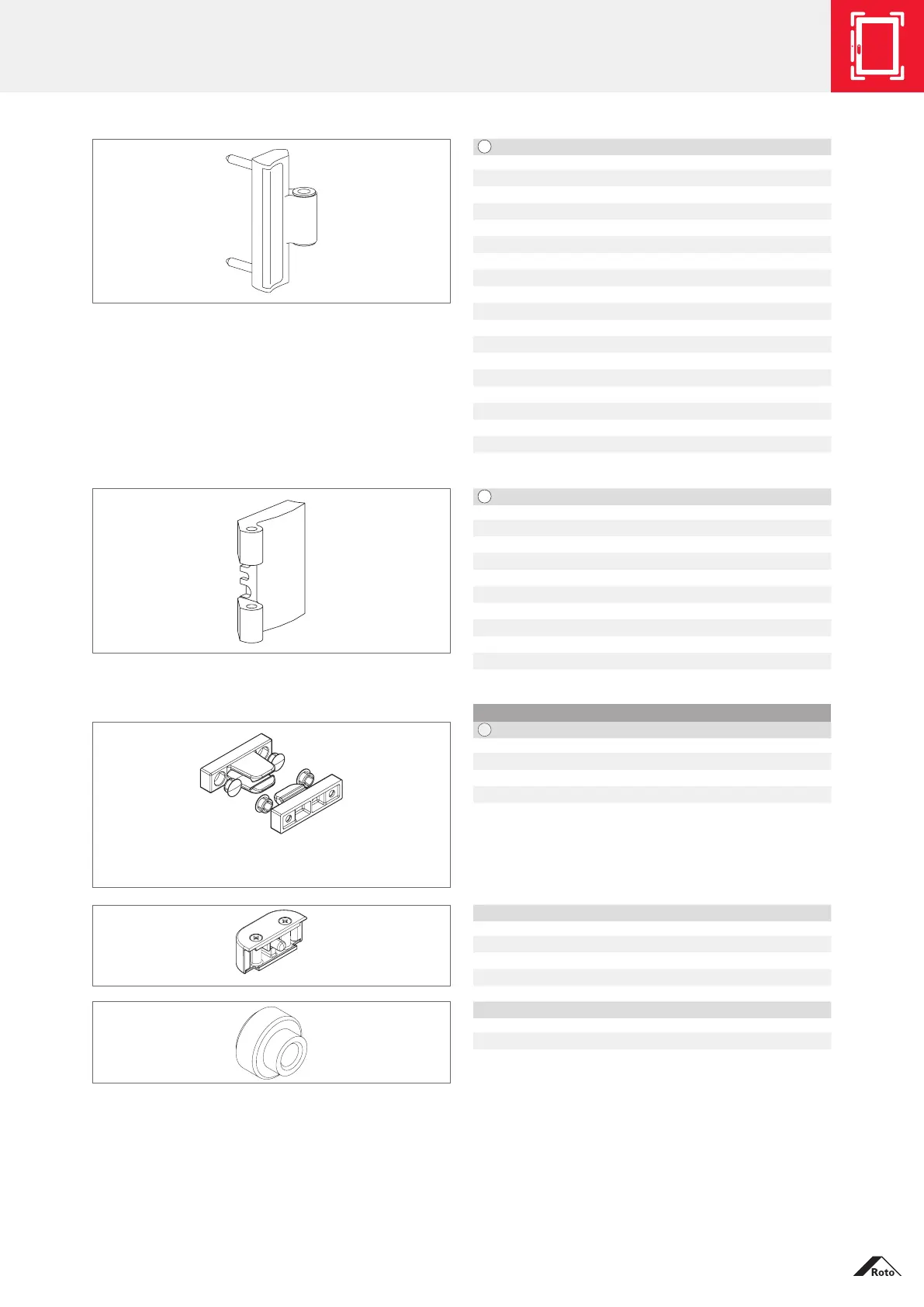

Hardware overview
Parts list
9
Sash hinge-bearing
Version Colour PQ Material no.
20mm | pin 25mm White R07.2 3 734361
Medium bronze R05.3 3 734362
Silver R01.1 3 734363
Black brown R04.4 3 738915
Unpainted unc. 3 734364
30mm | pin 25mm White R07.2 3 734365
Medium bronze R05.3 3 734366
Silver R01.1 3 734367
Black brown R04.4 3 738914
Unpainted unc. 3 734368
20mm | pin 40mm White R07.2 3 734369
Medium bronze R05.3 3 734310
Silver R01.1 3 734370
Unpainted unc. 3 734371
30mm | pin 40mm White R07.2 3 734372
Medium bronze R05.3 3 734373
Silver R01.1 3 734374
Unpainted unc. 3 734375
10
Hinge
Version Colour PQ Material no.
40mm White R07.2 3 733366
Medium bronze R05.3 3 733367
Silver R01.1 3 733368
Black brown R04.4 3 738894
Unpainted unc. 3 733372
50mm White R07.2 3 733369
Medium bronze R05.3 3 733370
Silver R01.1 3 733371
Black brown R04.4 3 738905
Unpainted unc. 3 733373
Accessories
12
Set sash retaining device
Version Colour PQ Material no.
White R07.2 1 340208
Black R06.2 1 340211
Silver R01.1 1 375241
Sash stop
Version Colour PQ Material no.
White R07.2 1 444807
Medium bronze R05.3 1 444808
Silver R01.1 1 444809
Roll-support
Version PQ Material no.
Diameter 12mm 100 632002
