Installation

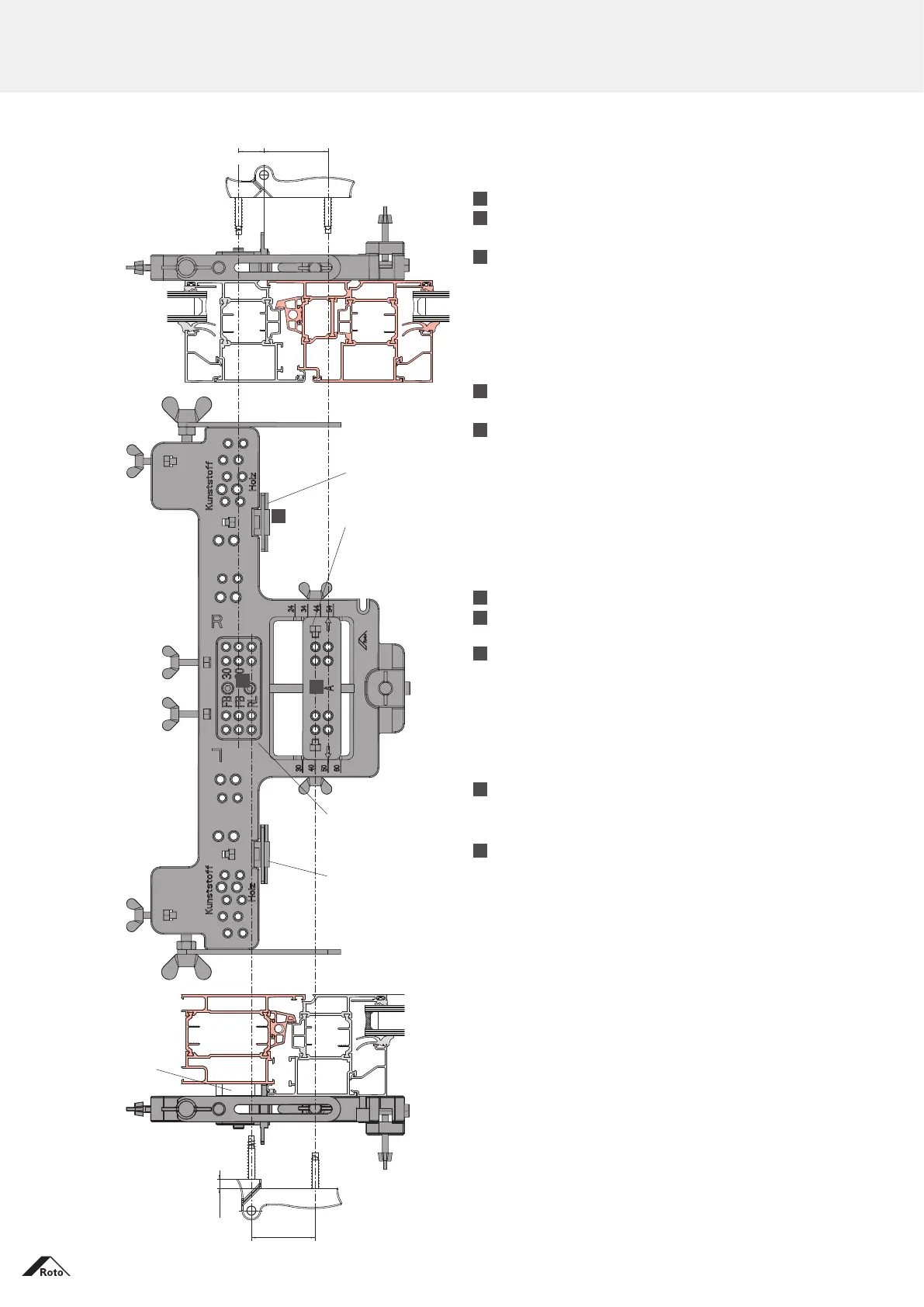

Drilling and routing dimensions
Predrilling sash/frame hinges
bzw. 30
20
40
20
50
0
12
7 bzw. 10
7 bzw. 10
50
50
Rahmenband 7/50 bzw. 10/50 Flügelband 20/40 bzw. 30/40
Rahmenband 7/50 bzw. 10/50 Flügelband 20/50 bzw. 30/50
12 mm Versatz zur Schattenfuge
0 mm Versatz zur Schattenfuge
Rahmenband 7/50 bzw. 10/50
Rahmenband 7/50 bzw. 10/50
Flügelband 20/40 bzw. 30/40
Flügelband 20/50 bzw. 30/50
If necessary, shorten
buffer-stop to
shadow-gap depth.
Shorten buffer-stop
tooverlap height.
2.
1.
Sash hinge 20/50
Frame hinge 16/50
and/or 21/50
Hinge
Hinge
Sash hinge-bearing
Frame hinge-bearing
Drilling insert frame/
sash hinge-bearing
Spacer for
shadow gap
Adjustment insert
hinge fixing
Spacer for
shadow gap
If necessary, use
second run-up
block for fitting
on the frame.
3.
7 or 10
50
20 50
and/or 30
Installation of sash hinge 20/50 or 30/50
Drilling-jig adjustments
1.
Spacers for shadow gap profile related
2.
Adjustment insert hinge fixing Arrow points
to 50
3.
Drilling insert frame/sash
hinge-bearing
If necessary, use second run-up
blockfor fitting on the frame.
SW20
or SW30
Drill
4.
Fold together the folding sash
according to the diagram.
5.
Drill with Ø5mm drill
 in adjustment insert hinge fixing
 in drilling insert frame/sash
hinge-bearing
A
SW20
and/or SW30
Installation of frame hinge 16/50 and/or 21/50
Drilling-jig adjustments
1.
Spacers for shadow gap 4mm
2.
Adjustment insert hinge fixing Arrow points
to 50
3.
Drilling insert frame/sash
hinge-bearing
If necessary, use second run-up
blockfor fitting on the frame.
F.h-b
Drill
4.
Place the frame side of the folding
sash on the frame and align
(observe the chamber dimension).
5.
Drill with Ø5mm drill
 in adjustment insert hinge fixing
 in drilling insert frame/sash
hinge-bearing
B
F.h-b
