10.6 STAKE OUT ROADS
To stake out alignment, the alignment type should be defined first. 2 methods of defining horizontal
alignment are available: installing in the computer via the data communication software or inputting
manually in program “Road”.
The vertical alignment data is unnecessarily to be defined, unless it is required to compute dig and fill. The
method to define is similar to that of horizontal alignment.

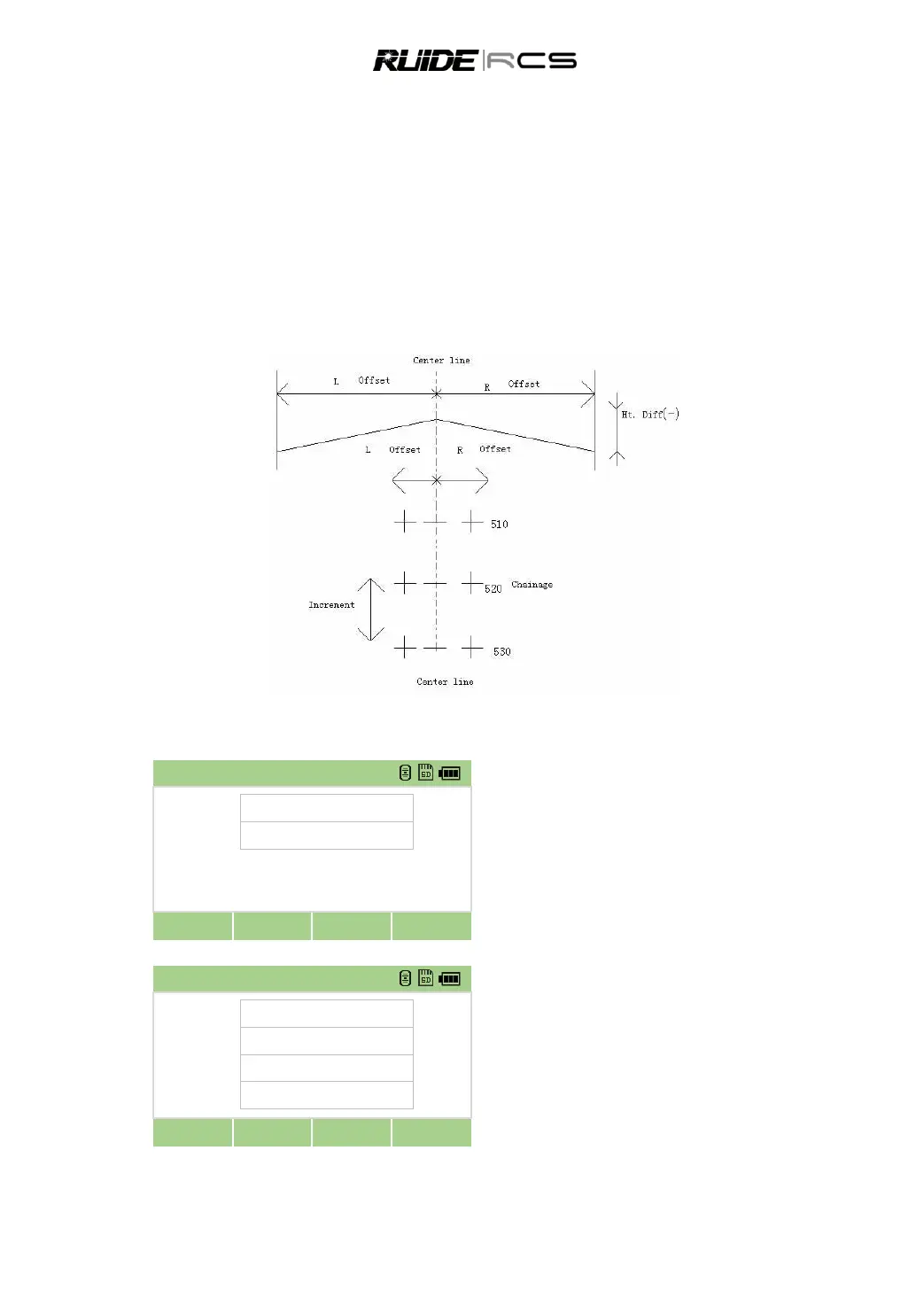

Rules of alignment stake-out data:
Offset left: Horizontal distance between the left chainage and central line.
right: Horizontal distance between the right chainage and central line.
Vertical Difference Left (right): vertical difference between left (right) chainage and the central line point.
In the process of stake-out, user should first stake out points on the central line, then the featured points
on both sides.
 In Roads menu select “3. Road SO”.
 Input the start chainage and chainage
increment.
 Press [Next]
 Input the chainage number, the left and right
offset (Diff), and height difference (VD) and target
height.
+PEG：The key is used to increase the
chainage.
-PEG：The key is used to increase the
chainage.
Road SO 123
S stake
100.000
m
Spacing
20.000
m
Back
Next
Road SO 123
StakeNo
Diff
VD
m
R.HT
m
Back
+PEG
-PEG
Next
