Web-based Configuration Guide 1 Network-Wide Monitoring
22
2.4 Supporting Traffic Monitoring
Traffic monitoring can be carried out based on ports, users, and applications. The real-time or historical uplink
traffic, downlink traffic, and number of sessions can be displayed.
2.4.1 Viewing Real-time Traffic

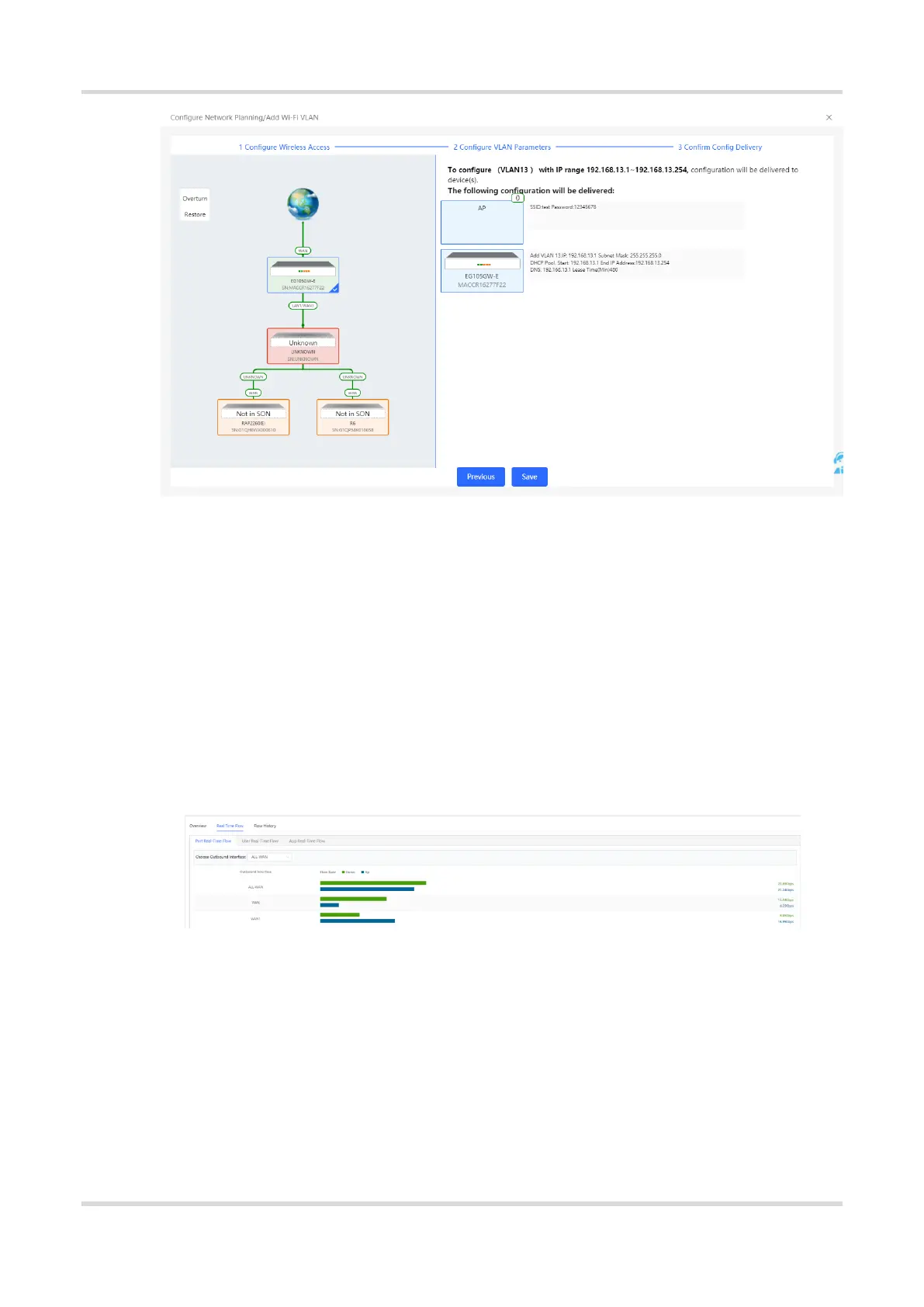

Choose Local Device > Overview > Real Time Flow.
(1) View real-time traffic of a port.
a Click the Port Real-Time Flow tab.
b Set Choose Outbound Interface.
Set Choose Outbound Interface to a port or ALL-WAN. You can view the uplink or downlink traffic of
a port or the system.
c View traffic in the last one hour.
Choose a port or ALL-WAN from the Choose Outbound Interface drop-down list and view the traffic
and sessions (including sessions of an original WAN port after LAN/WAN switching) in the last one hour.
