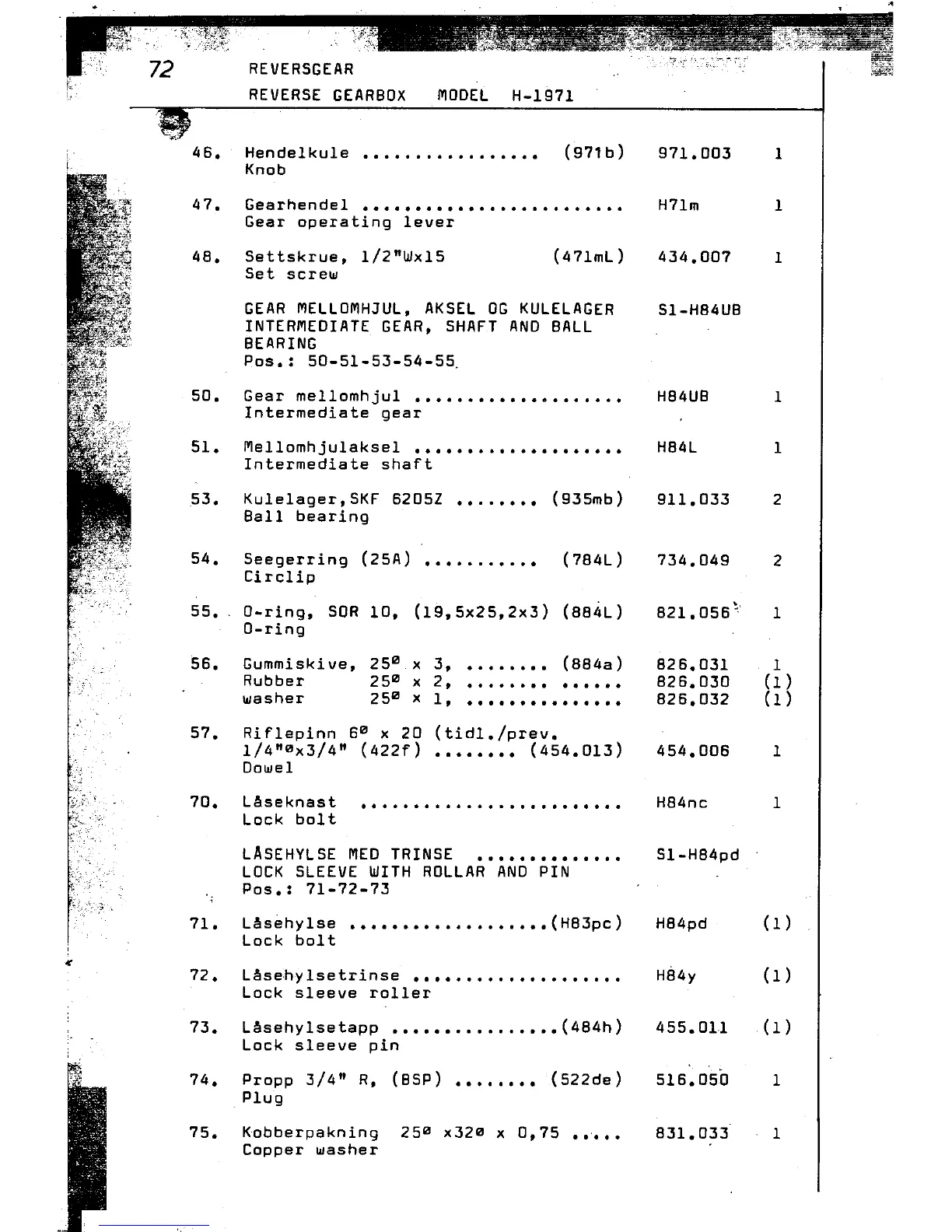

H-I971
; 46. Hendelkule (971b) 971.003 1
I Knob
47. GearhendeI H7Im 1
Gear operating lever
48. Settskrue, I/2"WxI5 (47ImL) 434.007 1
Set screw
GE AR MELLOMHJUL, AKSEL DG KULELAGER SI-H84UB
INTERMEOIATE GEAR, SHAFT ANO BALL
BEARING
Pos.: 50-51-53-54-55.
50. Gear melIomhjuI HB4UB 1
Intermediate gear
51. Mellomhjulaksel H84L 1
Intermediate shaft
53. Kulelager,SKF 6205Z (935mb) 911.033 2
BalI bearing
54. 5eegerring (25A) (784L) 734.049 2
Circlip
55. O-ring, SOR 10, (19,5x25,2x3) (884L) 821.056~ 1
O-ring
56. Gummiskive, 250 x 3, (884a) 826.031 1
Rubber 250 x 2, 826.030 (1)
washer 250 x 1, 826.032 (1)
57. Riflepinn 60 x 20 (tidl./prev.
1/4"0x3/4" (422f) (454.013) 454.006 1
Dowel
70. LAseknast H84nc 1
Lock bolt
LASEHYLSE MEO TRINSE SI-H84pd
LOCK SLEEVE WITH ROLLAR AND PIN
Pos.: 71-72-73
71. LAsehylse (H83pc) H84pd (1)
Lock bolt
..
72. LAsehylsetrinse H84y (1)
Lock sleeve roller
73. LAsehylsetapp (484h) 455.011 (1)
Lock sleeve pin
74. Propp 3/4" R, (BSP) (522de) 516.050 1
Plug
75. Kobberpakning 250 x320 x 0,75 831.033 1
Copper washer
