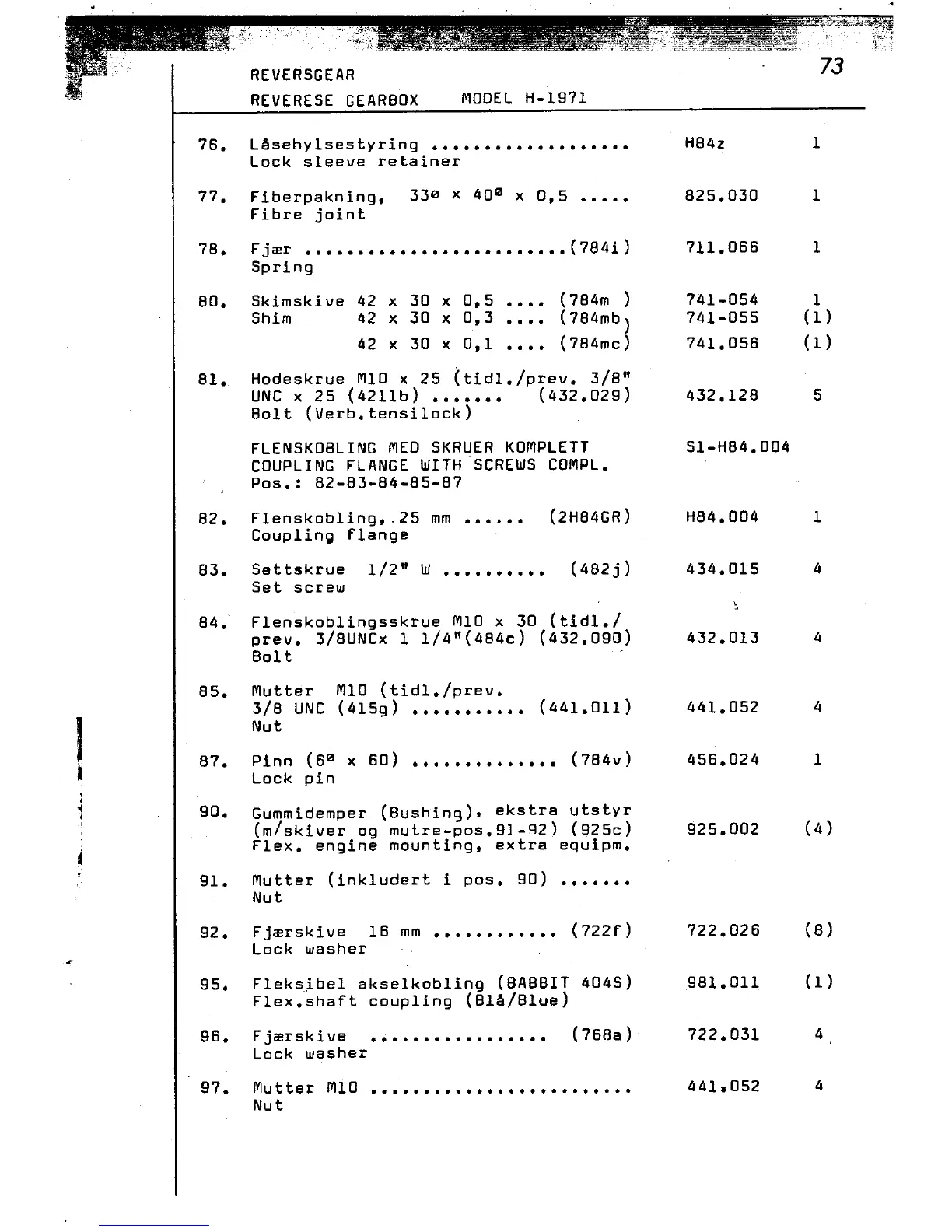

REVERSGEAR
REVERESE GEARBOX MODEL H-1971
76. Làsehy1sestyring HB4z 1
Lock sleeve retainer
77. Fiberpakning, 33° x 40° X 0,5 825.030 1
Fibre joint
78. Fj~r (784i) 711.066 1
Spring
80. Skimskive 42 x 30 x 0,5 (784m ) 741-054 1
Shim 42 x 30 x 0,3 (784mb) 741-055 (1)
42 x 30 x 0,1 (784mc) 741.056 (1)
81. Hodeskrue MlO x 25 (tid1./prev. 3/8"
UNC x 25 (4211b) (432.029) 432.128 5
Bolt (Verb.tensi10ck)
FLENSKOBLING MEO SKRUER KOMPLETT Sl-H84.004
COUPLING FLANGE WITH SCREWS COMPL.
Pos.: 82-83-84-85-87
82. F1enskob1ing, ,25 mm (2H84GR) H84.004 1
Coup1ing f1ange
83. Settskrue 1/2" W (482j) 434.015 4
Set screllJ
,
84. F1enskob1ingsskrue MlO x 30 (tid1./
prev. 3/8UNCx 1 1/4"(484c) (432.090) 432.013 4
Bolt
85. Mutter MlO (tid1./prev.
3/8 UNC (415g) (441.011) 441.052 4
J Nut
. 87. Pinn (6° x 60) (784v) 456.024 1
Lock pin
,
i 90. Gummidemper (Bushing), ekstra utstyr
(m/skiver og mutre-pos.91.-Q2) ($25c) 925.002 (4)
j F1ex. engine mounting, extra equipm.
. 91. Mutter (ink1udert i pos. 90) Nut
92. Fj~rskive 16 mm (722f) 722.026 (8)
Lock lIJasher
~
95. F1eks~bel akse1kob1ing (BABBIT 4045) 981.011 (1)
F1ex.shaft coup1ing (B1à/B1ue)
96. Fj~rskive (76Ra) 722.031 4
Lock lIJasher
97. Mutter MlO 441.052 4
Nut
