SAIC MG 6 - Electronic Air Conditioning Controls

AirConditioning
ElectronicAirConditioningControls
*
ConsolePanel
T E M P
3
4
56
2
3
1
8 7

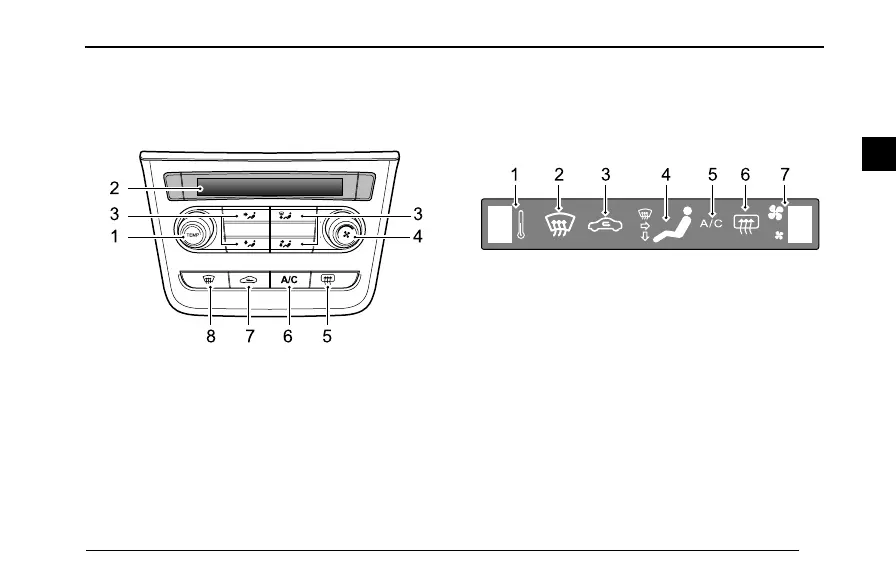

1T emperaturecontrol
2Airconditioningdisplay
3Airdistributionsettingcontrols
4
Blowerspeedcontrol
5Heatedrearscreen
6A/Con/off
7
Airrecirculation
8Defrost/Demist
AirConditioningDisplay
A/ C
21 3 4 5 6 7
1T emperatureselected
2Defrost/Demiston
3Recirculationon
4Airdistributionsettingselected
5AirConditioningon
6Heatedrearscreenon
7Blowerspeedselected
