SECTION III USE
Transmission speed selection
Once the engine has started, select the speed range among the 3
available with the special lever and then choosing the desired speed.
Selection of forward speed depends greatly on the soil type, the
implement used, work being performed, etc.
If you wish to use the creeper range, engage the creeper selector lever before se-
lecting the required gear. The low gear range must also be selected before you can
engage the creeper range.
To select a desired speed range, fully declutch and, once the tractor is
stationary, act on the speed range lever (M - L - H).
In any case, always avoid using a gear which overloads the engine.

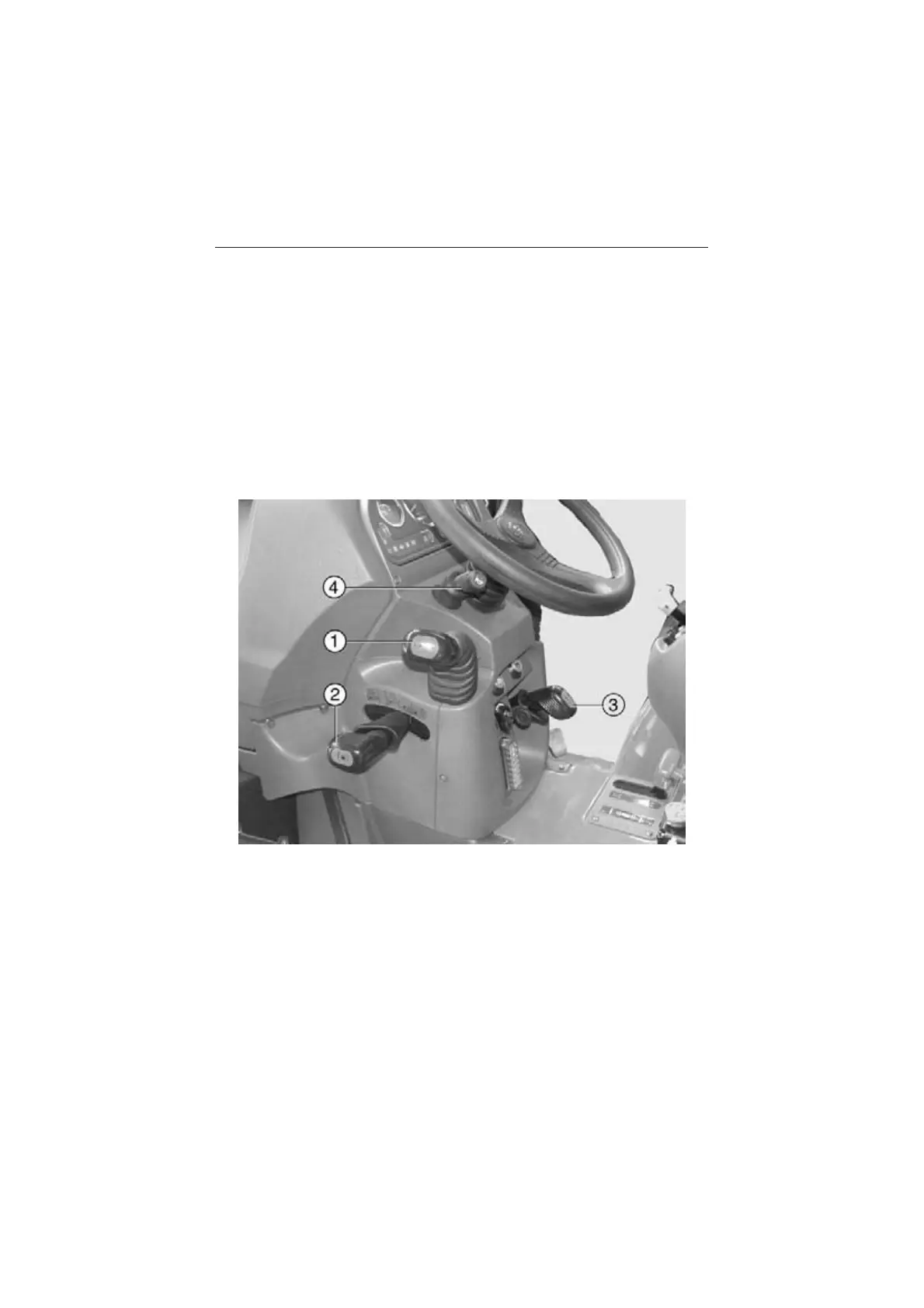

Gear levers
1 - Shuttle lever 2 - P.T.O. speed selector
3 - P.T.O. clutch lever 4 - Lights switch
To check in a simple way if the engine is overloaded, the following test is
suggested: keep the accelerator at 1/4th of its travel, then suddenly
accelerate to maximum speed.
If the engine revs do not increase, but on the contrary decrease, this
means the engine is overloaded. In this case, shift into a lower gear.
36
