SECTION III USE

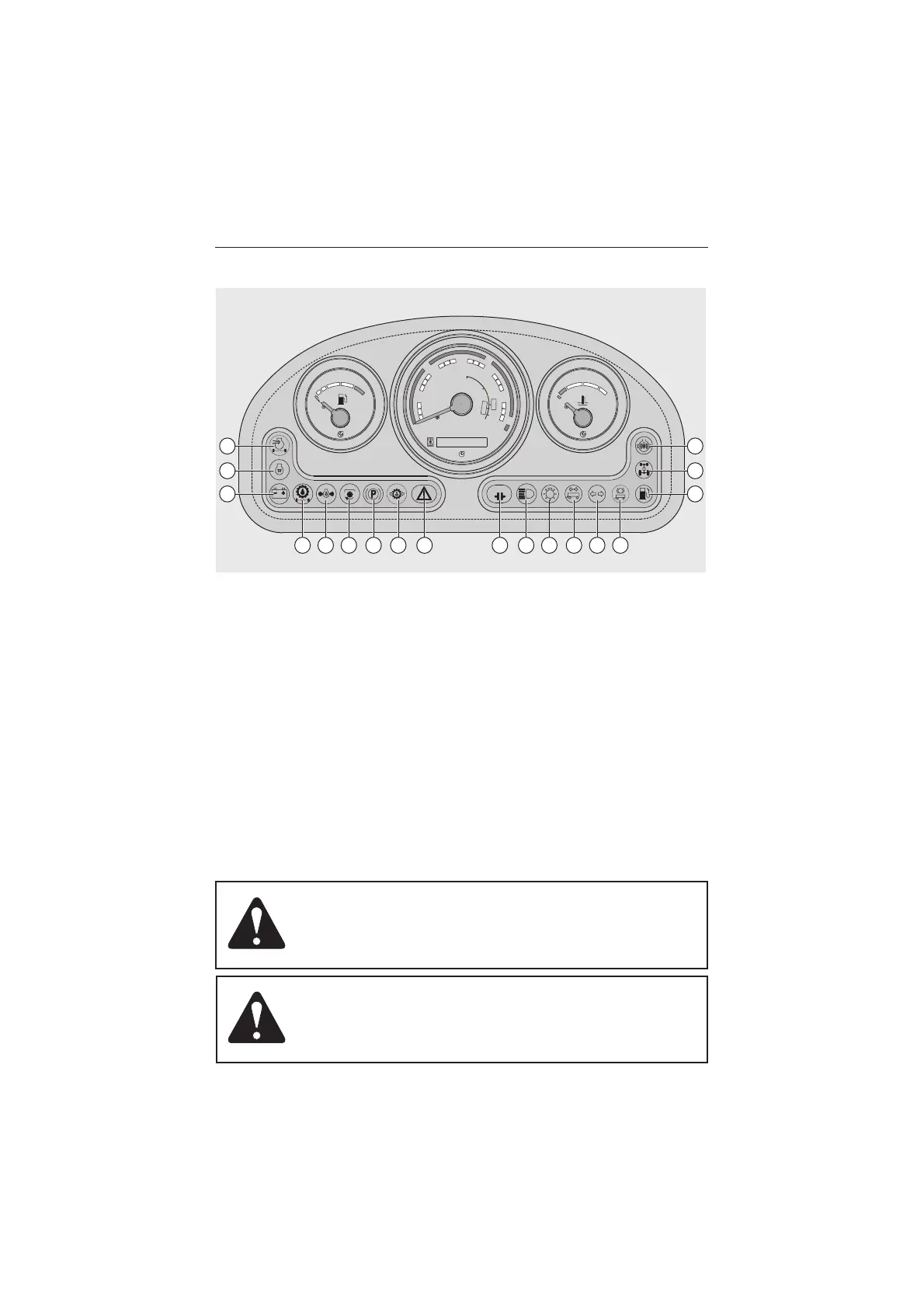

Pilot lights'
1 - Air filter warning pilot lamp - RED
ON - Air filter restricted, clean or replace it.
2- Cold start activation pilot lamp - ORANGE
Light comes on below 10°C (50°F) - OFF - Engine can be started.
3 - Alternator charge pilot lamp - RED
ON - Key on position No. 1 OFF - After engine starting
ON DURING ENGINE RUNNING: make sure the alternator drive
belt is not broken; otherwise, consult one of our Authorized Service Centres
4 - Hydraulic services oil filter warning pilot lamp - RED
ON - Replace oil filters.
5 - Engine oil pressure pilot lamp - RED
ON - Key on position No. 1 OFF - After engine starting.
ON WHEN ENGINE IS RUNNING: switch the engine off immediately and contact
your Service Centre.
13
0
1/2
4/4
km/h
PTO
PTO
RPM x 100
600
800
1000
600
500
540
25
30
30
10
10
5
20
20
15
80
12040
C
1
2
3
18
17
16
4 5 6 7 8 9
10 11 12 13 14 15
WARNING: IF THE TRACTOR BEGINS TO TURNOVER, HOLD ON TO
THE STEERING WHEEL. DO NOT ATTEMPT TO JUMP CLEAR.
WARNING: IF THE OIL PRESSURE WARNING LIGHT STAYS ON
WHEN THE ENGINE IS RUNNING, SWITCH OFF THE ENGINE IMMEDI-
ATELY.
