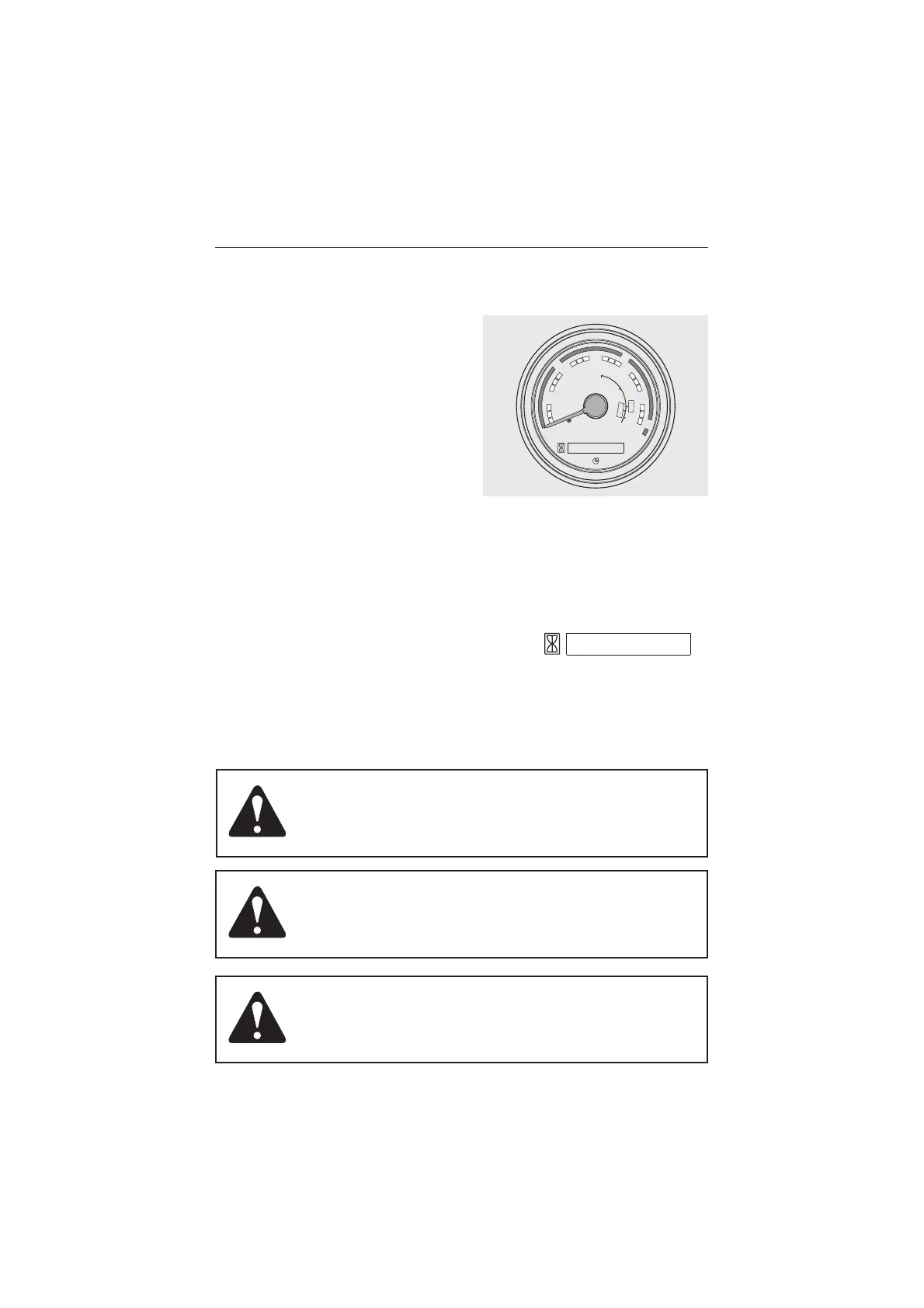

SECTION III USE
Tachometer
The outer scale (blue background)
shows tractor ground speed with the
highest gear (4aH) engaged.
The middle scale (white
background) shows engine speed in
rpm.
The inner scale (white background)
shows the speed of the 540-1000
PTO.
The counter indicates the number of tractor
operating hours. The work hour is defined by
the engine speed:
1 hour = 150,000 engine revolutions.
12
km/h
PTO
RPM x 100
600
800
1000
600
500
540
25
30
30
10
10
5
20
20
15
00000000002
CAUTION: WHEN TRAVELLING ON PUBLIC ROADS, ALWAYS KEEP
THE REQUIRED SAFETY LIGHTS TURNED ON. IF NECESSARY,
EQUIP THE TRACTOR WITH REFLECTING BANDS OR OTHER RE
-
FLECTING DEVICES. DO NOT USE THE WORKING LIGHTS ON PUB
-
LIC ROADS.
DANGER: DO NOT ALLOW PASSENGERS ON THE TRACTOR UN-
LESS IT IS EQUIPPED WITH A SEAT SPECIFICALLY FOR THIS PUR-
POSE. CARRYING PASSENGERS IN AN IRREGULAR FASHION CAN
OBSTRUCT THE DRIVER’S VIEW AND CONSEQUENTLY JEOPAR-
DISE SAFETY.
CAUTION: DO NOT PERMIT OTHERS TO RIDE ON THE TRACTOR OR
THE IMPLEMENT UNLESS AN APPROVED PASSENGER SEAT HAS
BEEN INSTALLED OR MADE AVAILABLE AS AN OPTION BY THE
MANUFACTURE(S).
km/h
RPM x 100
00000000002
