SECTION III USE
Control pedals
Control pedals

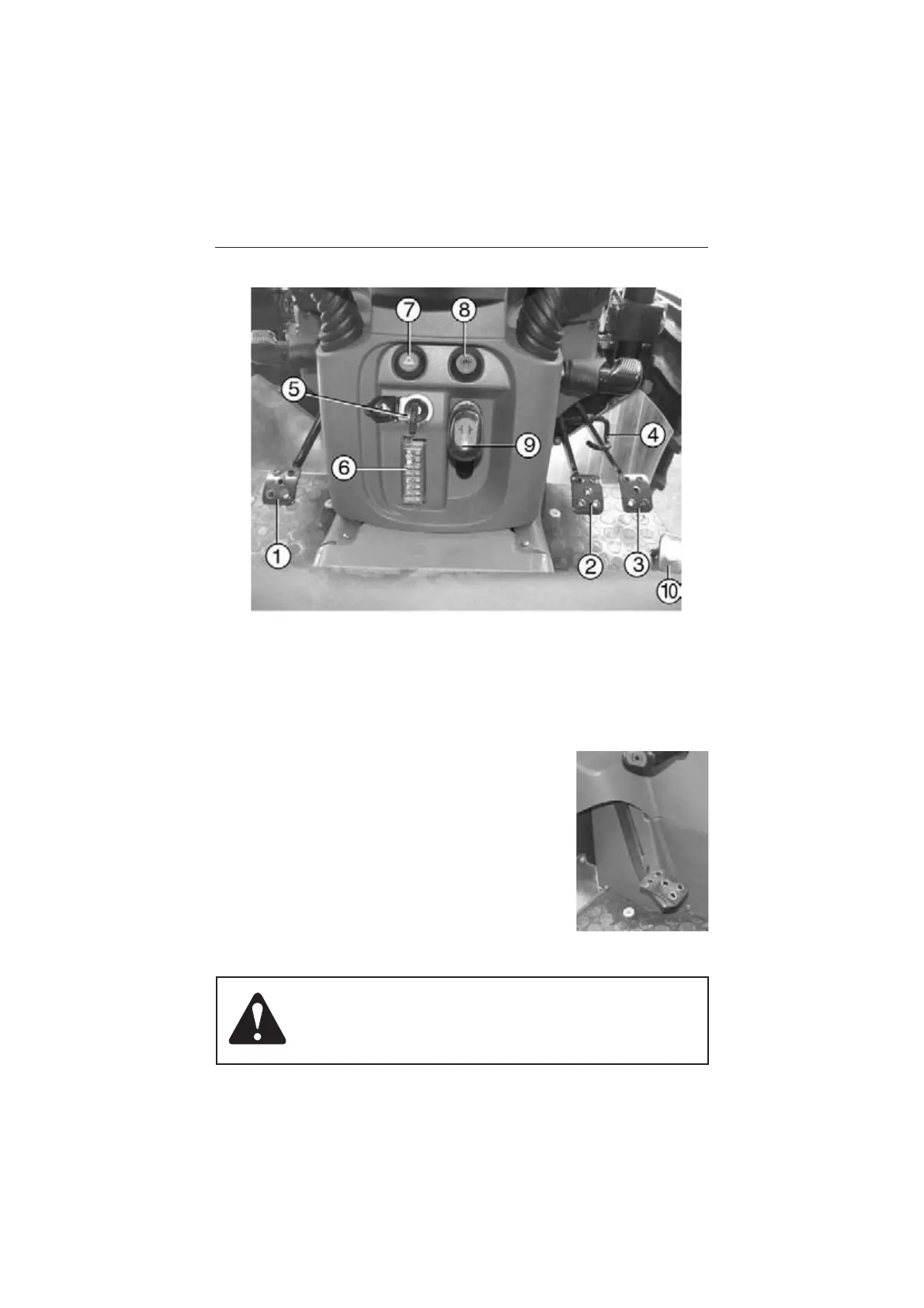

1 - Clutch control pedal 6 - Fuse holder box
2 - Left brake control pedal 7 - Hazard warning lights
3 - Right brake control pedal 8 - Diff-lock control push-button switch
4 - Brake pedals connecting bolt 9 - P.T.O. clutch control
5 -Ignition switch 10 - Accelerator pedal
Clutch control pedal
The clutch is operated by means of the pedal located to
the left of the driver's seat.
When disengaging the clutch the pedal must always be
fully depressed and the engine r.p.m. reduced.
Other than for short periods such as gear changing the
clutch must not be held depressed, always select "NEU-
TRAL" and engage the clutch.
When engaging the clutch , "IN GEAR", the pedal must be
released smoothly and carefully without excessive en-
gine speed to avoid excessive slippage.
After clutch engagement the pedal must be fully re-
leased and must not be used as a "foot-rest".
Incorrect clutch operation will result in excessive clutch
wear.
30
CAUTION: DO NOT REST YOUR FOOT ON CLUTCH PEDAL OR
PARTIALLY DEPRESS CLUTCH PEDAL. PREMATURE CLUTCH
WEAR WILL RESULT.
