SECTION III USE
Analogue dials and gauges

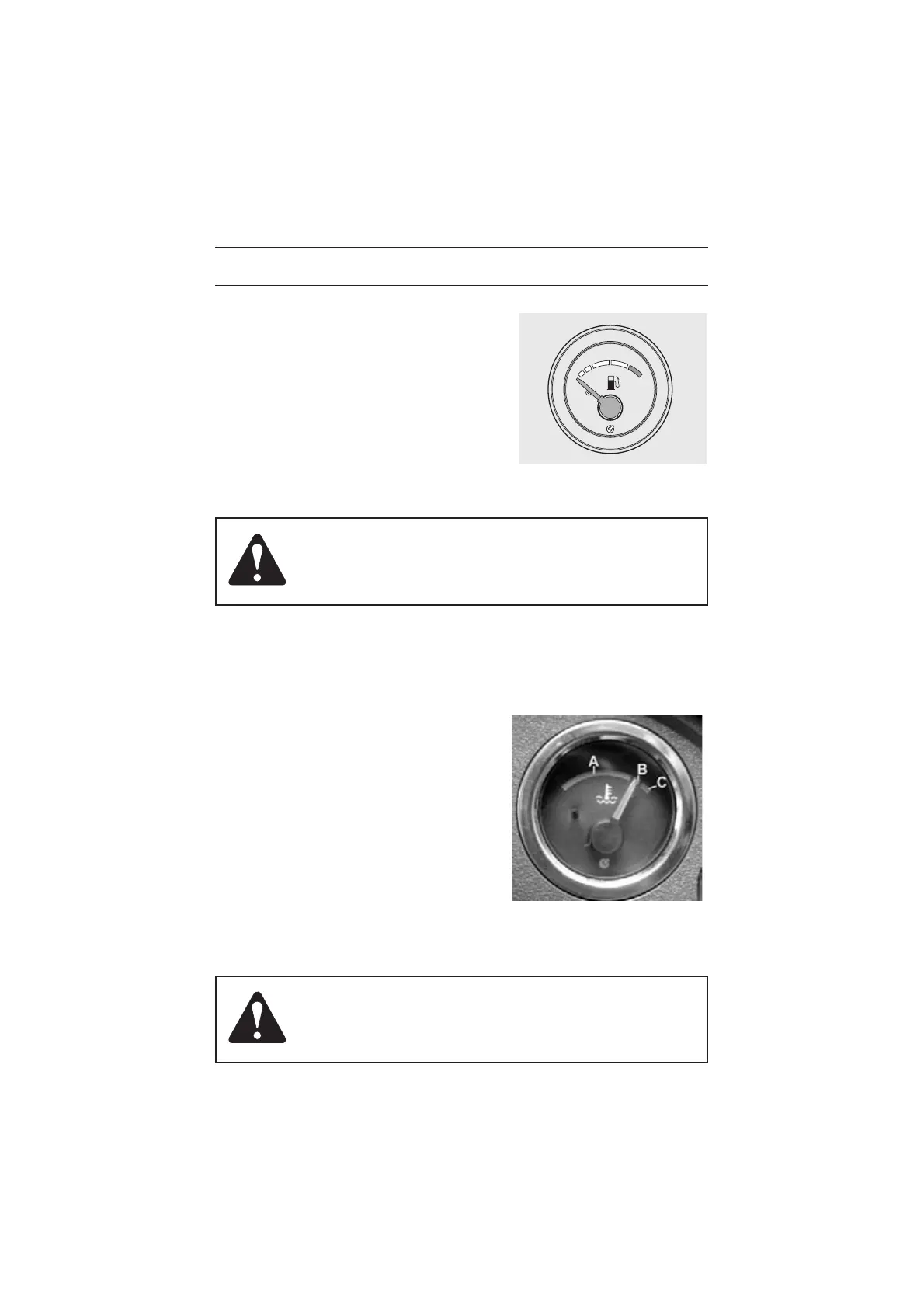

Fuel gauge
Total fuel capacity is 30+15 litres (3.96
U.S. gal + 7.92 U.S. gal) (including 15
litres (3.96 U.S. gal) in the
supplementary tank).
“RESERVE” fuel level is indicated by
the needle positioned in the red part of
the scale and by illumination of the low
fuel warning light on the indicator lights
panel.
Engine temperature gauge
Gauge indicates engine coolant temperature of water-cooled engine.
- end of green area = 100°C (212 °F)
- yellow area = 105°C (221 °F)
The engine can continue working
continuously until the general warning
light comes on.
- start of red area = over 105°C (221 °F)
Switch the engine off immediately.
11
0
1/2
4/4
CAUTION: DO NOT OPERATATE ENGINE UNTIL FUEL TANK IS
ENPTY. IF ENGINE IS RUN OUT OF FUEL, IT WILL BECOME NECES-
SARY TO BLEED AIR FROM FUEL SYSTEM.
WARNING: IF THE NEEDLE ENTERS THE RED SECTION, SWITCH
OFF THE ENGINE IMMEDIATELY.
IF THE NEEDLE IS IN THE BLUE SECTION, THE TEMPERATURE IS
TOO LOW; WAIT UNTIL THE NEEDLE ENTERS THE WHITE SECTION
BEFORE PUTTING THE ENGINE UNDER LOAD.
