SECTION VI ELECTRICAL SYSTEM
Headlight alignment
The tractor must be in normal road-going conditions and parked on a level
surface at a distance of 10 m (32.8 ft) from a wall (tyres must be inflated to
the correct pressures and the front wheels must be positioned for travel in
a straight line).
Switch on the dipped beam headlights.

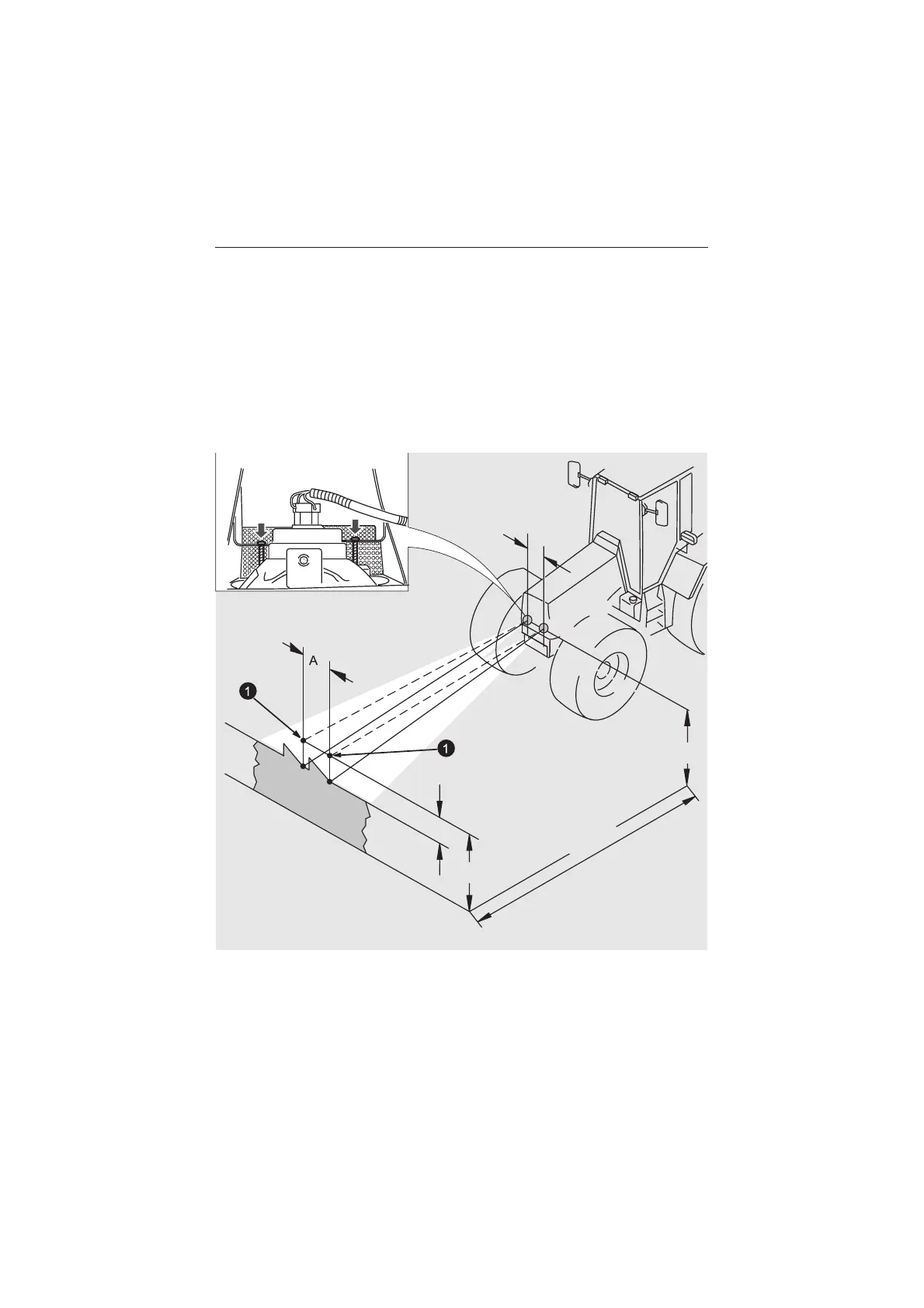

1 - points on the wall corresponding to the centres of the headlights
A - distance apart of headlights
H - height of headlights
h - distance of the centre of the beam from the horizontal axis
X - distance between headlights and wall
177
h=10cm
H
X =10 m
H
A
