SECTION V MAINTENANCE

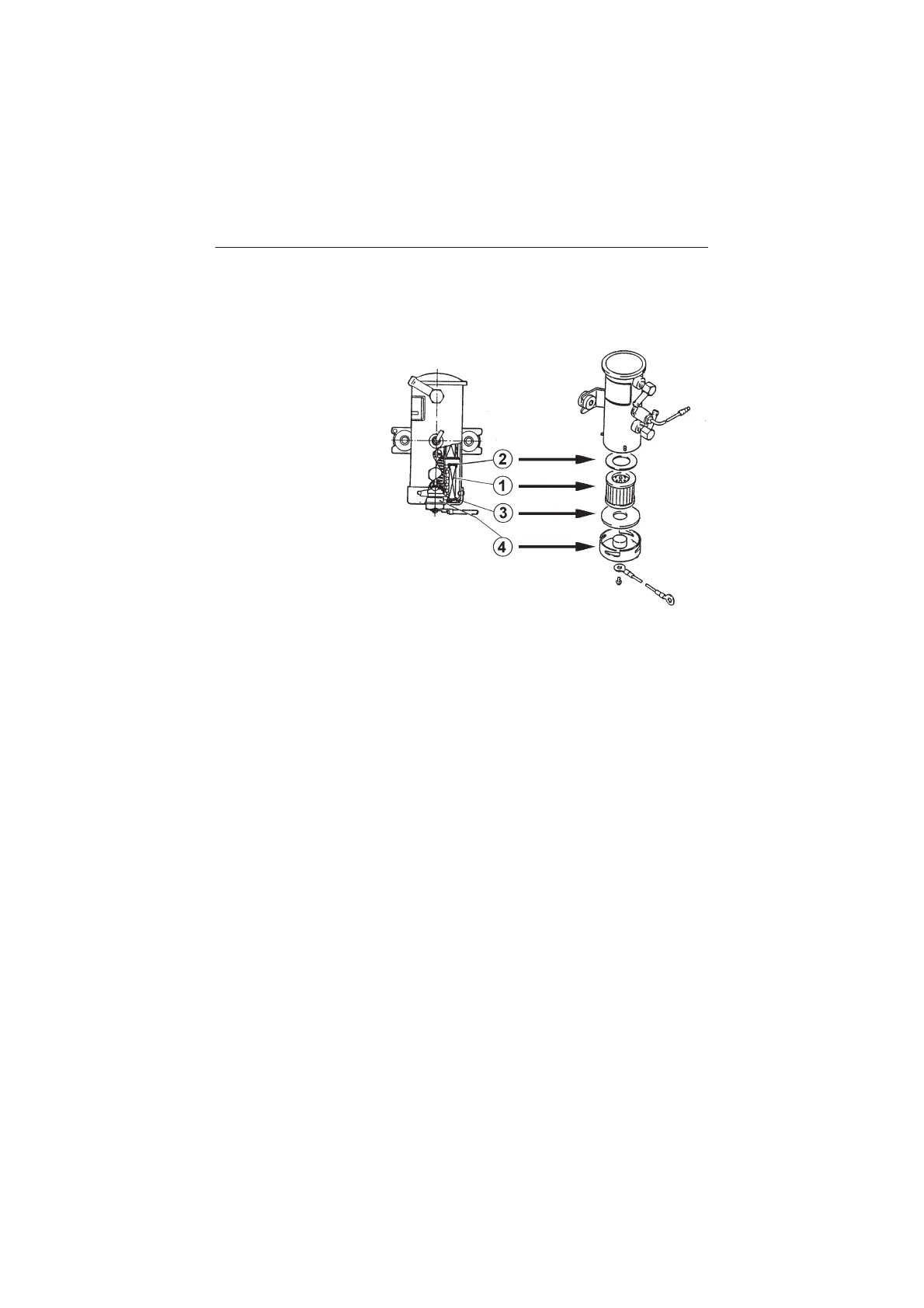

Electro-magnetic pump
1 - Filter
2 - Gasket
3 - Gasket
4 - Magnet
Filter periodic maintenance
•
After the first 50 work hours and every 100 hours thereafter: in-
spect and clean pump filter.
•
Every 400 hours: replace pump filter.
Filter replacement
Remove the cover from the lower section of the fuel pump, then pull out the
filter. This filter is supplied with gaskets in the top and bottom section. The
bottom cover has a magnetic part to attract any metal impurities present in
the fuel supply circuit.
Filter inspection and cleaning
Wash the filter, the gaskets, the magnetic part and the cover by soaking
them in clean fuel. Make sure there are no damaged areas and if so
replace them.
128
