SECTION IV WHEELS
Track width adjustment for wheels with adjustable rims
Front wheels

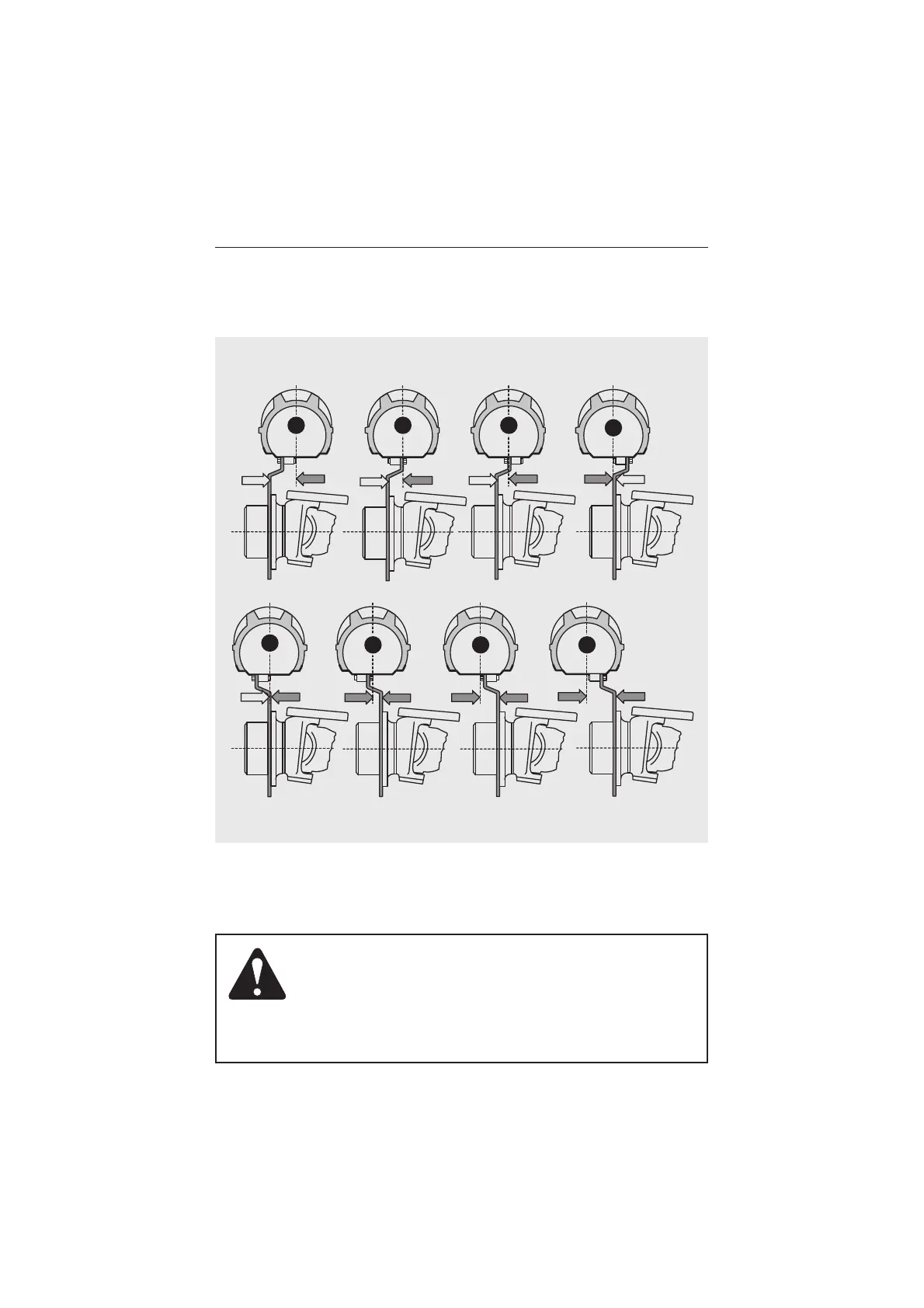

This figure illustrates the 8 different fitting possibilities and the 8 possible
front track settings shown in the tables on the following pages.
97
4
7 8
31 2
6
5
WARNING: AN UNBALANCED TRACTOR COULD OVERTURN AND
CAUSE INJURY OR DEATH. MAKE SURE FRONT FRAME COUNTER-
WEIGHTS, WHEEL WEIGHTS AND WHEEL BALLAST ARE USED AS
RECOMMENDED BY THE MANUFACTURER. DO NOT ADD EXTRA
COUNTERWEIGHTS TO COMPENSATE FOR AN OVERLOADED
TRACTOR, IT IS RECOMMENDED TO REDUCE THE LOAD. KEEP ALL
PARTS OF YOUR BODY INSIDE THE OPERATOR’S COMPARTMENT
WHILE OPERATING THE TRACTOR.
