SECTION III USE
Just like the clutch control lever, the 540/1000 rpm PTO speed selector
lever is also equipped with a safety lock to prevent accidental operation.
To operate the lever, move the lock towards the knob and then move the
lever in the direction of the required PTO speed as shown on the plate.
CAUTION! Only operate the 540/1000 rpm rear
PTO speed selector with the engine off and the
PTO clutch disengaged.

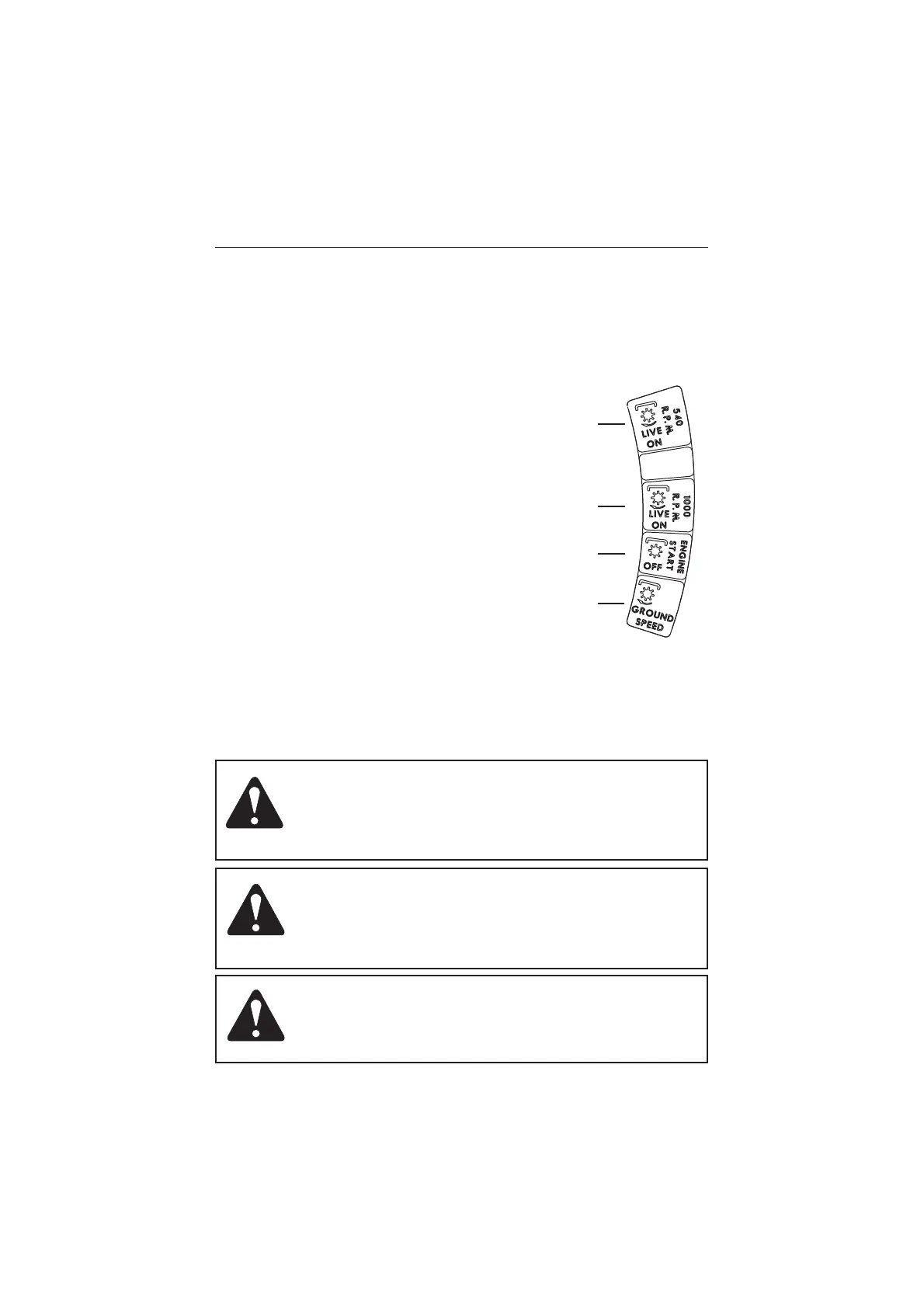

P.T.O. speed selection control data plate
A - Rear speed selection 540 r.p.m.
B - Rear speed selection 1000 r.p.m / underside 2000 r.p.m.
or 540 ECO rpm rear / 2000 rpm central
C - Neutral position
D - Synchro mesh P.T.O.
Synchronized power take-off
•
(clockwise rotation)
The tractors can be equipped, on request, with an
additional P.T.O. shaft terminal of 1.3/8", 6 splines, for a P.T.O.
synchronized with the transmission.
To select the desired speed, simply move the lever to the position
indicating the required speed as shown on the plate.
42
CAUTION: WHEN USING THE GROUNDSPEED PTO, REMEMBER
THAT WHEN YOU DRIVE THE TRACTOR IN REVERSE GEAR, THE DI-
RECTION OF ROTATION OF THE PTO SHAFT WILL ALSO BE RE-
VERSED. THEREFORE, WITH CERTAIN IMPLEMENTS IT IS
ADVISABLE TO DISENGAGE THE PTO BEFORE ENGAGING RE-
VERSE GEAR IN ORDER TO AVOID DAMAGING THE IMPLEMENT.
A
B
C
D
CAUTION: WHEN OPERATING PTO DRIVEN EQUIPMENT OR WHEN
TOWING HEAVY EQUIPMENT AT TRANSPORT SPEEDS, LOCK THE
DRAWBAR IN ITS CENTER POSITION WITH RETAINING PINS AND
ATTACH IMPLEMENT SAFETY CHAINS.
DANGER: WHILE THE PTO IS IN OPERATION, NO-ONE MUST STAND
IN THE VICINITY OF THE PTO OUTPUT SHAFT OR THE DRIVE
SHAFT.
