SECTION IV WHEELS

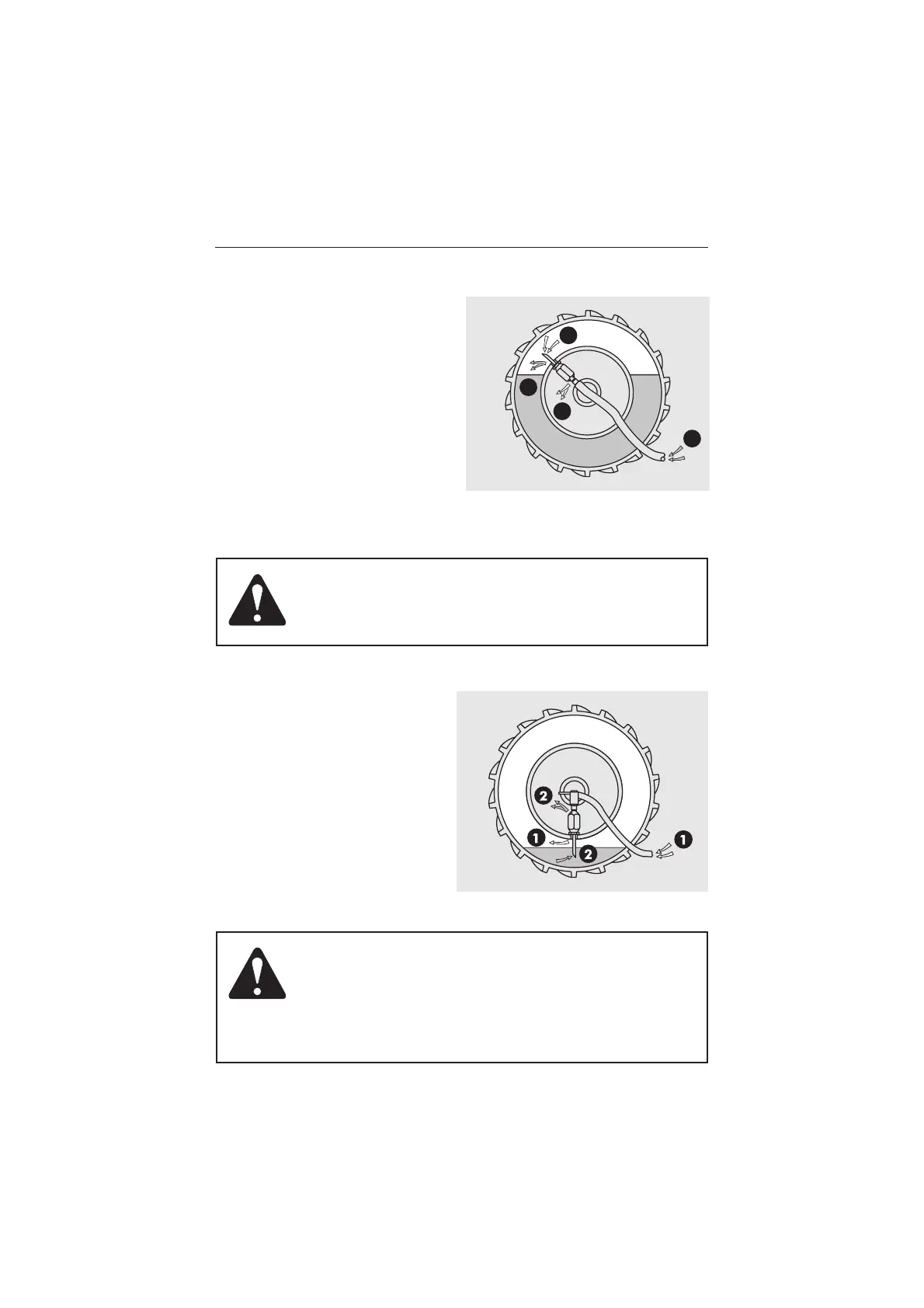

Filling the tyre with water
Jack up tractor. Rotate wheel so
that the inner-tube tire valve is in
upper position. Screw out valve
insert. Screw water filling valve
into the tire valve. Connect water
hose. Connect the water hose and
fill until the water starts to come
out of the breather at the bottom of
the valve. Screw off water filling
valve. Refit valve insert. Inflate tire
to specified pressure.
1 - AIR
2-WATER
Draining water from the tyre
Jack up tractor. Rotate wheel so
that the inner-tube tire valve
comes down. Screw out tire
valve insert. Allow water to drain.
Screw on combined valve.
Inflate tire. The air pressure will
force out any remaining water
through the bleeder bore. Screw
off combined valve. Refit tire
valve insert. Inflate tire to
specified pressure.
107
2
1
2
1
CAUTION: WHILE MIXING THE ANTIFREEZE SOLUTION AND
FILLING THE TYRE, IT IS ESSENTIAL TO WEAR SAFETY GOGGLES
AND PROTECTIVE CLOTHING. ADD CALCIUM TO THE WATER, NOT
VICE VERSA, TO PREVENT THE RISK OF A VIOLENT CHEMICAL RE-
ACTION.
WARNING:
STAY OUT OF THE TRAJECTORY AS INDICATED BY SHADED AREA.
ALWAYS USE A SAFETY CAGE OR OTHER RESTRAINING DEVICE IN
COMPLIANCE WITH OSHA REGULATIONS.
NOTE: UNDER SOME CIRCUMSTANCES, THE TRAJECTORY MAY
DEVIATE FROM ITS EXPECTED PATH
