SECTION VI ELECTRICAL SYSTEM

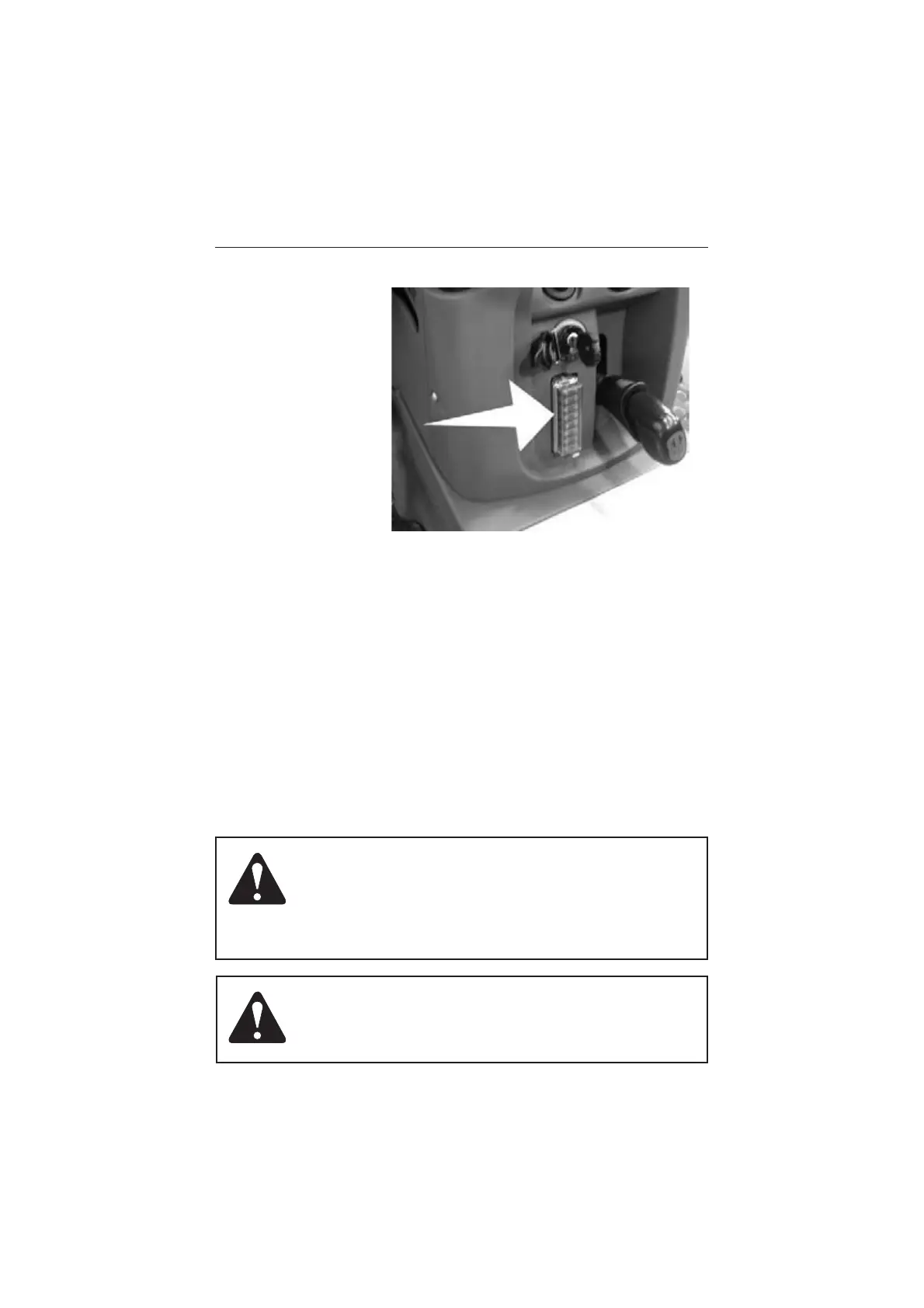

Fuse box
The electrical system is protected by fuses which are grouped in a plastic
fusebox located under the bonnet close to the dashboard.
In addition, three more fuses (70A general, 30A glowplugs, 30A lighting)
are located under the dashboard. To gain access for any replacement the
dashboard must be removed by loosening the six securing screws.
Should any component part of the electrical system fail to function, check
the corresponding fuse and replace it, if necessary. In the event of a
sudden breakdown, temporarily replace a fuse covering an important
function (i.e. a headlight) by another of less importance.
159
DANGER: START THE ENGINE, WITH THE STARTER KEY, FROM
THE OPERATOR’S SEAT ONLY. DO NOT ATTEMPT TO START THE
ENGINE BY SHORTING ACROSS THE STARTER TERMINALS. THE
MACHINE WILL START IN GEAR IF THE NEUTRAL START CIRCUIT IS
BYPASSED. THIS COULD CAUSE SERIOUS INJURY OR DEATH TO
ANYONE IN THE VICINITY OF THE TRACTOR. ENSURE THAT THE
ENGINE STARTER SOLENOID COVER IS ALWAYS IN POSITON.
DANGER: TAKE CARE NOT TO CAUSE DANGEROUS SPARKS
WHEN WORKING IN PROXIMITY TO FUEL DEPOSITS OR OTHER
FLAMMABLE MATERIAL.
NOTE: Always switch off the engine before checking or replacing fuses and
relays.
NOTE: Only use original fuses. The electrical system could be irreparably
damaged by fitting an unsuitable fuse.
