SECTION III USE
Adjustable vertical link
The three-point right hand vertical link is attached to lower link by means of
a special pin and plate that allows two positions:
•
position A locks vertical link solid to lower link.
•
position B allows for some floating of lower link when installed into
slot of vertical link.
This has a dual purpose:
•
to allow easier attaching of implement
•
to allow implement to freely follow the ground contours for specific
jobs.
For correct installation:
•
remove cotter pin and turnover the plate with pin. Install through
slot of vertical link and hole in lower link as shown in A to allow for
some floating of lower link.
•
install plate so that pin fits through solid hole of vertical link to pre-
vent floating of lower link.

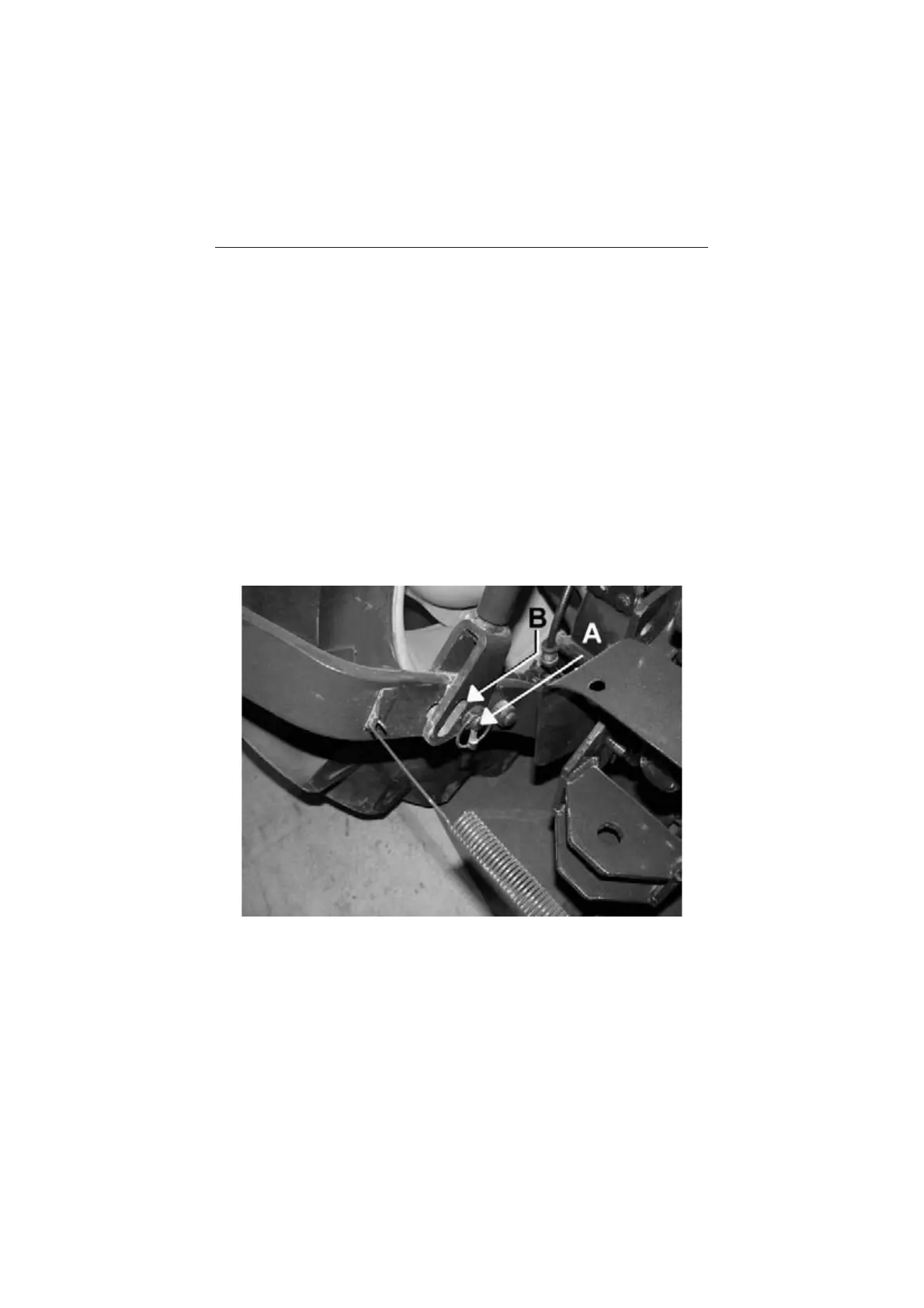

Coupling device for attaching the lifting rod to the lower link.
A - Fixed coupler
B - Coupler with play
IMPORTANT: Whenever brackets are used to lock the lower lifting arms
into a stationary position. The yellow Position Control Lever, must remain
all the way forward into the red FLOAT sector, and should not be moved
rearward into the blue sector of quadrant.
71
