SAME SOLARIS 55 User Manual

SECTION VIII TECHNICAL SPECIFICATIONS
Gearbox
The transmission comprises a 4-speed synchronised gearbox and 3
speed ranges.
A shuttle is fitted as standard to give a total of 12 forward gears and 12
reverse gears.

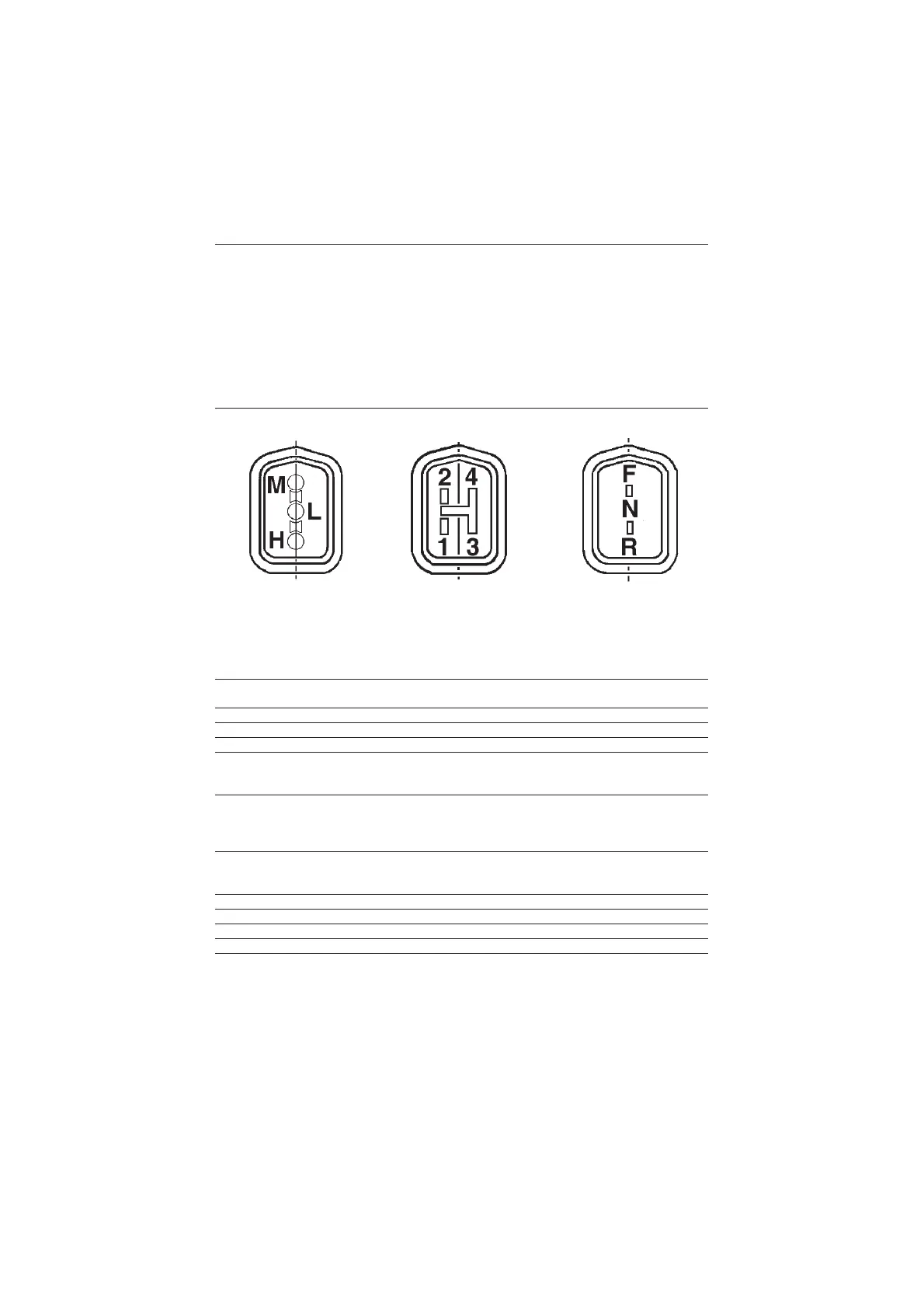

Reversing Gearshifting Speed range
Control control control
Number of gears 12FWD + 12REV
gearbox ratios
1st gear 19/45= 1/2,8634
2nd gear 25/39 = 1/1.5600
3rd gear 32/33 = 1/1.0313
4th gear 38/26 = 1/0.6842
Shuttle
forward 26/25 = 1/0.9615
reverse 20/19 = 1/0.9500
range gearbox ratios
low (L) (16/49)x(15/50)=1/10.2083
medium (M) (16/49)x(28/37)=1/4.0469
high (H) 1/1
rear axle ratios:
bevel drive 8/44 = 1/5.5000
final drive 11/59 = 1.5.3636
total ratio 29.4998
power take-off 540 rpm 10/49 = 1/4.900
rear 1000 rpm 19/52 = 1/2.7368
mid 2000 rpm (19/52)x(26/29)=1/1.5263
184

SAME SOLARIS 55 Specifications

General

Power	55 hp
Transmission	Mechanical
PTO Power	48 hp
PTO Speed	540/1000 rpm
Gearbox	12
Hydraulic Remotes	2
Engine Type	Diesel
