SECTION III USE
Controls
The hydraulic power-lift control levers are grouped in the special console
on the operator's right-hand side.
Lever with yellow knob (1): used for raising and lowering implement
(sector part is yellow), for identifying desired working position, during
controlled position duties and for mixed draft-position control (yellow and
green sector).
The working range of the lever is controlled by adjustable stop, which
allows the user to identify and maintain the same working position.
Lever with green knob (2): automatically controls the desired working
depth in relation to the resistance met by the implement in the ground.
Its action range is indicated by the green sector with a numbering interval
from 0 to 12, and by the red sector.
This lever is also provided with adjustable stop which limits the lever's travel in
such a way that the same desired working depth can be obtained every time.

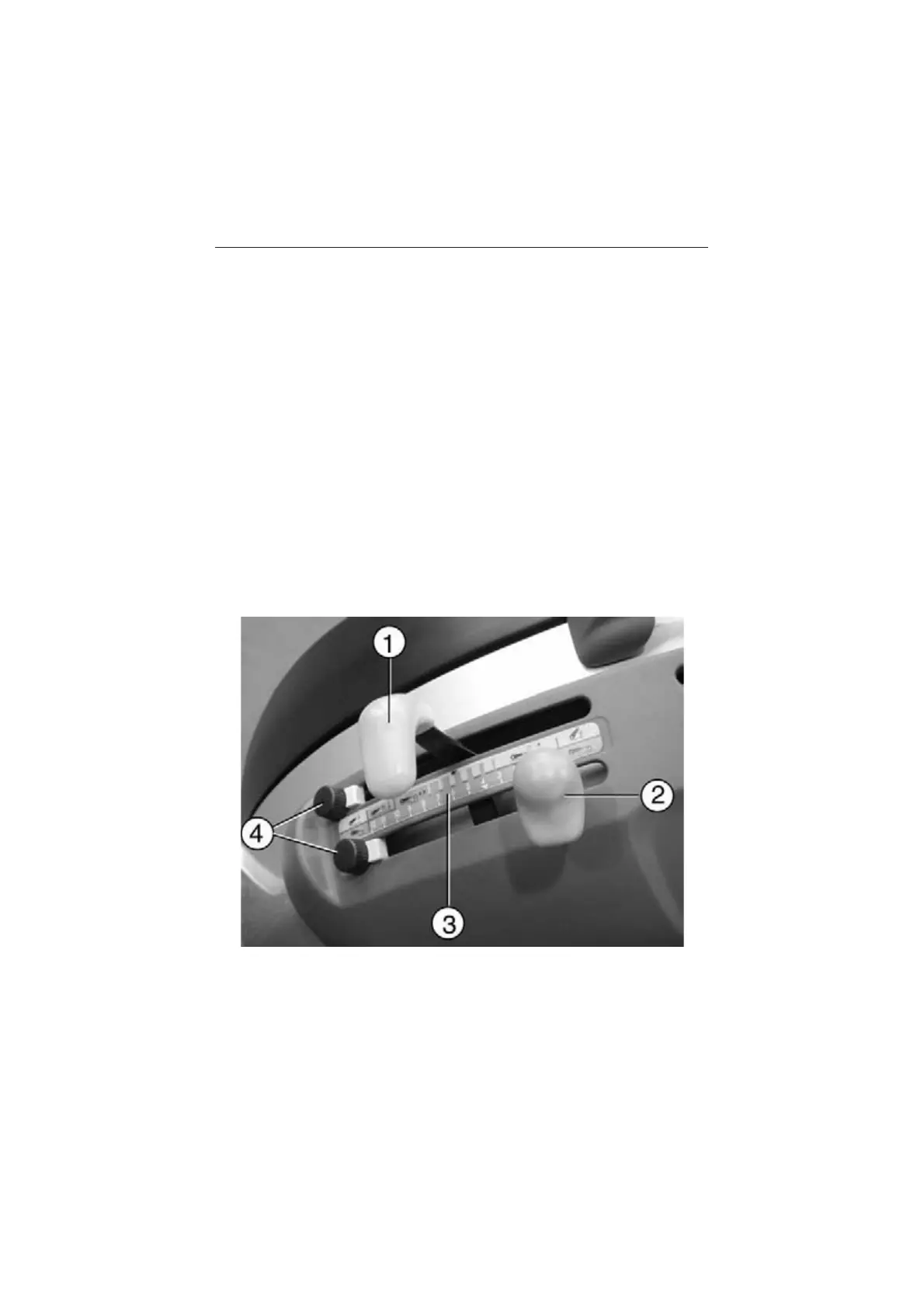

Hydraulic power-lift control levers
1 - Yellow lever position control
2 - Green lever draft control
3 - Command lever sector
4 - Power-lift control levers stop screw
46
