SECTION IV WHEELS
Rear wheels

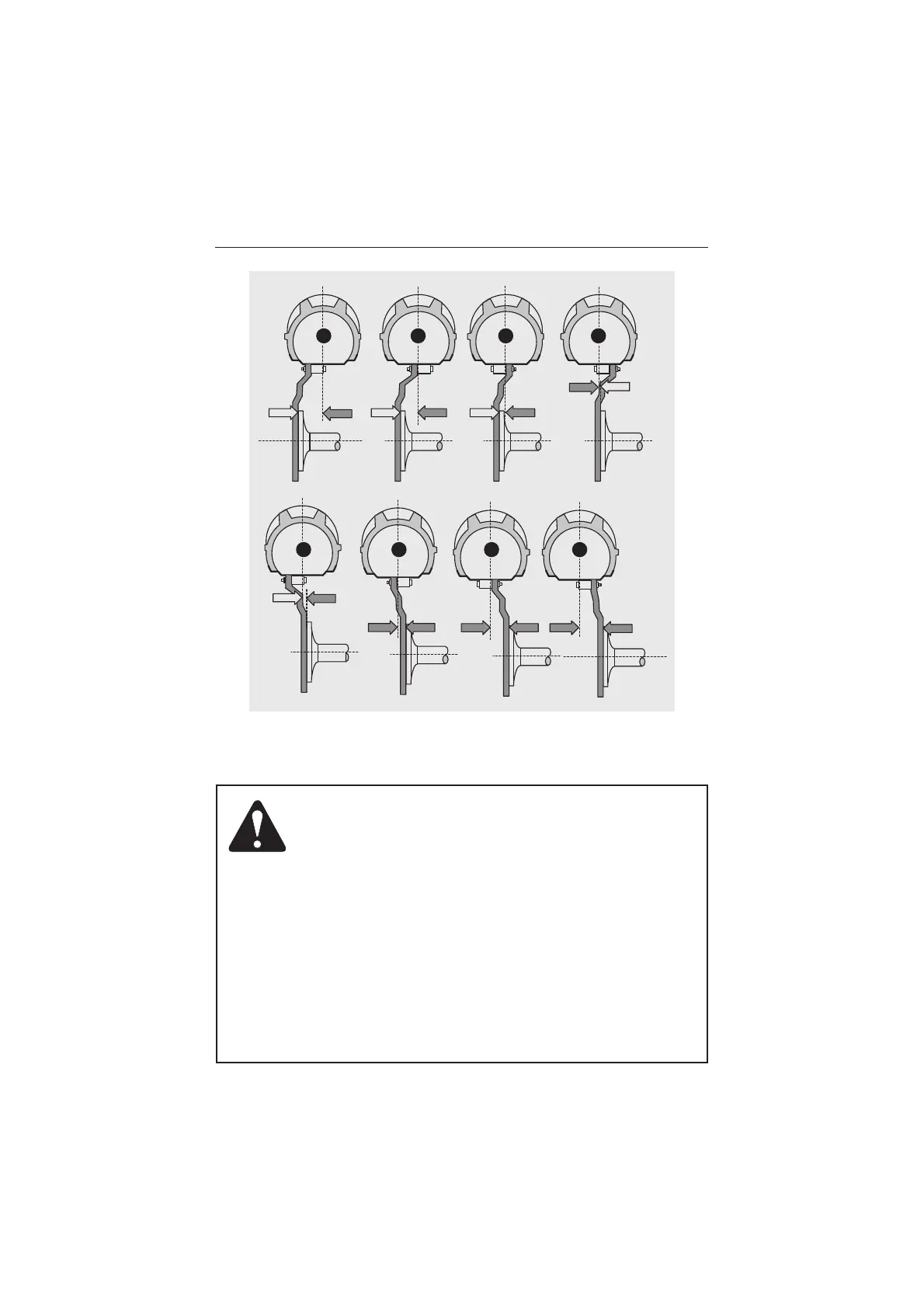

This figure illustrates the 8 different fitting possibilities, and the 8 possible
rear track settings shown in the tables on the following pages.
98
1 2 3 4
5 6
7
8
WARNING:
NEVER INFLATE BEYOND 35 POUNDS OF PRESSURE TO SEAT
BEADS.
NEVER STAND, LEAN OR REACH OVER THE ASSEMBLY DURING
INFLATION.
INSPECT BOTH SIDES OF THE TIRE TO BE SURE THAT THE BEADS
ARE EVENLY SEATED. IF TIRE IS MOUNTED ON A MACHINE THAT
DOES NOT HAVE A POSITIVE LOCK-DOWN DEVICE TO HOLD THE
WHEEL, INFLATION SHOULD BE DONE IN A SAFETY CAGE OR
OTHER RESTRAINING DEVICE. IF BOTH BEADS ARE NOT
PROPERLY SEATED WHEN PRESSURE REACHES 35 PSI, COM-
PLETELY DEFLATE THE ASSEMBLY, REPOSITION THE TIRE
AND/OR TUBE ON THE RIM, RELUBRICATE AND REINFLATE. IN-
FLATING BEYOND 35 PSI AIR PRESSURE WHEN TRYING TO SEAT
THE BEADS IS A DANGEROUS PRACTICE THAT MAY BREAK A TIRE
BEAD (OR EVEN THE RIM) WITH EXPLOSIVE FORCE, POSSIBLY RE-
SULTING IN SERIOUS INJURY OR DEATH. AFTER THE BEADS ARE
FULLY SEATED, PRESSURE MAY BE INCREASED ABOVE 35 PSI TO
OPERATING PRESSURES, NOT TO EXCEED THE MAXIMUM
MOLDED ON THE TIRE SIDEWALL.
