SECTION III USE
A - Oil filter
B - Hydraulic pump
C - Hydraulic circuit
pressure switch
D - Hydraulic control
valve - hydrostatic
steering
E - Steering cylinders
F - Pressure relief valve
G - Hydraulic control
valve - lift
H - Safety valve
I - Hydraulic control
valves - auxiliary
services
L - Hydraulic lines
M - Hydraulic lines
N - Front lift
O - Electrohydraulic
differential lock

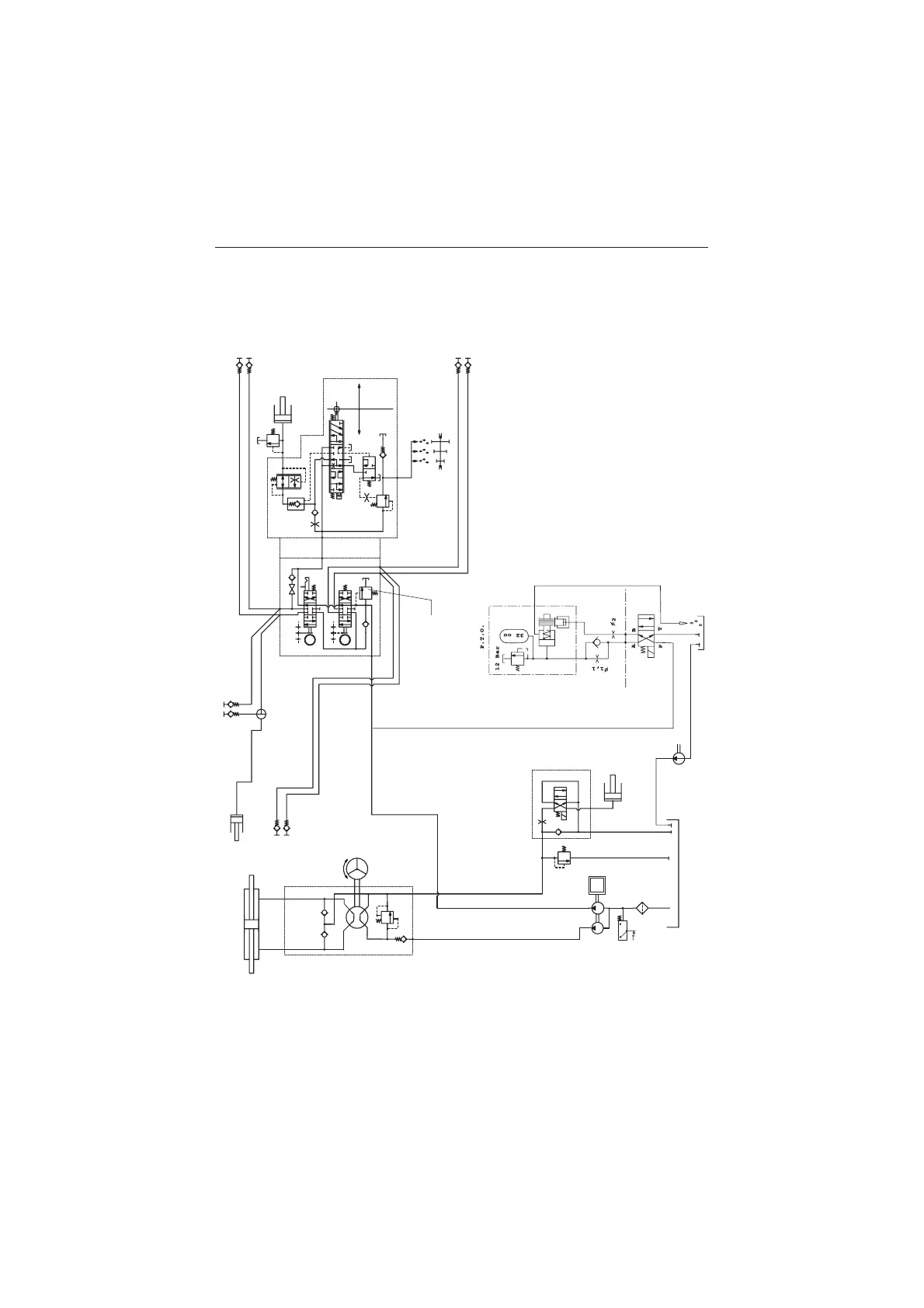

Hydraulic system of the tractor.
52
Dx
Dx
25 micron
ƒÓ1.5
99897.4/30
92559.4
OSPC 80 LS Dyn
Dx
1ß
1
2
0
2ß
1
2
0
L
P
A2
B2
N
B1
A1
180 Bar
2 Bar
12 Bar
T
B
A
P
Sollev.anteriore
Front lift
6 Bar
Rear lift
Sollev.poster.
Front diff.look.
210 Bar
Neutro
Neutral
Lower
Lift
Salita Discesa
T
T
P
Blocc.diff.anter.
P
T
L
R
100 Bar
I
Pompa 5,3 cc 14 l/min
Pompa 11 cc 29 l/min
E
N
L
L
H
G
M
F
M
D
O
C
B
A
