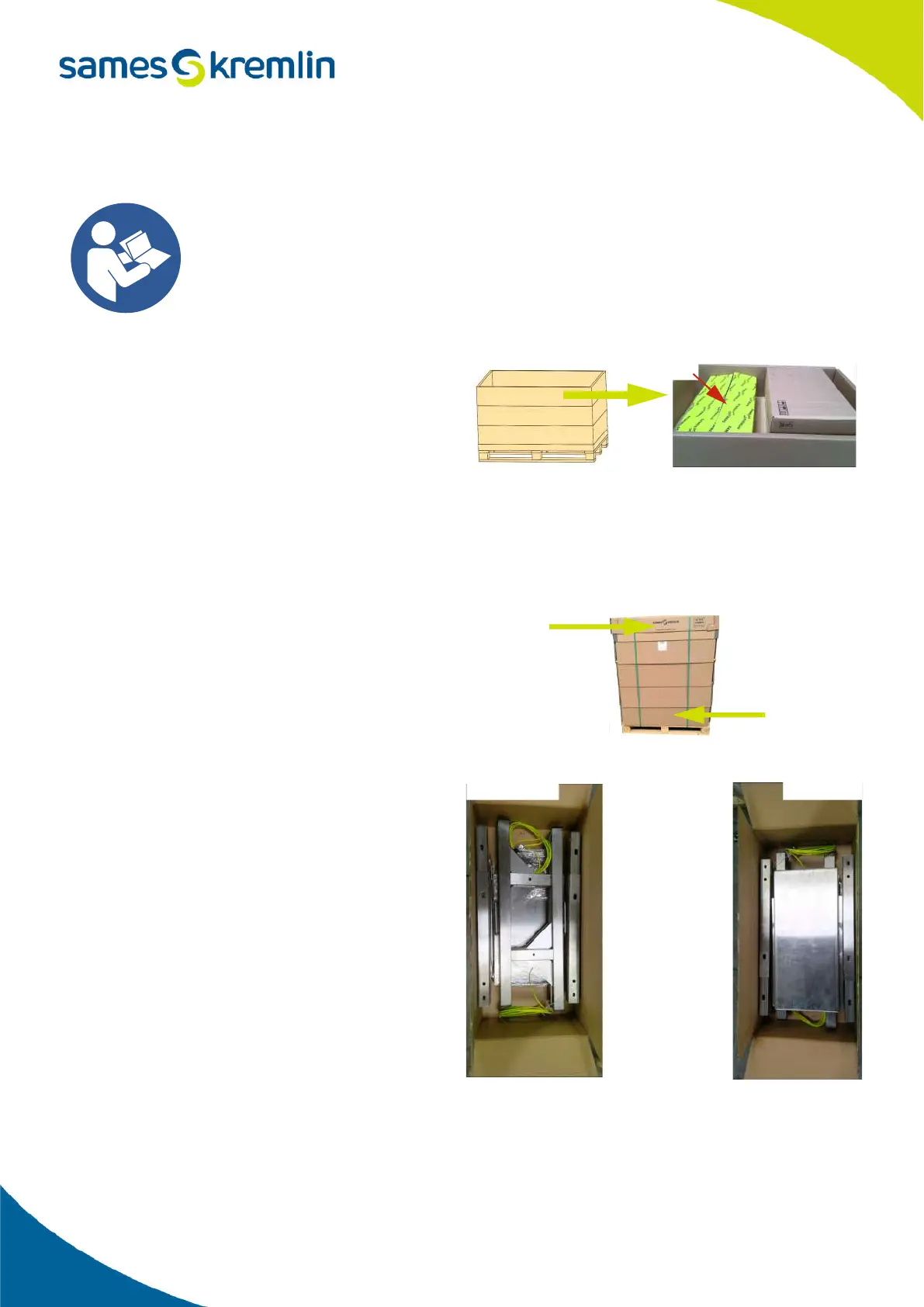

5.2.2. Install the feet when unpacking the Cyclomix
®
Evo with frame.
Refer to the foot mounting sheet provided with the equipment or the procedure below.
• Step 1:
In the received packing box:
• Identify the box (A) containing the Cyclomix
®
Evo
frame.
2 possible positions for the box containing the frame
according to the Cyclomix
®
Evo configuration.
Position 1 = High extension.
Position 2 =Low extension.
Note: As the box is heavy, it is recommended that two people carry it..
It is advisable to empty it of its contents and to assemble the components
gradually.
A
Position 1
Position 2
2 types of content depending on the cardboard containing the frame, with or
without tray.
Without tray
With tray
