5.2.3. Electrical connection
The Cyclomix
®
Evo an be powered by 220V or 110V..

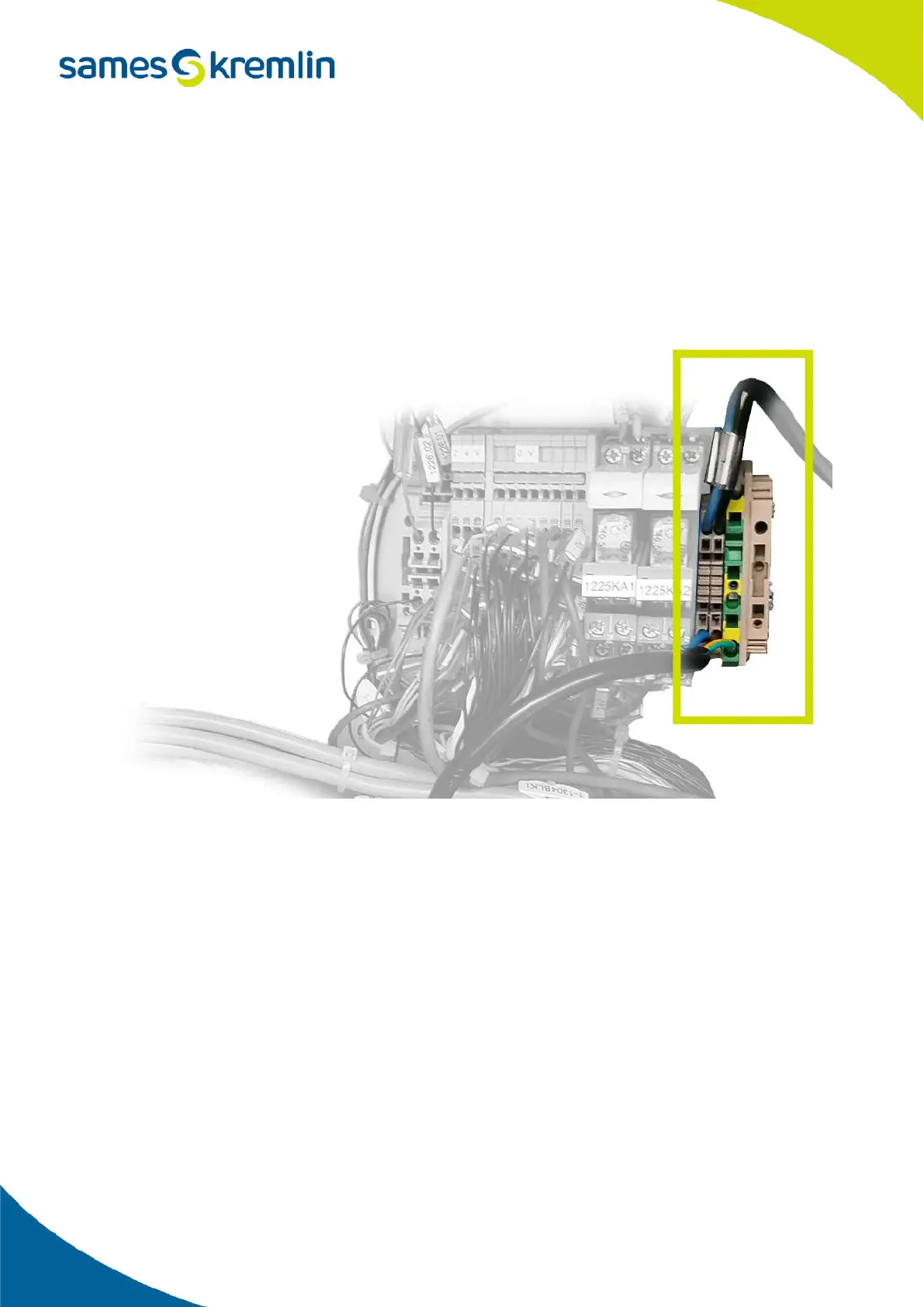

The electrical connection of the Cyclomix
®
Evo must be made according to the wiring diagram on the N and L terminal
blocks located inside the cabinet and provided for this purpose.
A 3-wire cable (2 phases + ground) of 1.5mm² must be used.
Check beforehand that it is not damaged.
5.2.4. Pneumatic connection
The compressed air supply must be between 5.5 and 7 bar.
Higher supply pressure may result in faster deterioration of some components such as electrovalves.
The compressed air must be free of water, oil and impurities in accordance with ISO 8573.1, 2010 Class 7.5.4.
The pneumatic power supply must be connected to the control panel and to the product plate.
