59
Member of Exel group
DRT582165110
A - 2023/03
2.5.3. Calibrate a product
In order to allow a good dosage of the
different products, it is imperative that
the volumes measured by the
flowmeters are very precise.
Depending on the viscosity, the
volume per pulse may vary slightly, so
it is necessary to calibrate each
product.

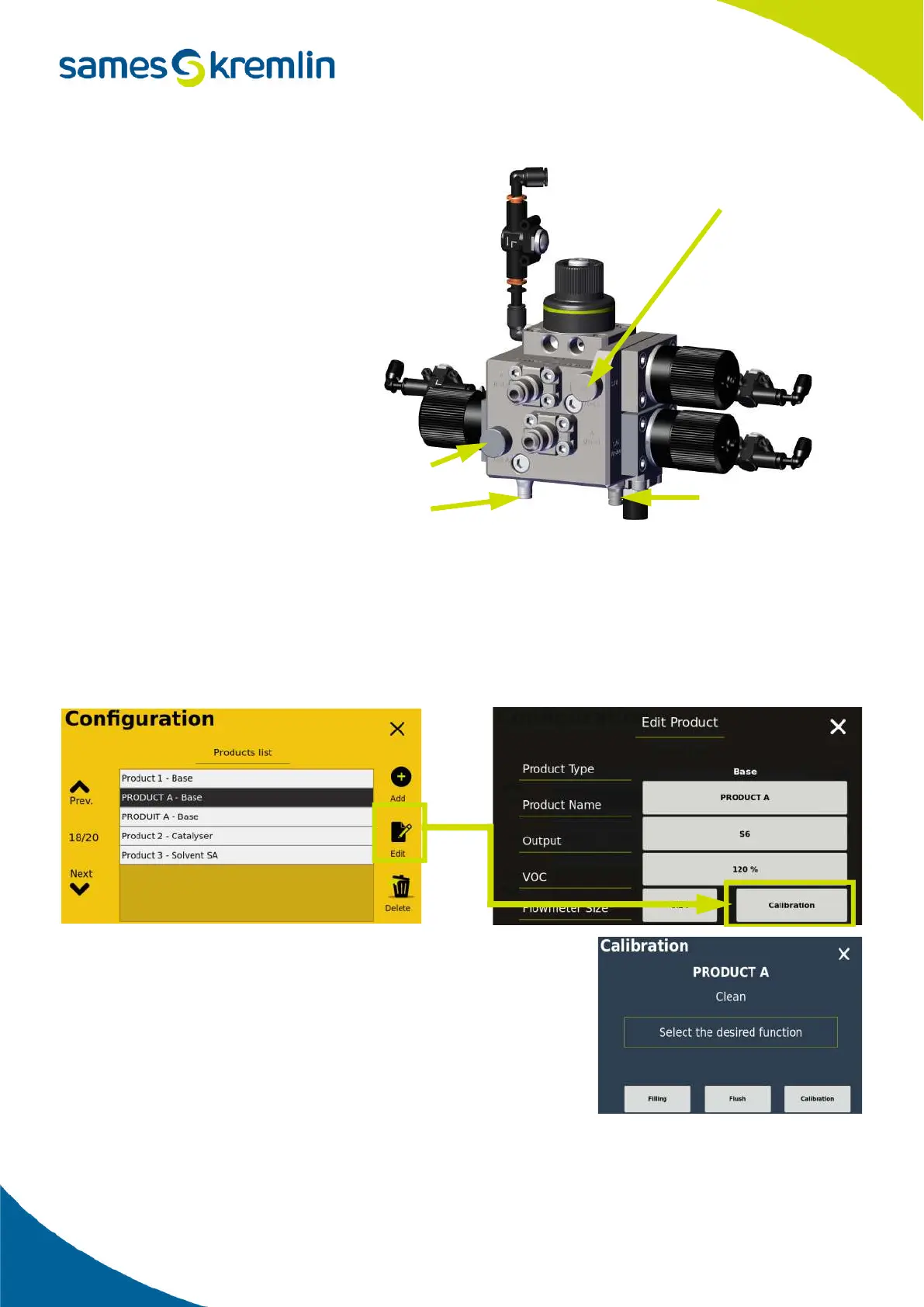

The calibration of the products is done
thanks to the test valves and taps
located on the mixing block.
Access to the calibration of a product is done from the configuration menu in the product management pages. (See
the Product Management segment)
If the calibration value is already known, enter this value directly in the
"Flowmeter size" box.If not, select the calibration function to open the screen
allowing to carry out the calibration of the product.
Before performing the calibration of the product, it is necessary to fill the
circuit with the product.
Conversely, before leaving the calibration, it is necessary to flush the circuit.
Test valve B
Product outlet B
(use Ø 4mm hose)
(usecØ 4mm hose)
Product outlet B
Test valve A
