5.2.10. Equipotential bonding of the remote box
5.2.11. Air supply to the product plate
The air connection of the product plate is necessary to supply the electrovalve of the injection valve as well as the
AIRCHOP valve.

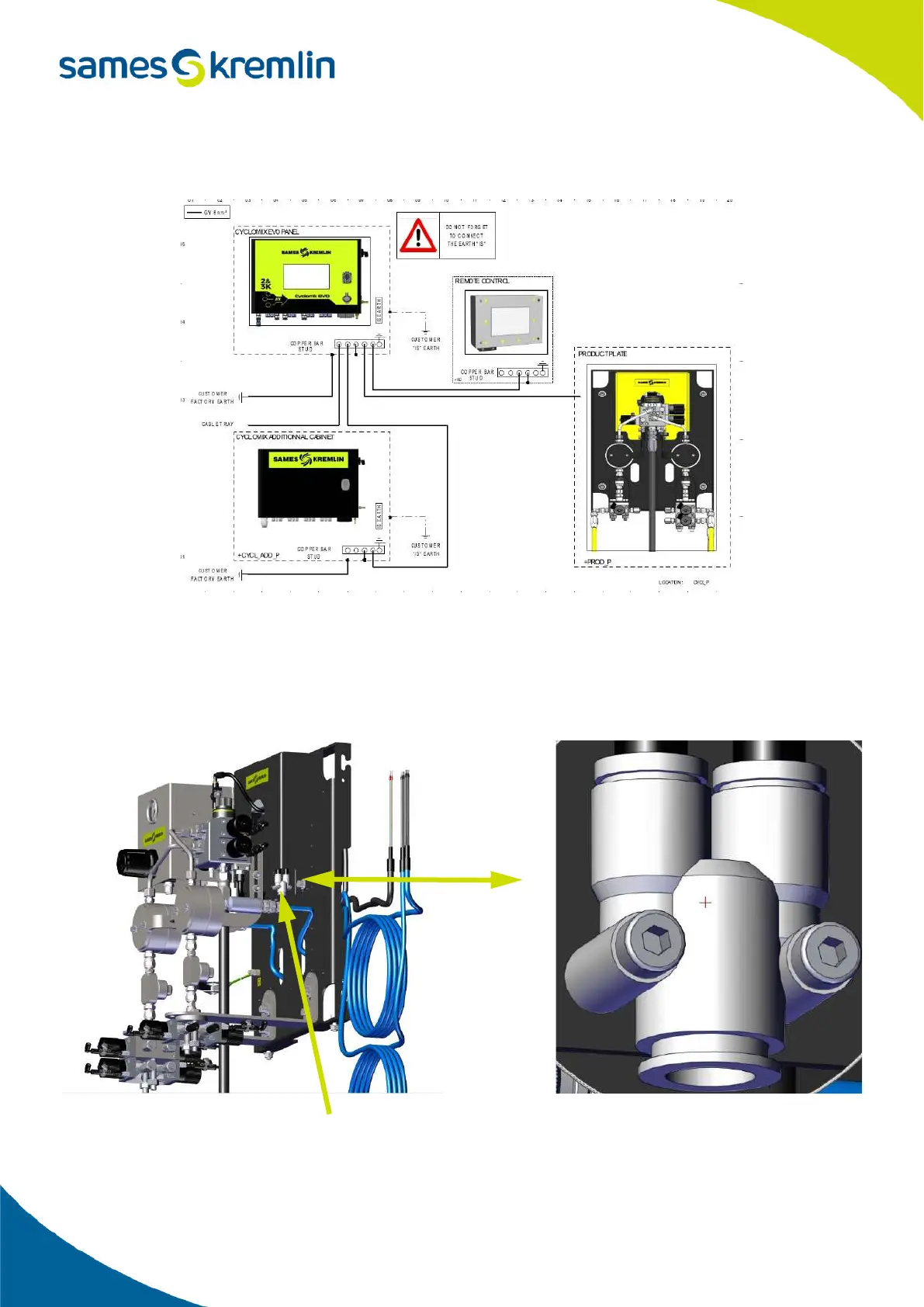

The air connection must therefore be made at the Y connection located on the side of the support plate as shown in
the image below.
Ø8x10
