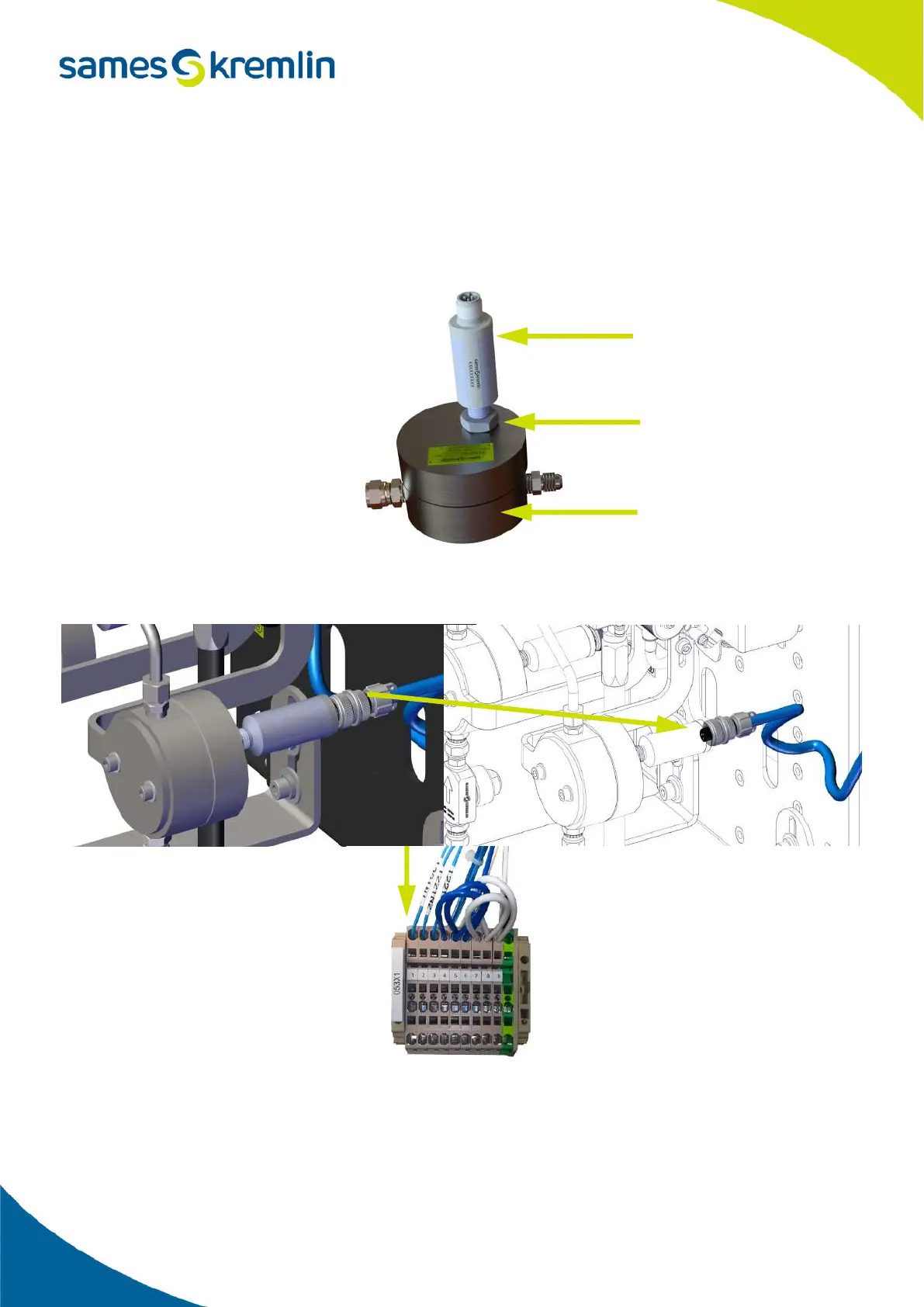

5.2.13. Connection of the flowmeters
Gear flowmeters - Non ATEX version
On the flowmeter side, the sensors are screwed in and locked with the locknut. The sensor must be screwed in order
to be in contact with the flowmeter and then it is necessary to lock the locknut in order to avoid that the sensor
unscrews in time.
The cables are marked to facilitate the connection of each flowmeter. The connector is screwed on the sensor on
one side and on the other side the cable is connected to the terminal blocks located inside the box
Measuring sensor
Locknut
Flowmeter
