5.2.5. Air supply to the box
The air supply of the box is done with a hose of diameter 8x10 at the level of the snap-in connection located under
the box.

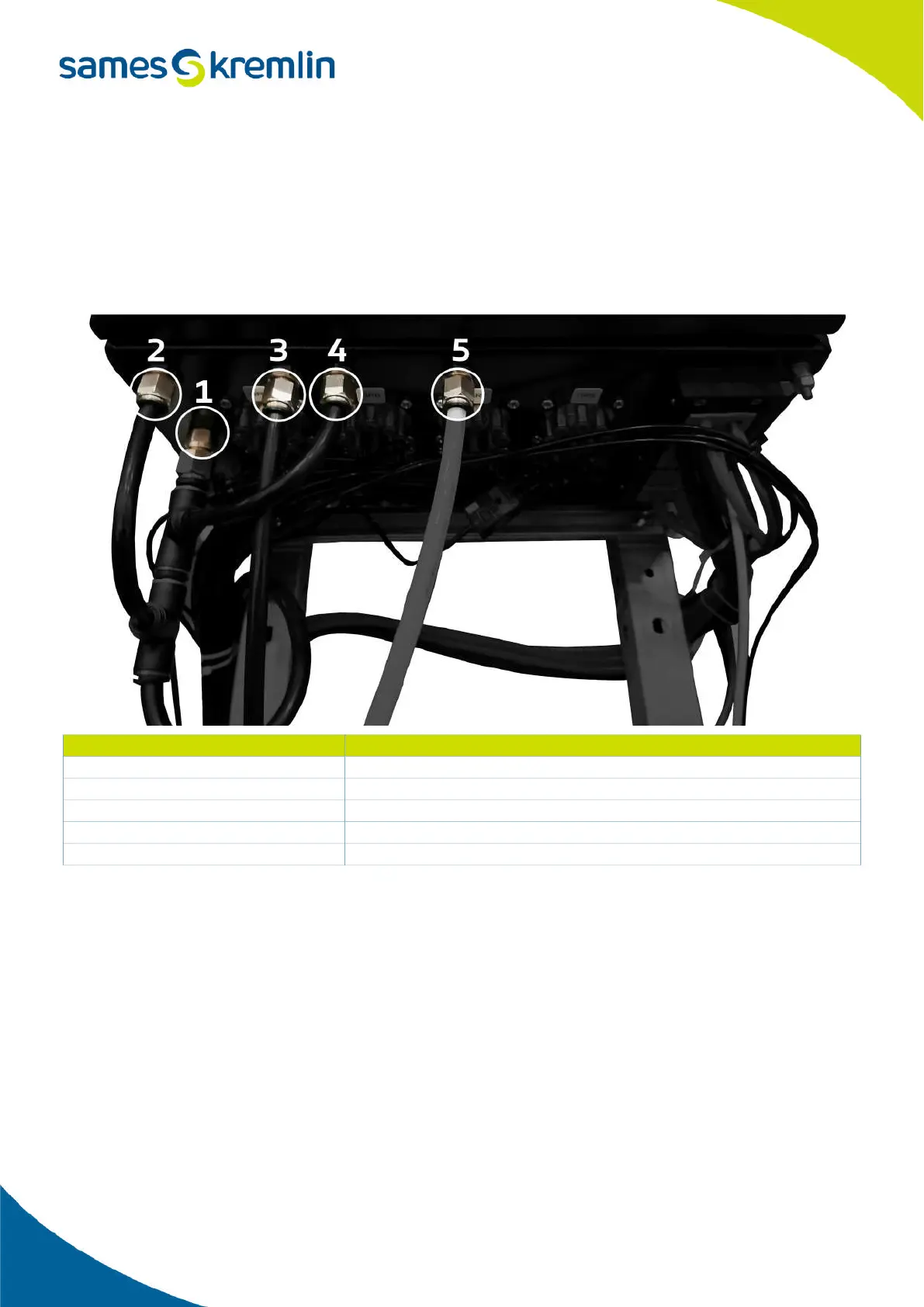

If the box is not equipped with debistats (AIRLESS or automatic mode) then the supply will be made directly at item
3 of the picture below.
If the box is equipped with one or two debistats, then the power supply is made directly on the connection TE 4 or 5.
Item Description
1 Power supply of the box
2 Power supply to debistats 1
3 Air outlet from debistat 1 to gun 1
4 Power supply to debistats 2
5 Air outlet from debistat 2 to gun 2
