5.2.19. Connection of the product valves
As with the mixing block valves, the connection of the product valves is made with a 4 mm diameter hose.
As the distribution of the products is configurable, the connection of the control hoses can only be carried out once
the configuration of the products has been completed.
The main cabinet can handle up to 35 products, the addition of an additional EVO+ cabinet will be necessary to
handle more than 35 products.
Below is a table showing the correspondence between the output numbers declared in the configuration and the
solenoid valves to which the pilot hoses are connected.
Control via I/O DIOB 1 card
Control via I/O DIOB 2 card

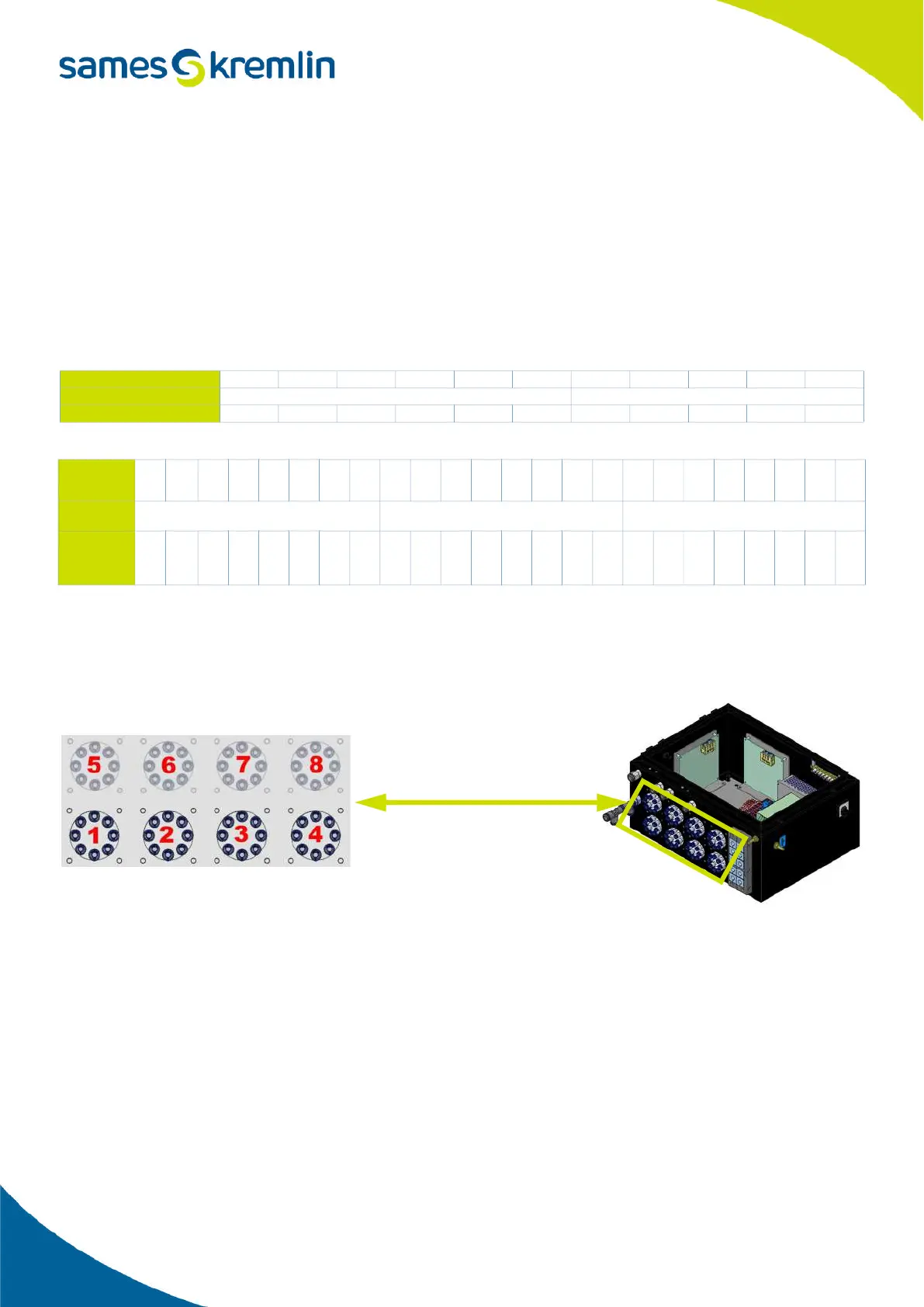

Position of the EV blocks
5.2.20. Connections of other functions
Number of product output 1 2 3 4 5 6 7 8 9 10 11
EV block number Block 1 Block 2
Position of the solenoid valve 1 2 3 4 5 6 1 2 3 4 5
Number of
product
output
12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35
EV block
number
Block 6 Block 7 Block 8
Position of
the
solenoid
valve
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
