2.3.2. Presentation of the electronic cards
2.3.2.1. Presentation of the CCB card

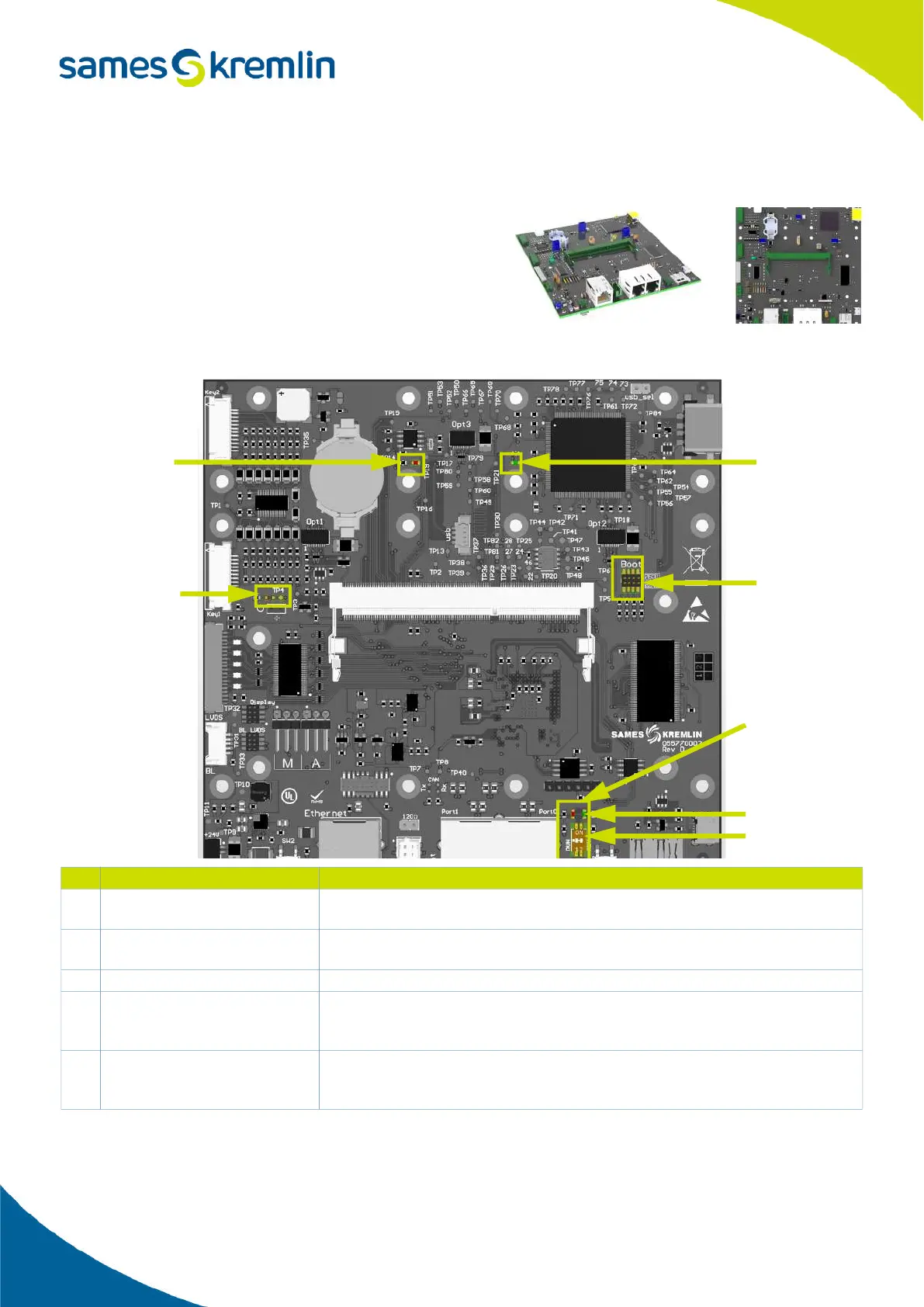

The CCB (Common Control Board) is the motherboard.
The CCB board manages the machine process and collects
information from the daughter boards.
LED description
# LED status Description
1 red LED
When ON it signals that the main chip is running.
• If it is not ON check that the boot jumper are in place (See7).
2 red LED
When ON it signals that the board is powered.
• If it is not ON check that the board is powered.
3 green LED When ON, it means that the bridge is on.
3 green LED (blinking)
When the LED flashes, this indicates an error on the bridge.
The user should try to restart the bus in the maintenance menu or restart the
machine completely.
4 green LED
LED RDY - The EtherCAT chip is running.
• User should check that both switches (See 6) are set to OFF and reboot the
cabinet.
3
7
2
1
5
4
6
