The various elements must be connected to the solenoid valves according to the table below:
5.2.21. Connection of an electrostatic box
If the applicator is an electrostatic gun, it is necessary to connect the high voltage box to the Cyclomix
®
Evo so that
the high voltage is cut off during the flushing or tinting phases.

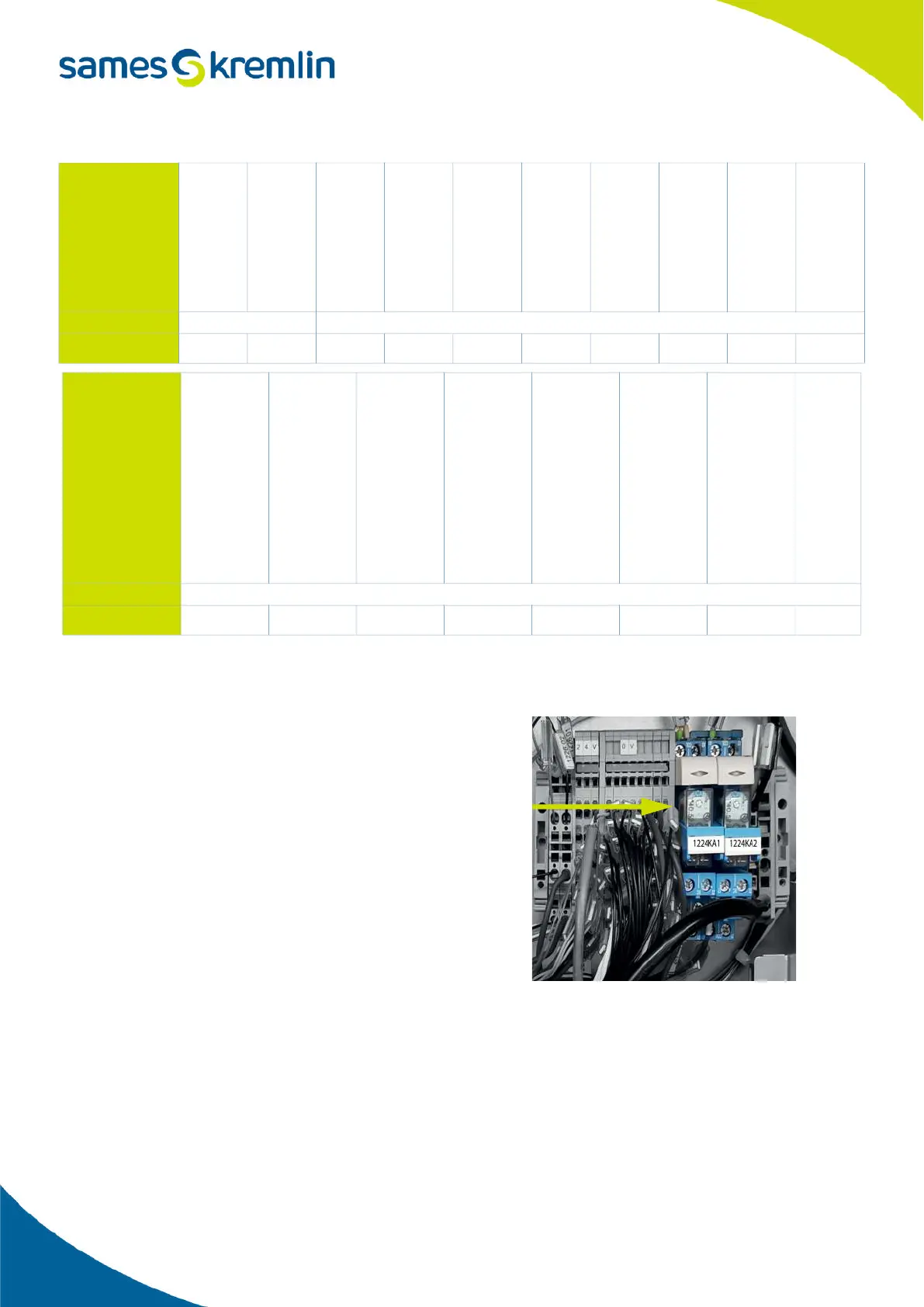

For this purpose, 2 relays are provided, 1 per gun, inside
the main box.
The 1224KA1 relay corresponds to gun 1 and the
1224KA2 relay corresponds to gun 2.
When using the GNM6080, it is possibleto connect the ''Trigger +'' contact ref. 110001967 directly to contact 24 of
the relay and also connect the 24V to contact 21.
It is also necessary to connect the ''Trigger -'' contact of the connector ref. 110001967 on the 0v terminal block.
It is also possible to connect the wire corresponding to the 220V power supply phase of an electrostatic box directly
to contact 24 of the relay and by connecting the phase of the main power supply of the box to contact 21 of the
relay.
Functions
Air chop
Flushing box
Gun 1
Quick drain valve 1 Quick drain valve 2
Test valve A
Test valve B
Test valve C
Flushing FB1 Flushing FB2
Air spraying 1
EV block number
Block 1 Block 3
Position of the
solenoid valve
7 8 1 2 3 4 5 6 7 8
Number of product
output
Flushing box
Gun 2
Flushing Gun 1 Flushing Gun 2
Gun 1 Gun 2
Working pressure regulator
Flushing pressure regulator
Air spraying 2
EV block number
Block 4
Position of the
solenoid valve
1 2 3 4 5 6 7 8
