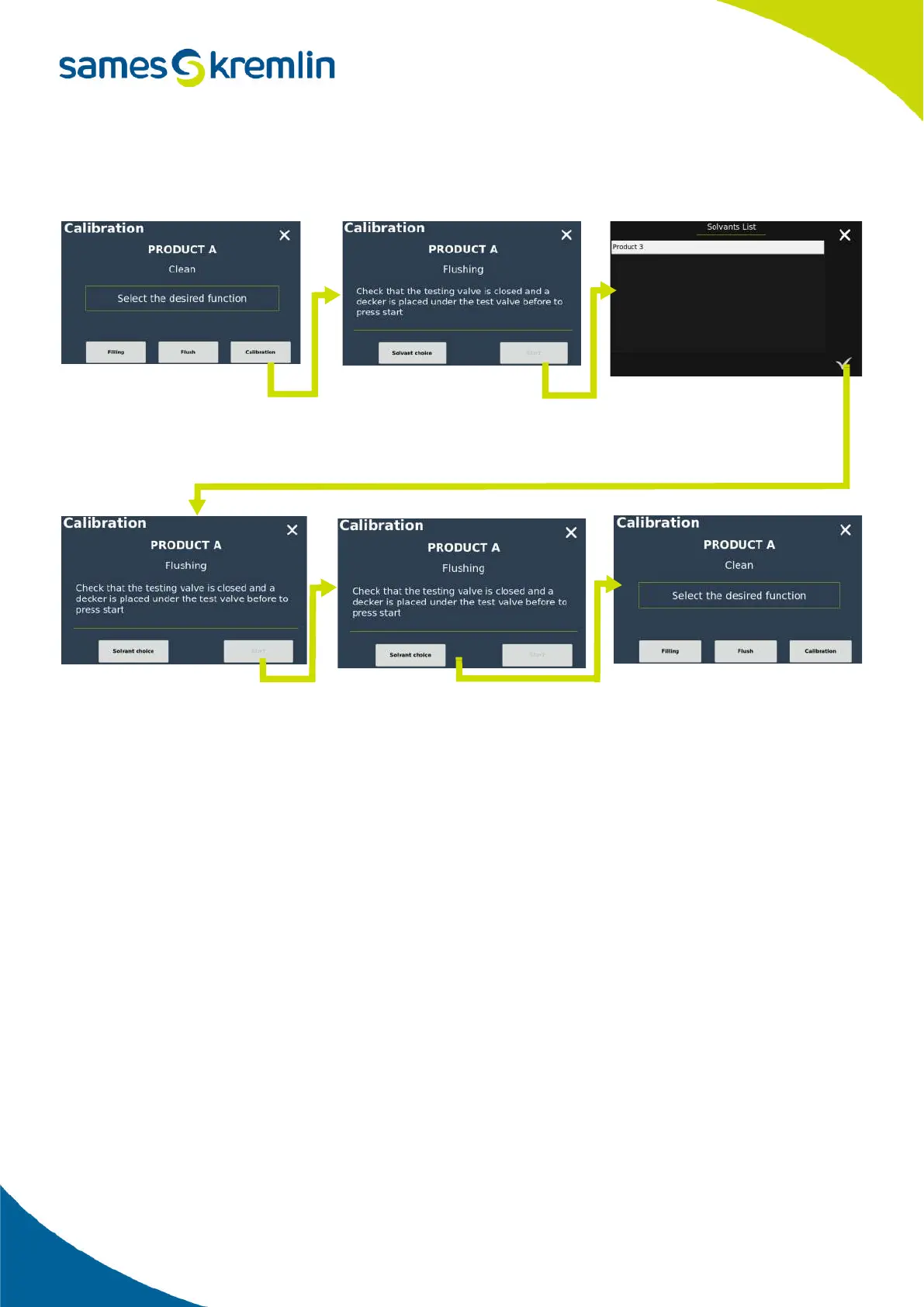

Circuit flushing phase
The flushing phase is imperative before leaving the calibration mode.
It will not be possible to leave the calibration mode without having performed a flushing.
2.5.4. Manage recipes
A recipe includes information about the dosage and mixing of products A, B and C in the case of a 3 component
mixture.
The information contained in a recipe is:The name of the recipe.
Choosing a product A.
The choice of a product B.
The choice of a product C in the case of a 3 components mixture.
The B/A ratio.
The C/A ratio in the case of a 3 component mixture.
The gain for the injection valve B (see glossary for the definition of gain).
The gain for injection valve C.
The flushing steps called production flushing.
Concerning the gain and flushing, it is possible either to let the machine define these parameters by itself by selecting
the autonomous mode or to define each parameter by itself.
