5.2.18. Test valves and AIRCHOP connections

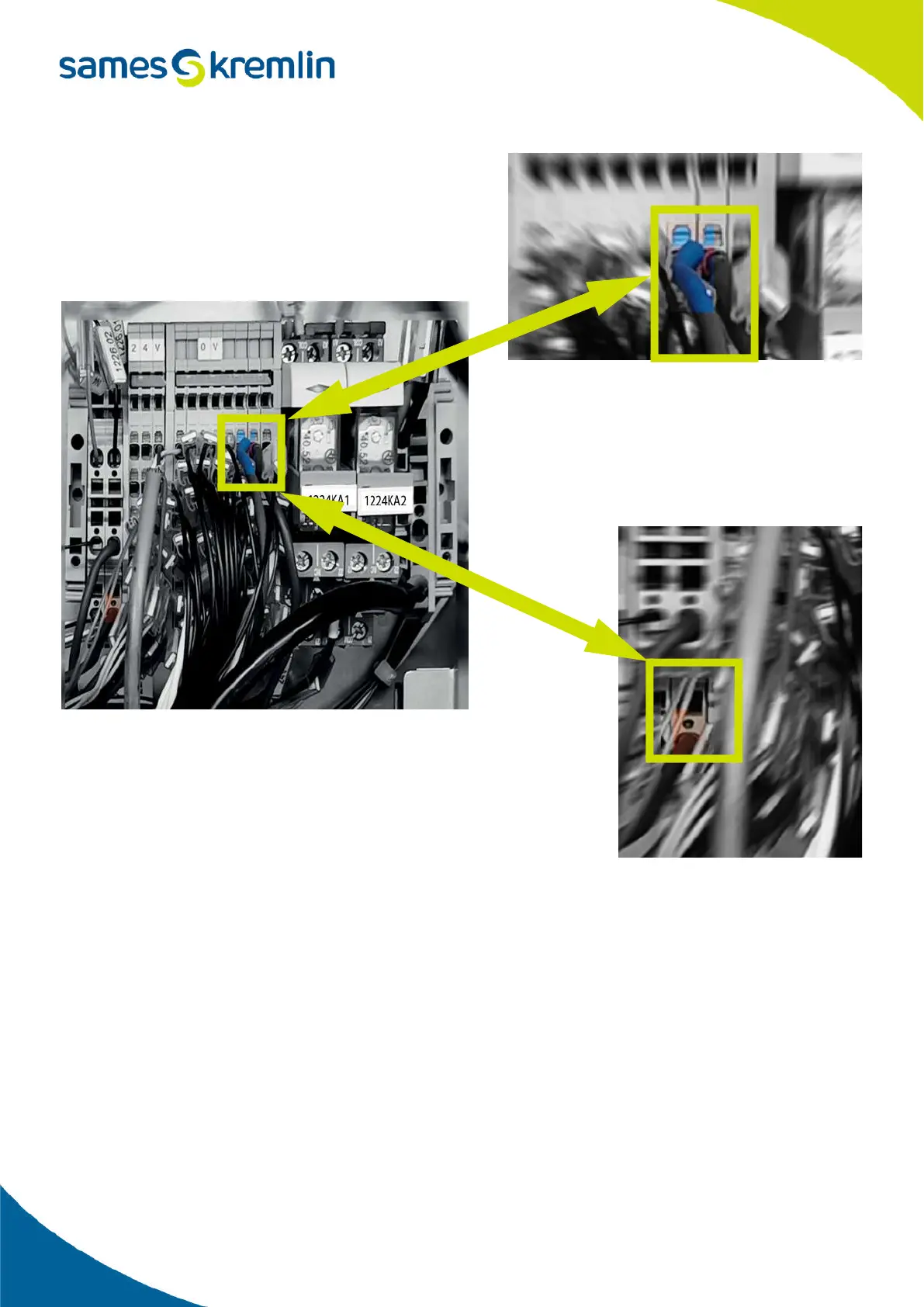

The test valves A and B are controlled via the outputs n° 17 and n°18 on the DIOB 1 card and then the solenoid
valves 3 and 4 of block n°3.
The AIRCHOP valve is controlled via output 22 on the DIOB 1 card and then the solenoid valve 7 of block n°1.
The connection between the valves and the solenoid control valves is made with a 4mm diameter pneumatic hose.
