Samson 3374 Series - Characteristic Level; User-defined Characteristic

7-6 EB 8331-4 EN
Start-up and conguration
Code Description WE Adjustment range
6 Application POSI POSI (positioner)
PID (PID controller)
2STP (two-step mode)
3STP (three-step mode)
POSF (temperature closed-loop
control upon input signal failure)
Positioner application (see AnnexA for description)
Î Set Code 6 to POSI.
Î Perform the connection as described in the 'Installation' section.
%
Displayed reading: travel

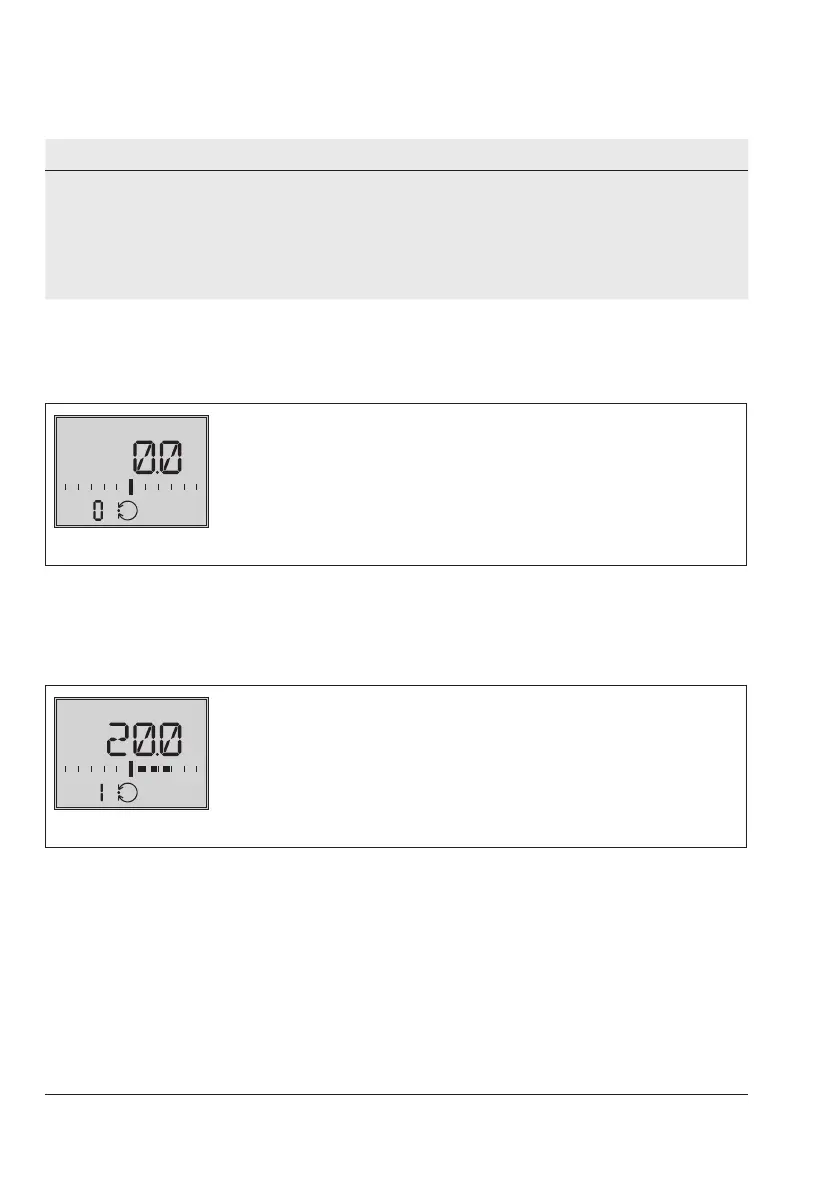

Fig.7-1: Start screen with positioner application (POSI)
PID controller application (see AnnexA for description)
Î Set Code 6 to PID.
Î Perform the wiring as described in the 'Installation' section.
%
Displayed reading: process variable
Fig.7-2: Start screen with PID controller application (PID)
Two-step mode application (see AnnexA for description)
Î Set Code 6 to 2STP.
Î Perform the connection as described in the 'Installation' section.
