Electrical connection
_
+
_
+
M-Bus (TROVIS 5573-110x)
M-Bus (TROVIS 5573-110x)
08
09
10
11
12
13
14
15
16
17
01
02
03
04
05
06
07
UP1
SLP
ZP/UP2
RK1_3-step
RK2_3-step
RK1_On/off
RK2_On/off/TLP/CP
AF1
SF1
SF2/RF2
RüF2
RF1
RüF1
VF1
VF2/3/4
BE1/FG1
BE2/FG2
+ 10 V
in
/10 V
out
_
Sensor COM
25
26
27
28
30
27
29
30
31
32
33
34
18L1
L1
L1
L1
L1
19N
20
21
22
23
24
AF Outdoor sensor CP Solar circuit pump
BE Binary input RK Control circuit
FG Potentiometer UP Circulation pump (heating)
RF Room sensor SLP Storage tank charging pump
RüF Return ow sensor TLP Heat exchanger charging pump
SF Storage tank sensor ZP Circulation pump (DHW)
VF Flow sensor

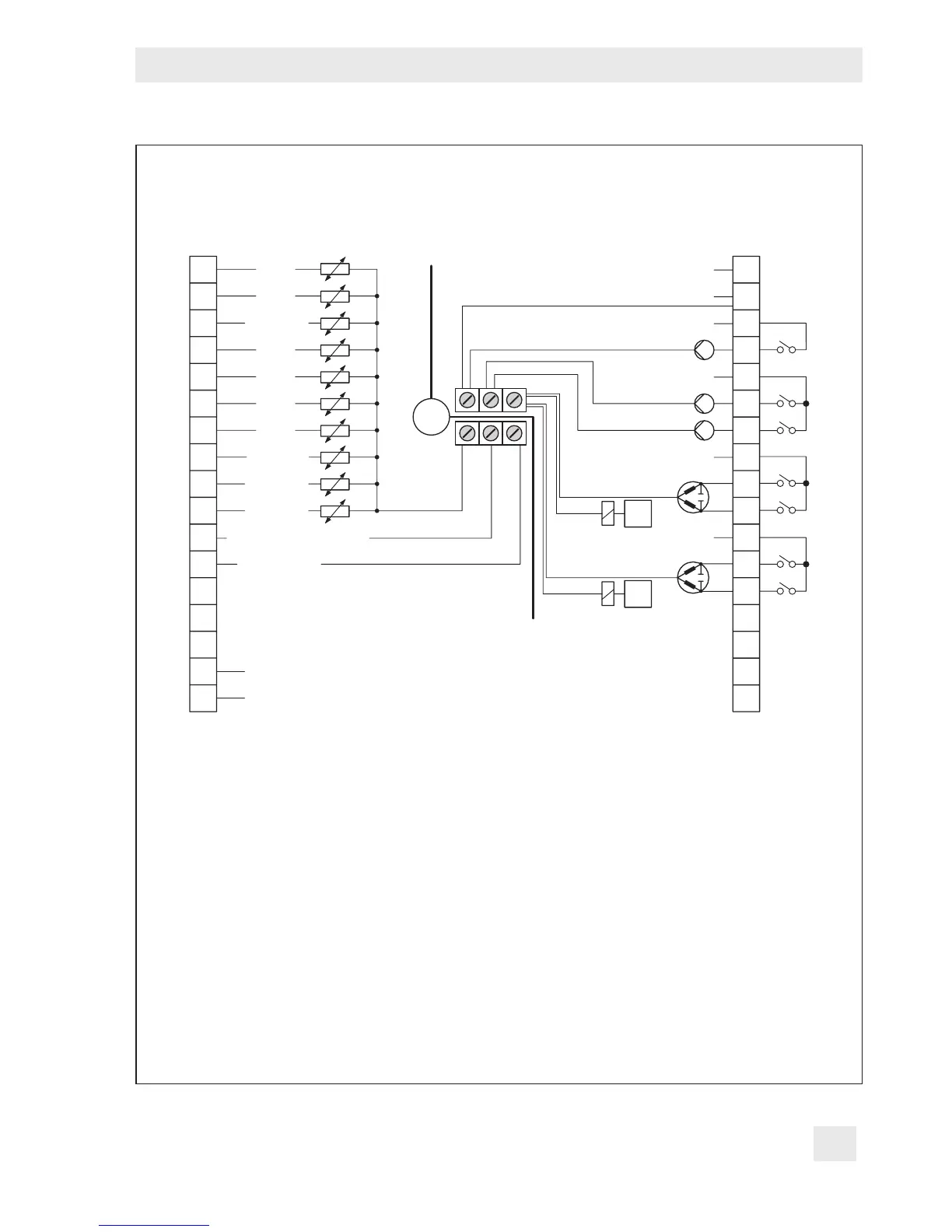

Fig. 12: Connection of TROVIS 5573 Controller with standard base
