Samson TROVIS 5500 - Parameter Lists

144 EB 5573-1 EN
Appendix
13.2 Parameter lists

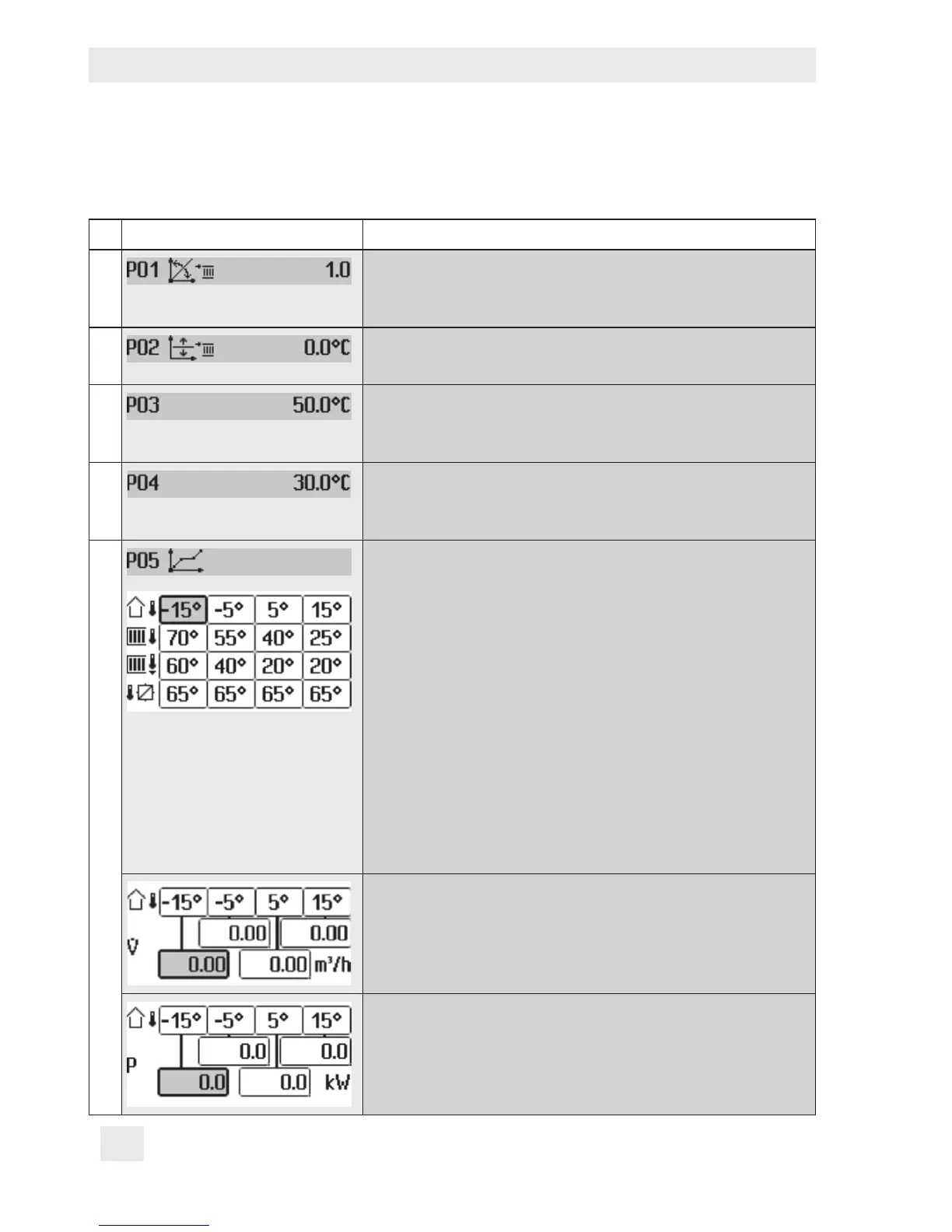

PA1: Heating circuit HC1
P Display reading Parameter: Value range (default setting)
01
Flow gradient:
0.2 to 3.2 (1.8)
0.2 to 1.0 (1.0) with CO1, 2 > F05 - 1
02
Level (parallel shift):
–30.0 to 30.0°C (0.0°C)
03
Flow set point (day) (only with CO1 > F02 - 0 and CO1 >
F09 - 1):
–5.0 to 150.0°C (50.0°C)
04
Flow set point (night) (only with CO1 > F02 - 0 and CO1 >
F09 - 1):
–5.0 to 150.0°C (30.0°C)
05
Four-point characteristic
Outdoor temperature:
–50.0 to 50.0°C (–15.0°C, –5.0°C, 5.0°C, 15.0°C)
with CO1 > F04 -1: (5°C, 15°C, 25°C, 30°C)
Flow temperature:
5.0 to 130.0°C (70.0°C, 55.0°C, 40.0°C, 25.0°C)
with CO1 > F04 -1: (20°C, 15°C, 10°C, 5°C)
Reduced ow temperature:
–5.0 to 150.0°C (60.0°C, 40.0°C, 20.0°C, 20.0°C)
with CO1 > F04 -1: (30°C, 25°C, 20°C, 15°C)
Return ow temperature:
5.0 to 90.0°C (65.0°C, 65.0°C, 65.0°C, 65.0°C)
Flow rate:
0.00 to 650m³/h (0.00m³/h, 0.00m³/h, 0.00m³/h, 0.00m³/h)
Capacity:
0.0 to 6500kW (0.0kW, 0.0kW, 0.0kW, 0.0kW)
