Functions of the heating circuit
6.1.2 Four-point characteristic
The four-point characteristic allows you to dene your own heating characteristic. It is de-
ned by four points for the outdoor temperature, ow temperature, reduced ow temperature
and return ow temperature. The 'Max. ow temperature' and 'Min. ow temperature' pa-
rameters mark the upper and lower limits of the ow temperature.
t
VLmax
t
VLmin
t
VL
100
90
80
70
60
50
40
30
20
10
[˚C]20 15 10 50–5 –10 –15 –20
P1
P2
P3
P4
[˚C]
t
A
P1 to P4 Points 1 to 4
t
VL
Flow temperature
t
A
Outdoor temperature
- - -min Min. ow temperature
- - - max Max. ow temperature
––––––––– Four-point characteristic
– – – – – – Reduced four-point
characteristic

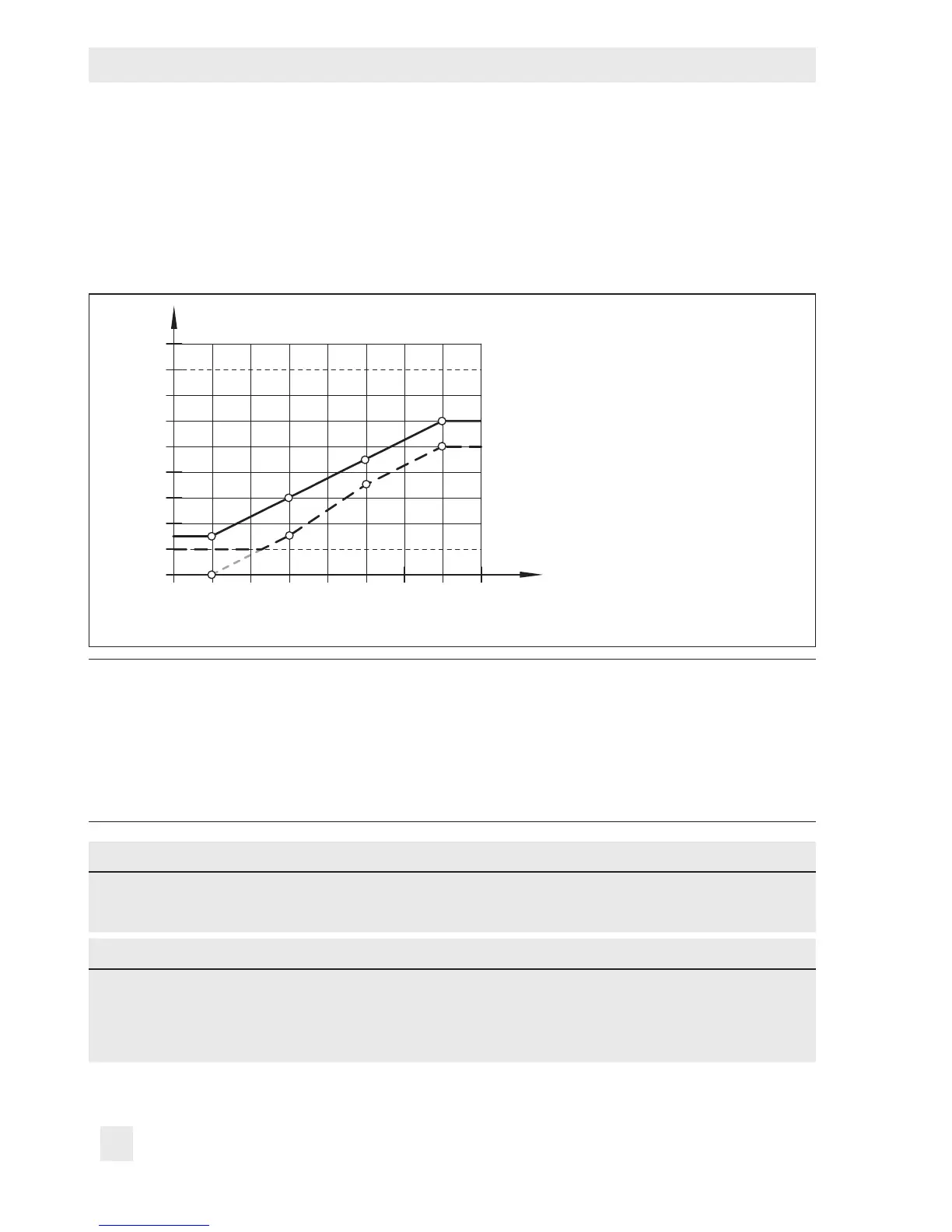

Fig. 4: Four-point characteristic
Note:
− The 'Day set point' and 'Night set point' parameters are no longer available when
the four-point characteristic has been selected, provided no additional functions
(e.g. optimization, ash adaptation) have been selected.
− The four-point characteristic function can only be activated when the adaptation
function is not active (CO1, 2 > F08 - 0).
Functions WE Conguration
Adaptation 0 CO1, 2 > F08 - 0
Four-point characteristic 0 CO1, 2 > F11 - 1
Parameters WE Parameters: value range
Outdoor temperature Point 1
Point 2
Point 3
Point 4
–15.0°C
–5.0°C
5.0°C
15.0°C
PA1, 2 > P05: –50.0 to 50.0°C

