Operation

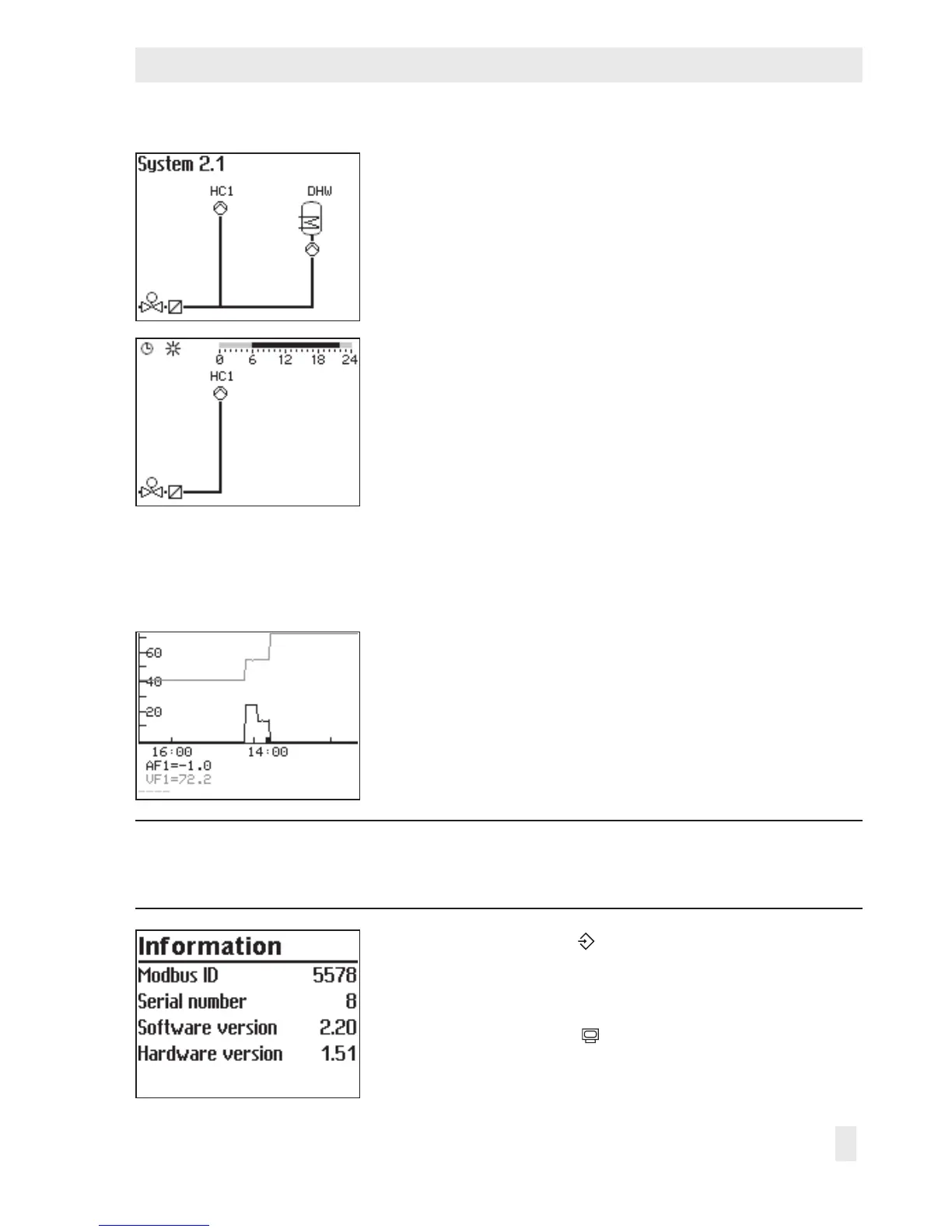

q Selected system code number
For further details, refer to section3.1.
¼ Important measured values of the entire system, e.g. out-
door temperature, ow temperature and return ow tem-
perature, are displayed.
q Times-of-use (depending on system code number)
– Heating circuit HC1
– Heating circuit HC2
– DHW heating
The day mode times is highlighted in black on the time
chart.
Night mode and deactivation times are highlighted in
gray on the time chart.
For further details, refer to section2.5.
¼ Measured values, set points and limits of the system sec-
tion shown are displayed.
q Trend-Viewer
The standard graph shows the data measured at the out-
door sensor AF1 and ow sensor VF1 plotted over time.
For further details, refer to section2.2.1.
Note:
Details on the controller version (device identication, serial number, software and
hardware versions) are displayed in the extended operating level.
Turn the rotary switch to (settings).
q Enter key number 1999.
¼ Conrm key number.
Turn the rotary switch to
(operating level).
q Select 'Information'.

