Santerno Sinus M - 10.6 Slip compensation

10-11
 H33: Enter the motor nameplate rated current.
 H34: Enter the measured current when the motor is running at rated frequency without load. Enter 50%
of the rated motor current when it is difficult to measure the motor no load current.
 H36: Enter motor efficiency as shown on the nameplate.
 H37: Select load inertia related to the motor inertia as shown below.
H37
[Load inertia
rate]
0
Less than 10 times motor
inertia
1 About 10 times motor inertia
2
Greater than 10 times motor
inertia

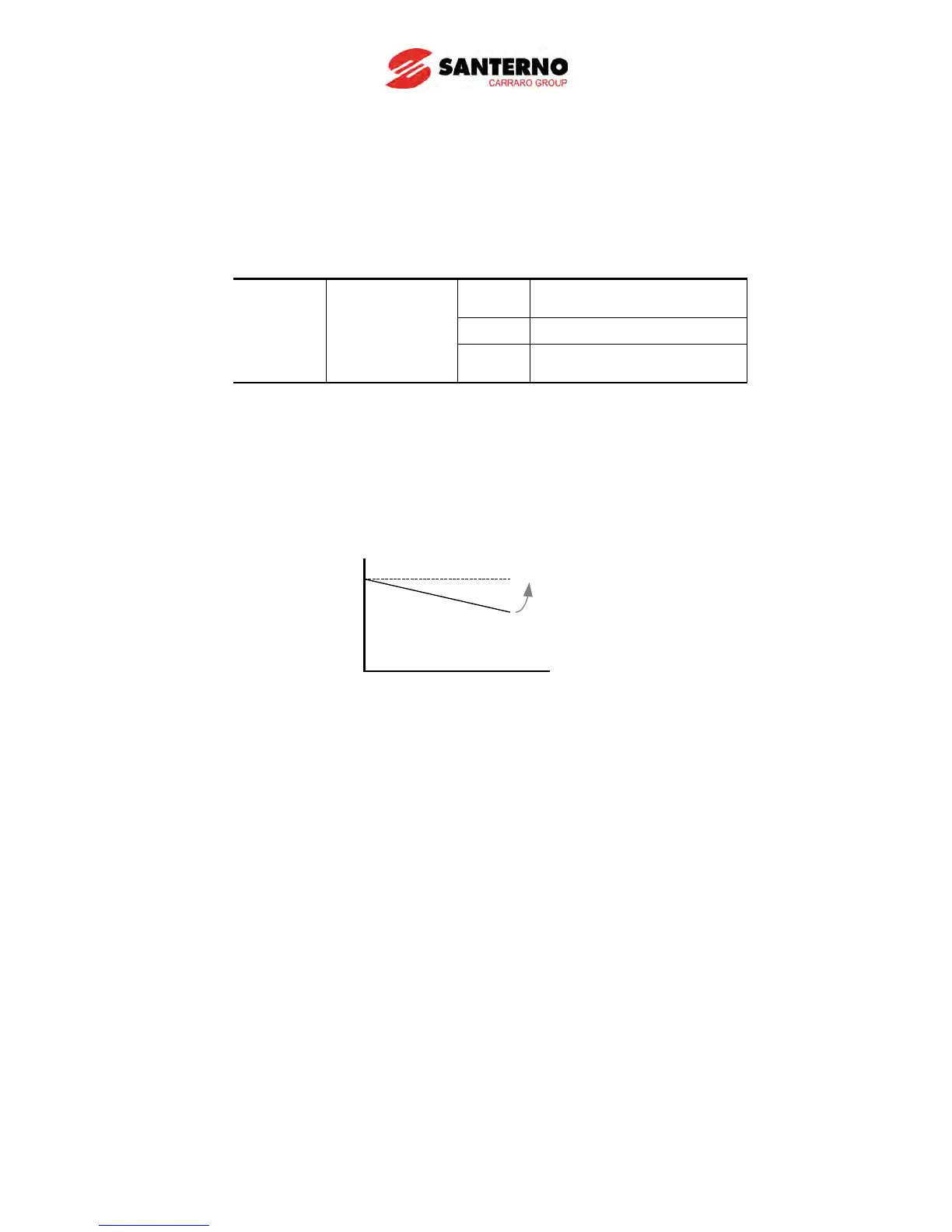

 As the loads are heavier, the speed gap between rated RPM and synchronous speed is greater (see
the figure below). This function compensates the speed gap due to the slip.
Synchronous
speed
Motor rated
RPM
RPM
Load
Slip
compensation
