Santerno Sinus M - Specifications (Continued); Protective function; Environment; 15.1 Temperature Derating Information

15-4
 Protective function
Trip
Over Voltage, Under Voltage, Over Current, Over Current2, Ground Fault current
detection, Inverter Overheat, Motor Overheat, Output Phase Open, Overload
Protection, Communication Error, Loss of Speed Command, Hardware Fault, Fan trip,
Brake error
Alarm
Stall prevention, overload
Momentary
Power
Loss
Below 15 msec: Continuous operation (should be within rated input voltage, rated
output power).
Above 15 msec: Auto restart enable
 Environment
Degree of
protection
IP20
Ambient temp
–10
°
C ~ 50
°
C
Storage temp
–20
°
C ~ 65
°
C
Humidity
Below 90% RH (no condensation)
Altitude/Vibration Below 1,000m, 5.9m/sec
2
(0.6G)
Atmospheric
pressure
70~106 kPa
Location Protected from corrosive gas, combustible gas, oil mist or dust

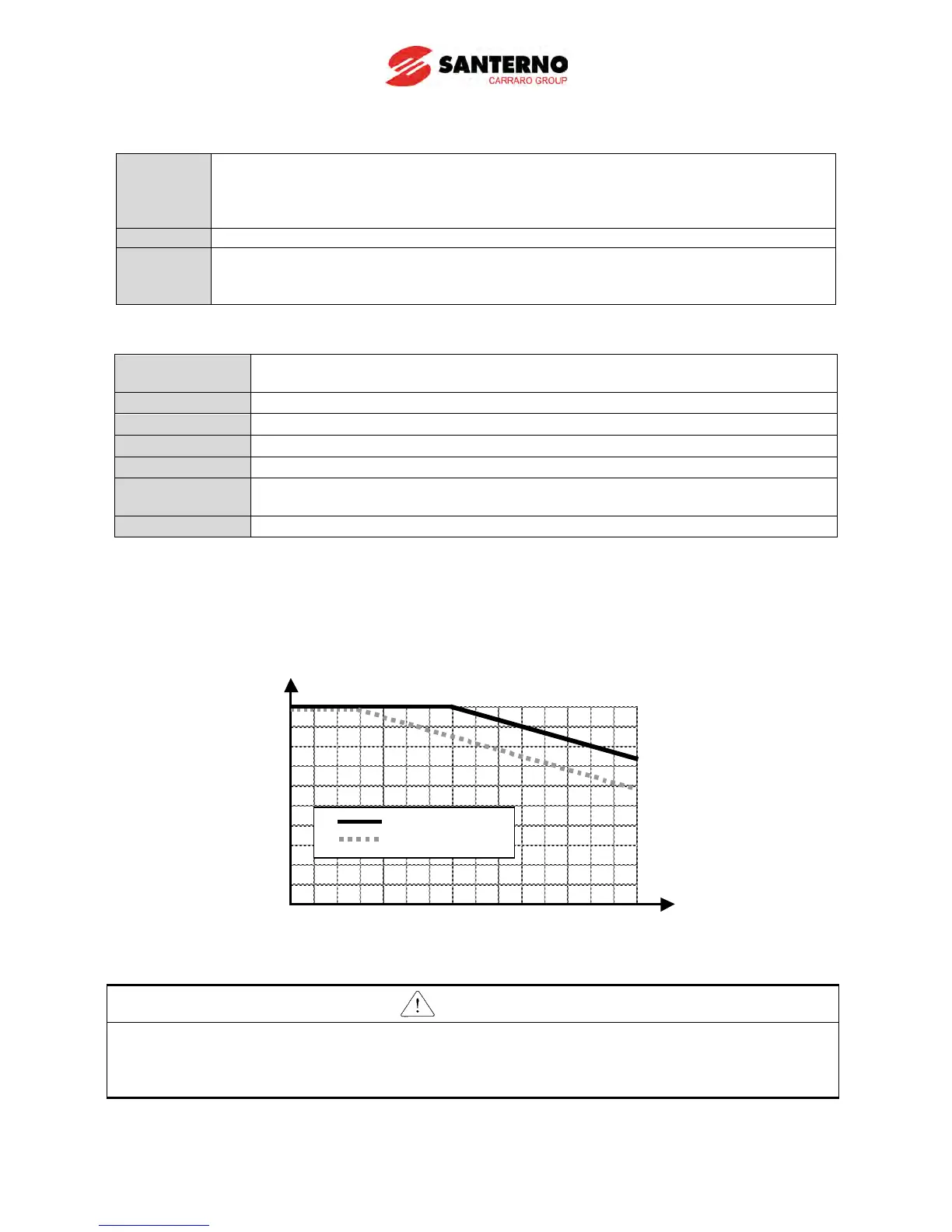

15.1 Temperature Derating Information
 Load and ambient temperature classified by the Carrier Frequency
CAUTION
1) The above graph is only applied when the inverter is operated in the allowable temperature. Pay
attention to the air cooling when the inverter is installed in a panel box, and the inside temperature
should be within an allowable temperature range.
2) This derating curve is based on inverter current rating when rated motor is connected.
% of Drive
Rated Amps
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0
Carrier Frequency in kHz
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
72%
58%
40℃ Rating
41℃ ~ 50℃ Rating
