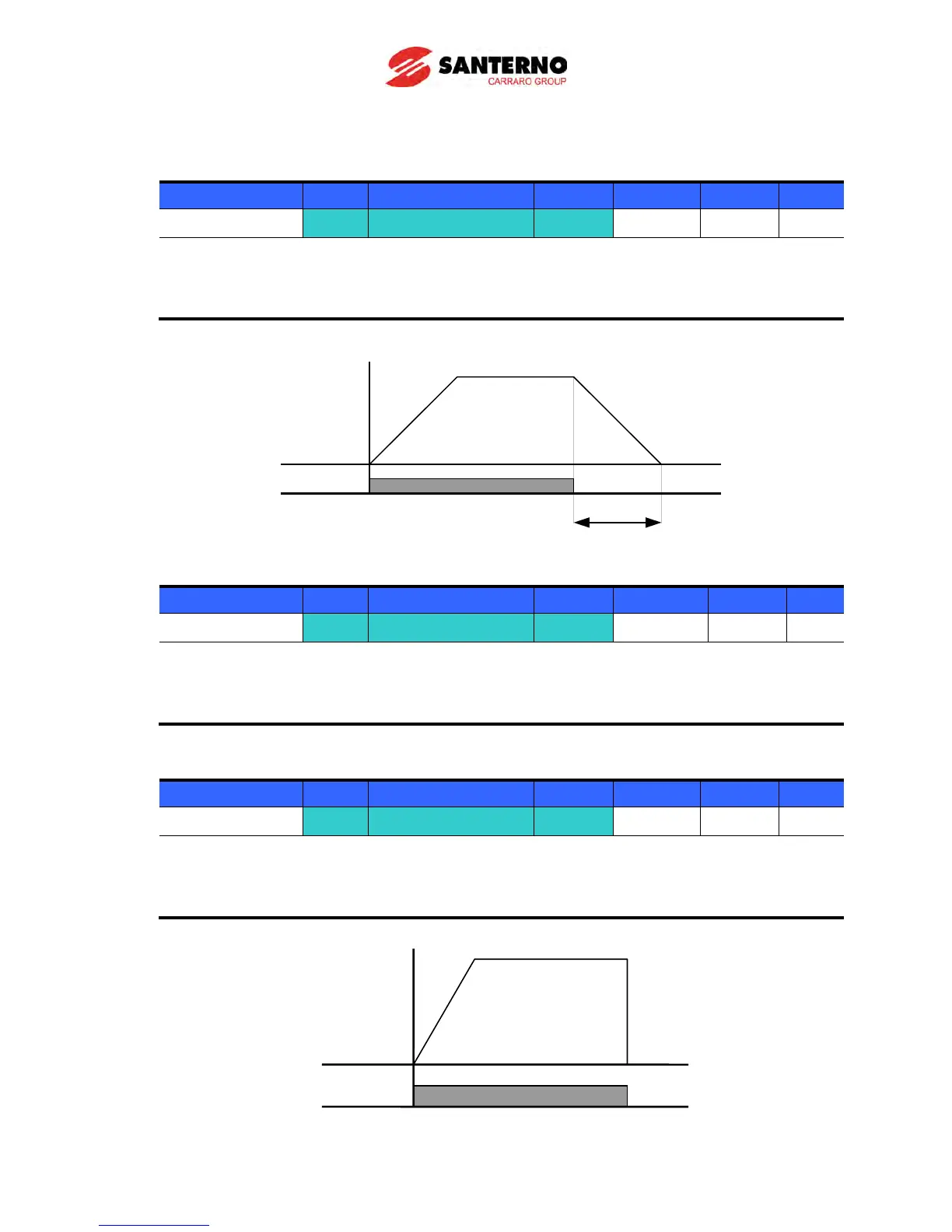

9.6 Stop method select
 Decel to stop
Group Code Parameter Name Setting Range Initial Unit
Function group 1
F4 [Stop mode select] 0
0 ~ 3 0

Select 0 {Decel to stop} in F4 code.
 Motor decelerates to 0 Hz and stops during the time set.
 DC braking to stop
Group Code Parameter Name Setting Range Initial Unit
Function group 1
F4 [Stop mode select] 1
0 ~ 3 0

Select 1 {DC brake to stop} in F4 code.
 Refer to page 10-1.
 Coast to stop
Group Code Parameter Name Setting Range Initial Unit
Function group 1
F4 [Stop mode select] 2
0 ~ 3 0

Select 2 { Coast to stop } in F4 code.
 When RUN command is OFF, Output Frequency and voltage are shut down.
Operating
command
Freq.
Decel
time
Operating Command
Freq, Voltage
