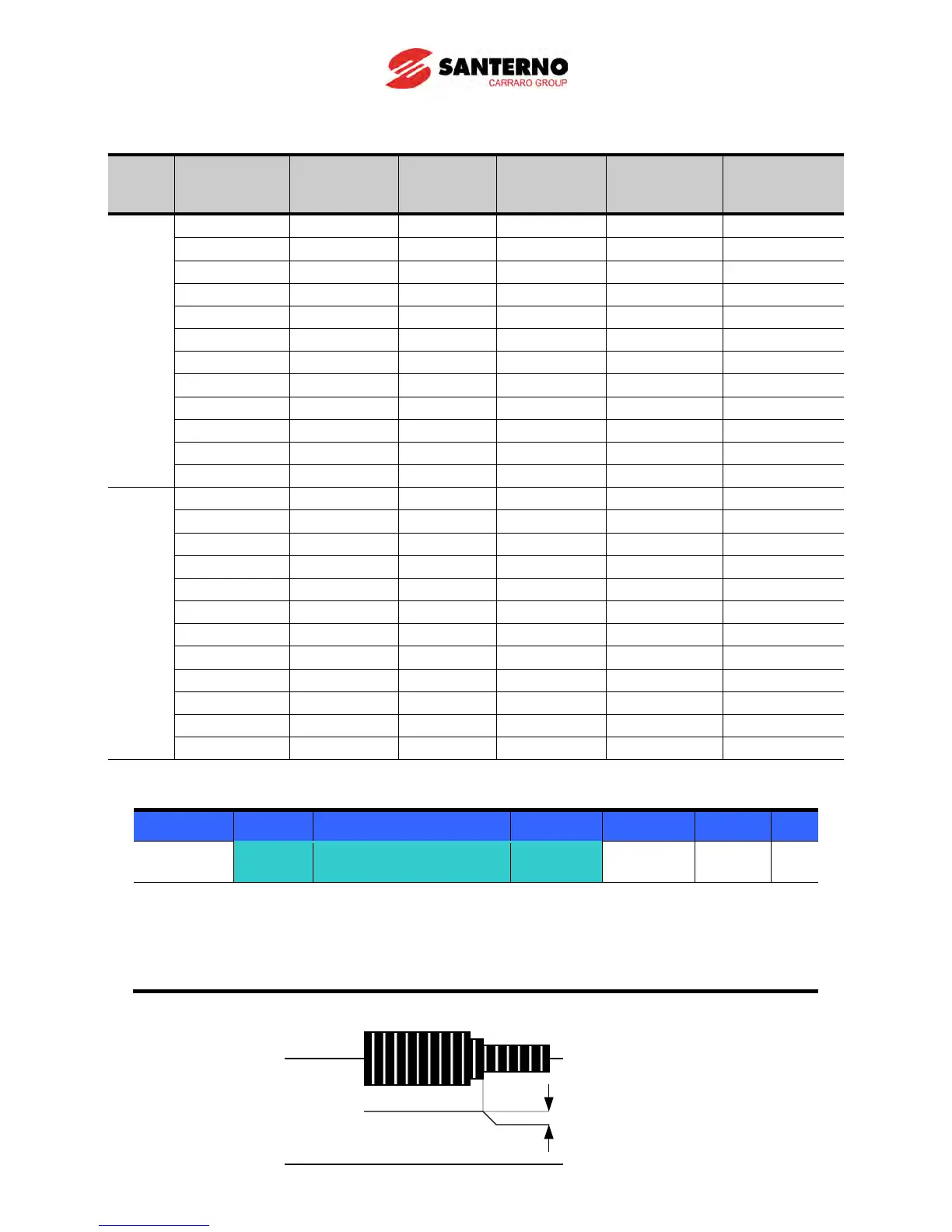

Santerno Sinus M - 10.10 Energy-saving operation

10-27
 Factory default by motor ratings
Input
voltage
Motor rating
[kW]
Current
rating [A]
No-load
current [A]
Rated slip
freq
[Hz]
Stator
resistance [Ω]
Leakage
inductance
[mH]
200
0.2 1.1 0.6 2.33 14.0 122.00
0.4 1.8 1.2 3.00 6.70 61.00
0.75 3.5 2.1 2.33 2.46 28.14
1.5 6.5 3.0 2.33 1.13 14.75
2.2 8.8 4.4 2.00 0.869 11.31
3.7 12.9 4.9 2.33 0.500 5.41
5.5 19.7 6.6 2.33 0.314 3.60
7.5 26.3 11.0 2.33 0.196 2.89
11.0 37.0 12.5 1.33 0.120 2.47
15.0 50.0 17.5 1.67 0.084 1.12
18.5 62.0 19.4 1.33 0.068 0.82
22.0 76.0 25.3 1.33 0.056 0.95
400
0.2 0.7 0.4 2.33 28.00 300.00
0.4 1.1 0.7 3.0 14.0 177.86
0.75 2.0 1.3 2.33 7.38 88.44
1.5 3.7 2.1 2.33 3.39 44.31
2.2 5.1 2.6 2.00 2.607 34.21
3.7 6.5 3.3 2.33 1.500 16.23
5.5 11.3 3.9 2.33 0.940 10.74
7.5 15.2 5.7 2.33 0.520 8.80
11.0 22.6 7.5 1.33 0.360 7.67
15.0 25.2 10.1 1.67 0.250 3.38
18.5 33.0 11.6 1.33 0.168 2.46
22.0 41.0 13.6 1.33 0.168 2.84
10.10 Energy-saving operation
Group Display Parameter Name Setting Range Default Unit
Function
group 1
F40
[Energy-saving
operation]
-
0 ~ 30 0 %

Set the amount of output voltage to be reduced in F40.
 Set as the percent of Max output voltage.
 For fan or pump applications, energy consumption can be dramatically reduced by
decreasing the output voltage when light or no load is connected.
Current
Output voltage
F40
