Santerno Sinus M - 9.7 Frequency limit; Frequency limit using Max Frequency and Start Frequency; Frequency command limit using High;Low limit

9-21

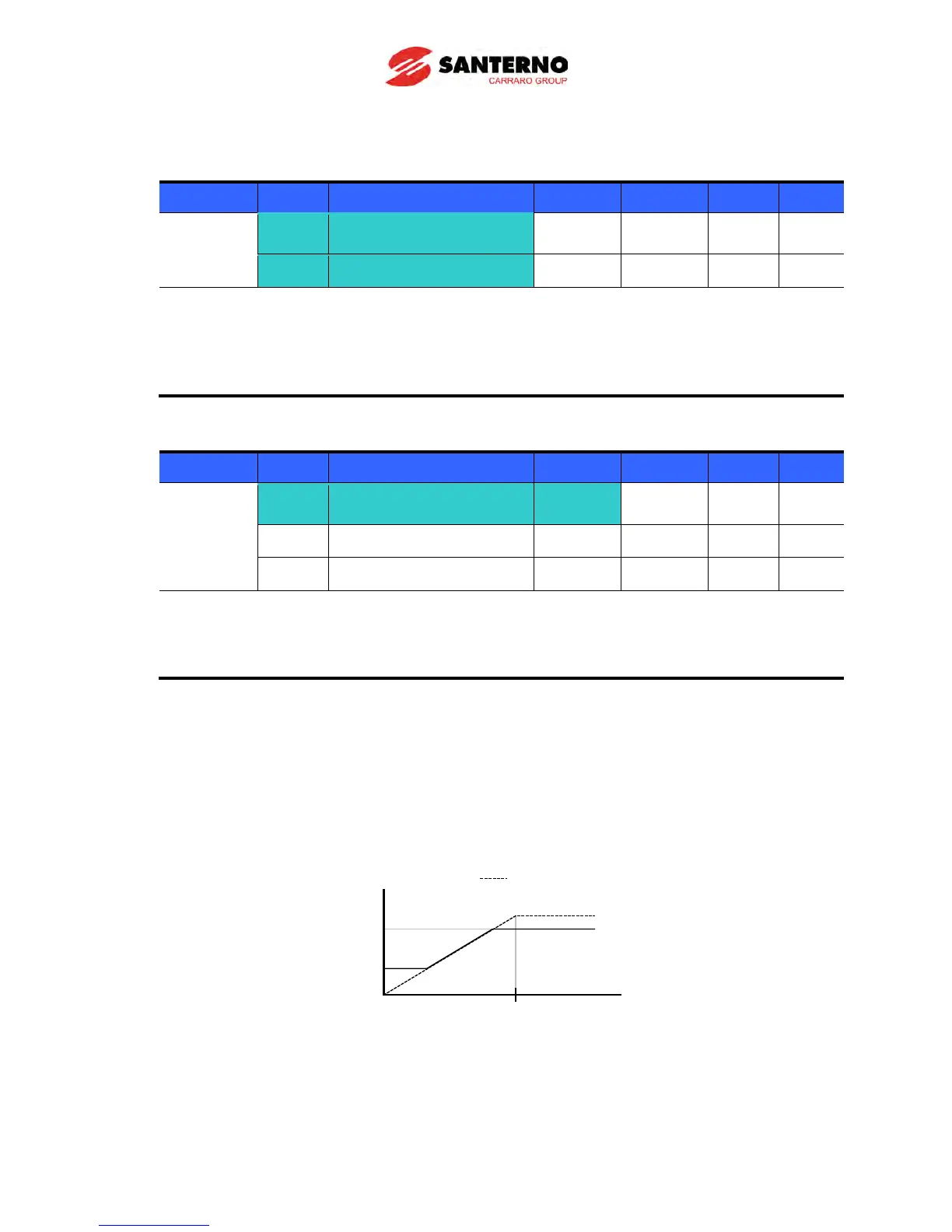

9.7 Frequency limit
 Frequency limit using Max Frequency and Start Frequency
Group Code Parameter Name Setting Range Initial Unit
Function
group 1
F21 [Max frequency]
- 0 ~ 400 50.00 Hz
F23 [Start frequency]
- 0.1 ~ 10 0.50 Hz

Max Frequency: Frequency highest limit. Any frequency cannot be set above [Max
frequency] except for F22 [Base frequency].
 Start Frequency: Frequency lowest limit. Until a frequency reference is set lower than this,
0.00 output frequency is automatically set.
 Frequency command limit using High/Low limit
Group Code Parameter Name Setting Range Initial Unit
Function
group 1
F24
[Frequency high/low
limit select]
1
0 ~ 1 0
F25 [Frequency high limit] - 0 ~ 400 50.00 Hz
F26 [Frequency low limit] - 0 ~ 400 0.50 Hz

Set F24 to 1.
 Active run frequency can be set within the range of F25 and F26.
 When frequency setting is done via Analog input (voltage or current input), the inverter operates within
the range of high and low limit frequency as shown below.
 This setting is also valid when frequency setting is done via keypad.
Freq.
V1(Voltage input)
Max freq.
0 20mA
10V
I (Current input)
High limit
freq.
Low limit
freq.
When freq. limit is not
selected
