Santerno Sinus M - 10.16 Frequency setting and 2 nd drive method select

10-36
FX
Output Freq.
1 2
30.00
Communication FX
P8 : 2nd Change
3 4 5

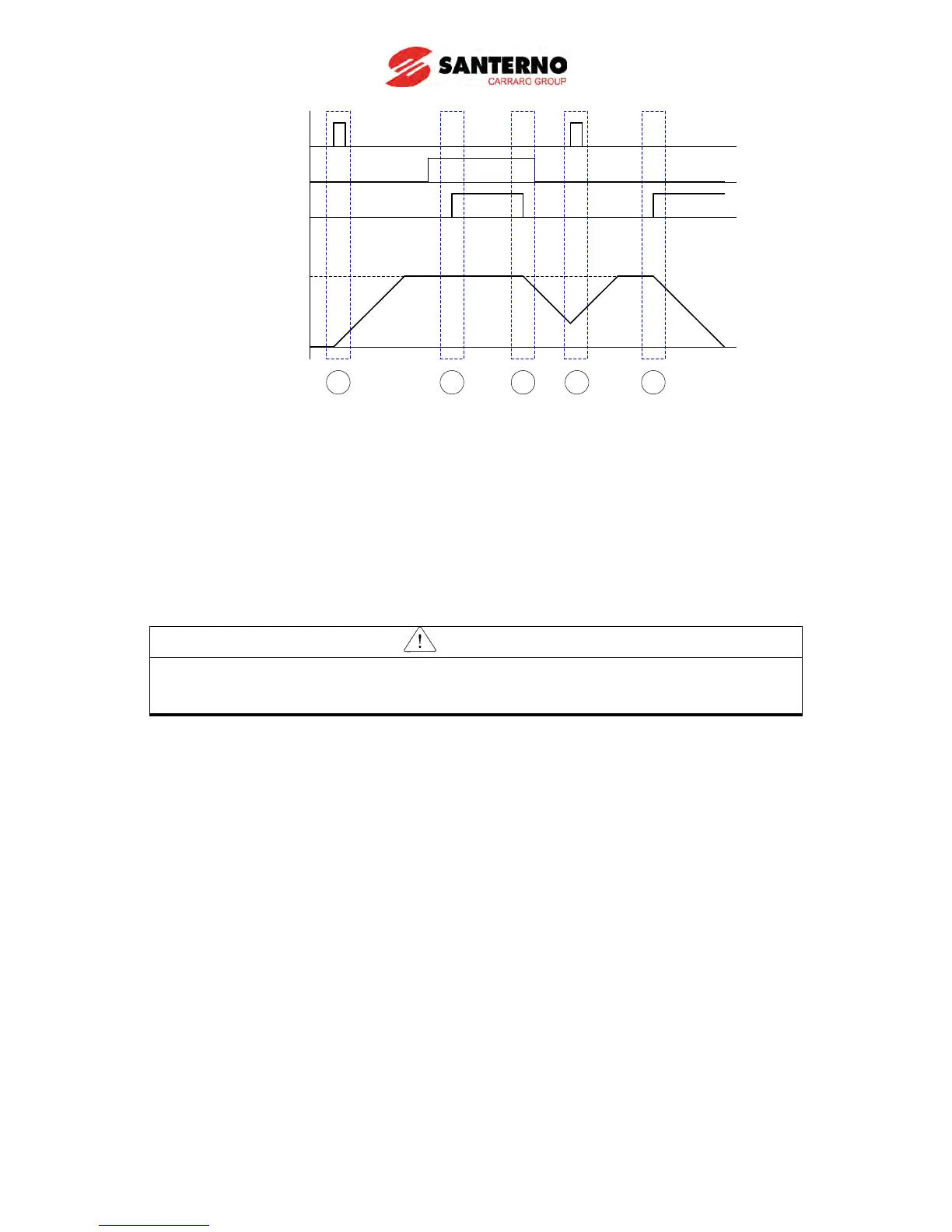

① Accelerate for accel time up to setting frequency by Drive 1 mode, FX signal.
② Drive continuously under FX is ON because DRV2 is 1 when P8 terminal input is ON and
change into 2
nd
.
③ Stop gradually as stop command because DRV is communication drive when P8 terminal
input is OFF and change into 1st.
④ Accelerate up to setting frequency for Drive 1 mode, FX signal is ON.
⑤ Stop gradually under FX is OFF because DRV2 is 1 when P8 terminal input is ON and
change into 2
nd
.
CAUTION
If you press ON while multi-function input terminal (P1 ~ P8) is set to 2
nd
Source,
frequency command and drive command is changed to Drive mode 2. So you
should check Drive mode 2 before configuring the multi-function terminal.
