Santerno Sinus M - 11.5.1 A, B Contact selection; 11.5.2 A, B Contact On;Off delay

11-13

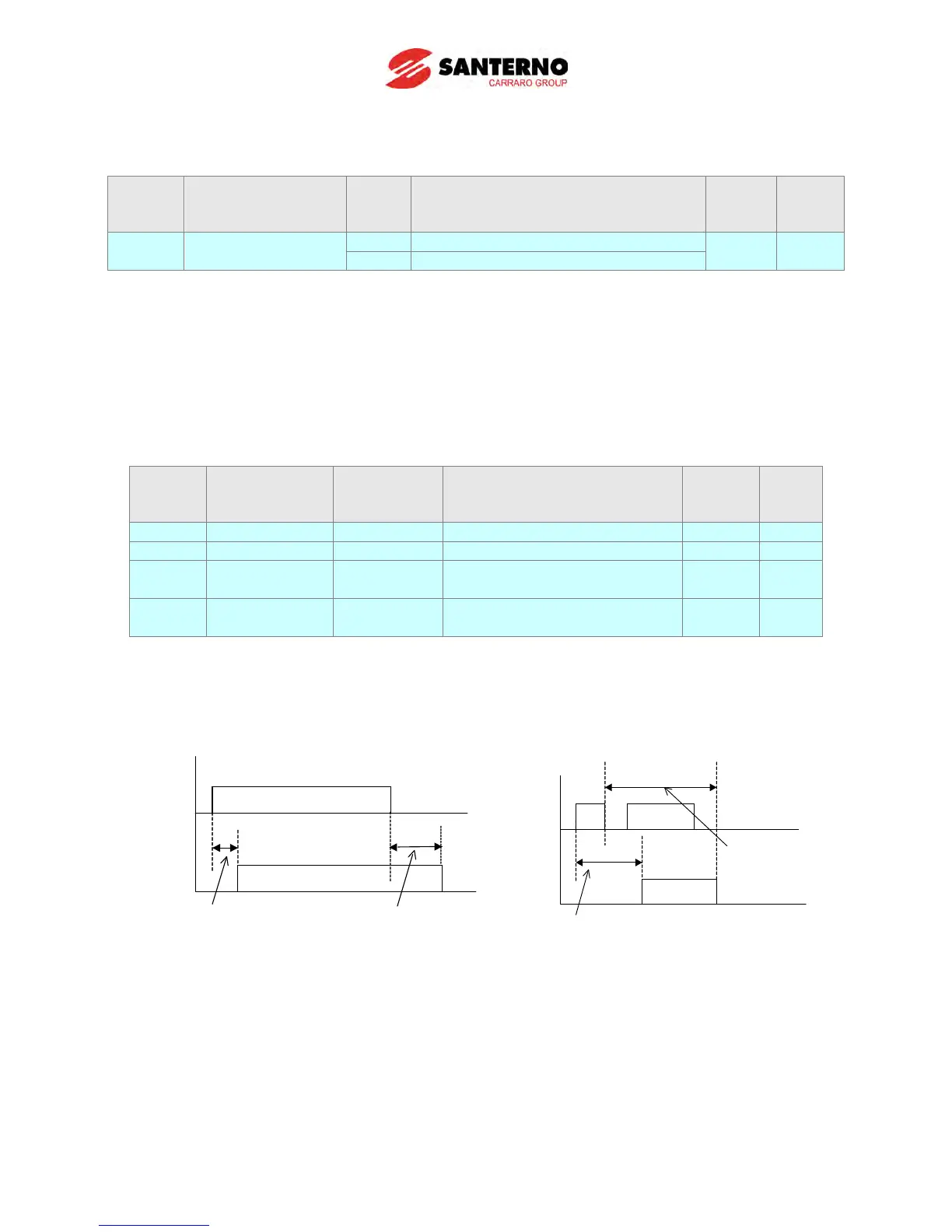

11.5.1 A, B Contact selection
LED
display
Parameter name
Setting
range
Description
Factory
defaults
Adj.
During
run
I91
A, B Contact
selection
0
A Contact (Normal open)
0 O
1
B Contact (Normal Close)
- This function code is for selecting the Contact type of multifunction transistor Digital output MO.
MO contact type is A contact (normally open) when setting value is “0”, and B contact (normally
closed) when setting value is “1”.
- Multifunction relay digital output 3 A,B,C does not need this function, because this relay has
already both A, B Contacts.
11.5.2 A, B Contact On/Off delay
LED
display
Parameter
name
Setting
range
Description
Factory
defaults
Adj.
During
Run
I92
MO On delay
0.0~10.0 sec
MO contact On delay time
0.0 sec
X
I93
MO Off delay
0.0~10.0 sec
MO contact Off delay time
0.0 sec
X
I94
30A,B,C On
delay
0.0~10.0 sec 30 A,B,C contact On delay time 0.0 sec X
I95
30A,B,C Off
delay
0.0~10.0 sec 30 A,B,C contact Off delay time 0.0 sec X
- These codes are for On, off delay time of multi functional transistor Digital output MO and Relay
Digital output 3 A,B,C.
- If the operation time of the contact is shorter than the delay time, operation is as shown below.
Internal
operation
On Delay time
Off Delay time
Real
Operation
Internal
Operation
On Delay time
Real
Operation
Off Delay time
