5-14
MAINTENANCE
SY95C Excavator OMM

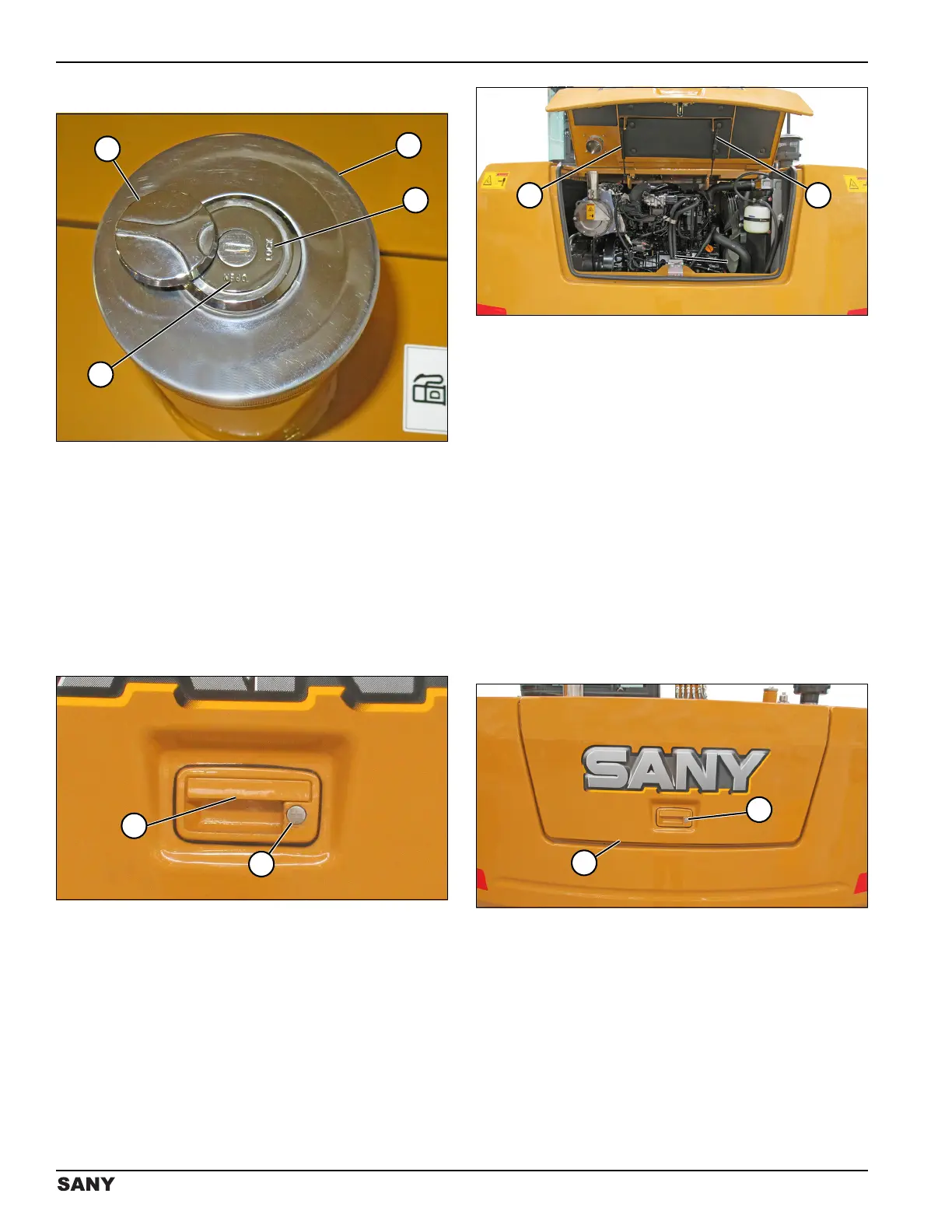

Closing the Filler Cap
0002825
Figure 5-5
1. Install the filler cap (2) onto the filler tube.
2. Insert the key into the key slot.
3. Turn the key from OPEN position (4)
counterclockwise until the key slot points to the
LOCK position (3). Remove the key.
4. Close the key slot shield (1).
Engine Hood
Unlocking/Opening the Engine Hood
0003981
Figure 5-6
1. Insert the key into the key slot (2).
NOTE: Insert the key all the way into the lock. The key
may break if turned before it is fully inserted.
2. Turn the key counterclockwise to unlock. Pull on the
latch (1) to open the engine hood.
0003983
Figure 5-7
3. Position the engine hood in the fully open position.
Two pneumatic cylinders (3) hold the engine hood
open. Opening the engine hood provides access to
the:
• Engine oil filter and dipstick
• Engine oil filler cap
• Engine fuel filter
• Coolant overflow tank
• Hydraulic pump
• Exhaust components
• Engine coolant pump and fan
• Other engine components
Closing/Locking the Engine Hood
0003982
Figure 5-8
1. Close the engine hood (1) until it latches.
2. Insert the key into the key slot (2) and turn the key
clockwise to lock.
3. Remove the key after locking.
