SANY SY95C - Boom Cylinder Rod End Pin; Bucket Linkage Pins; Bucket Cylinder Rod End Pin; Bucket Cylinder Base End Pin

5-44
MAINTENANCE
SY95C Excavator OMM
Boom Cylinder Rod End Pin
0004461

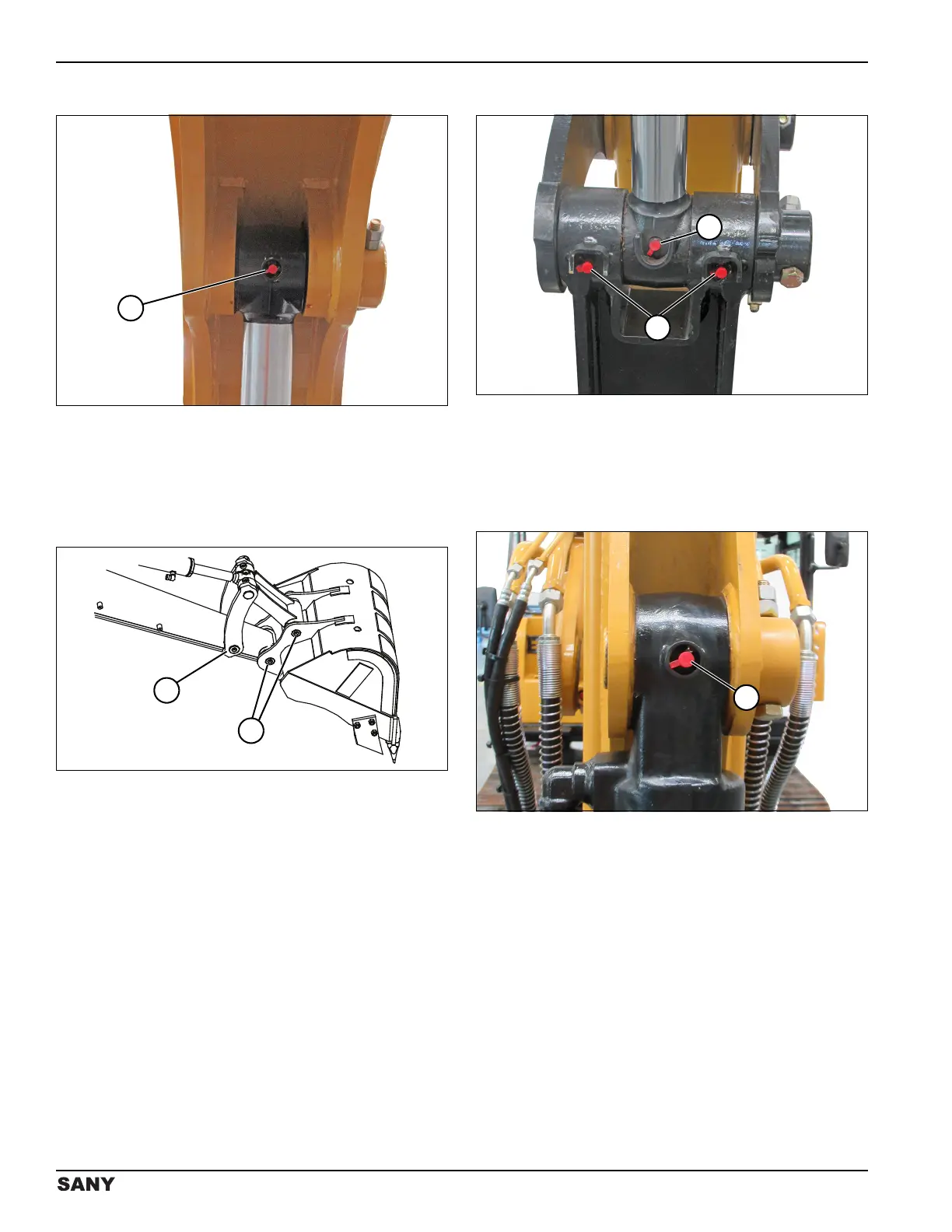

Figure 5-80
1. Remove the grease fitting cap (1).
2. Grease the boom cylinder rod end pin.
3. Install the grease fitting cap.
Bucket Linkage Pins
0003189
Figure 5-81
1. Remove the grease fitting caps.
2. Grease the bucket linkage pins (1).
3. Install the grease fitting caps.
Bucket Cylinder Rod End Pin
0004546
Figure 5-82
1. Remove the grease fitting caps (1).
2. Grease the bucket cylinder rod end pin.
3. Install the grease fitting caps.
Bucket Cylinder Base End Pin
0004547
Figure 5-83
1. Remove the grease fitting cap (1).
2. Grease the bucket cylinder base end pin.
3. Install the grease fitting cap.
