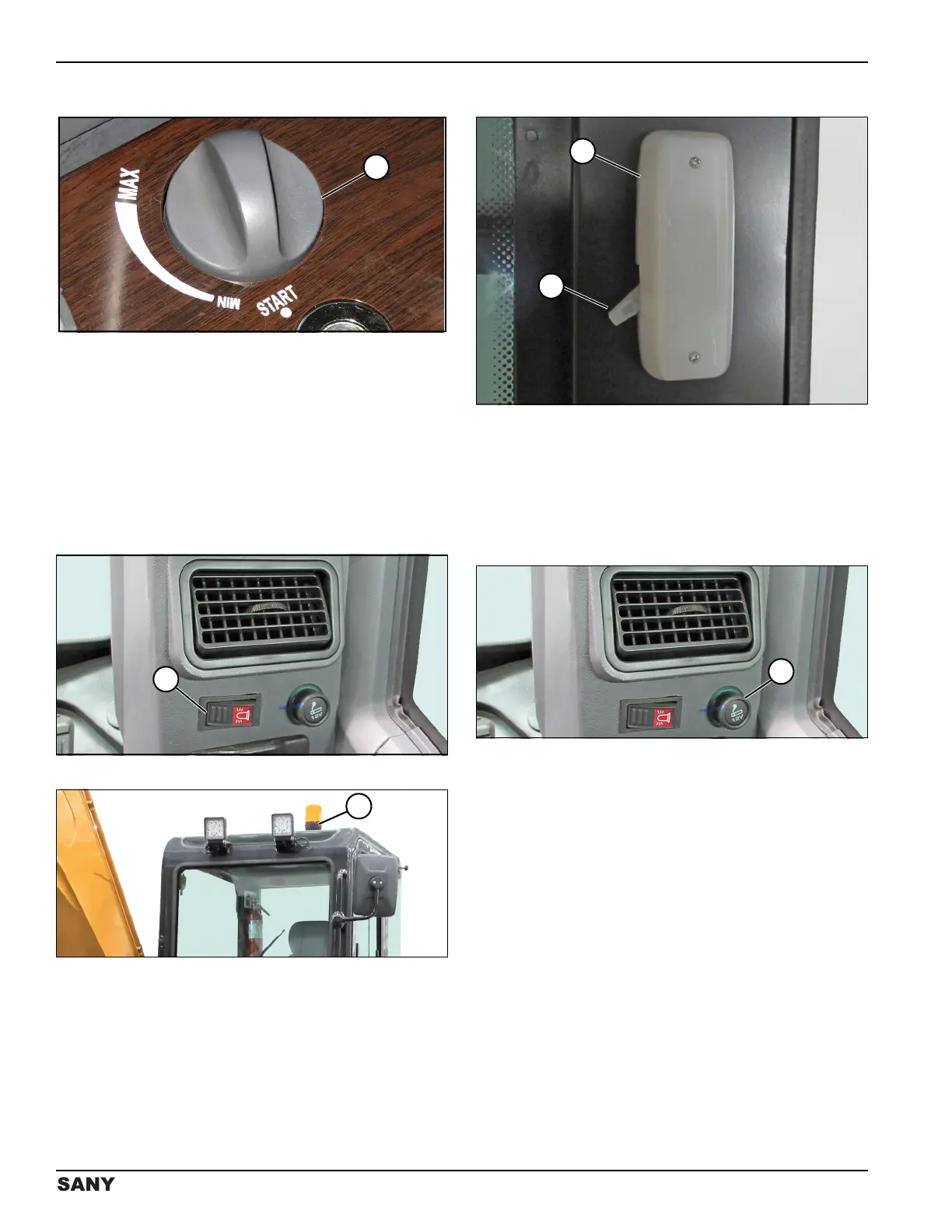

Throttle Control Dial
0002757
Figure 3-34
The throttle control dial (1) adjusts the engine speed and
output power. Turn the dial clockwise to increase engine
speed, and counterclockwise to decrease engine speed:
• MIN (low idle): Turn the throttle control dial fully
counterclockwise.
• MAX (high idle): Turn the throttle control dial fully
clockwise.
Travel Alarm Switch
0004470
Figure 3-35
0004477
Figure 3-36
The travel alarm switch (1) turns the audible alarm and
beacon light (2) on and off.
Cab Light
0002754
Figure 3-37
The cab light (1) is turned on and off by moving the
switch (2) up or down.
The cab light can be turned on only when the key switch
is in the ON position.
Cigarette Lighter (12V)
0004470
Figure 3-38
Press the cigarette lighter (1) in to activate the lighter.
The lighter will pop out when ready to be used.
With the lighter removed, the power outlet (12V) can be
used to charge or operate 12-volt electronic devices.
